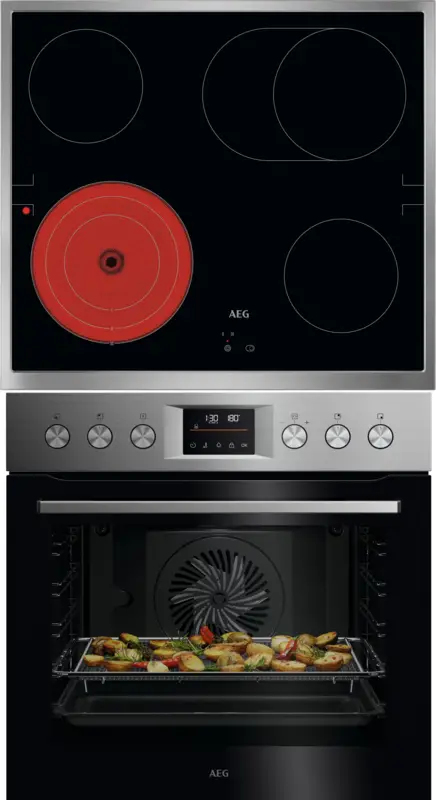

OU5PE40AM - TA64RA07XB

Model OU5PE40AM - TA64RA07XBPart no. PNC 940321509 + PNC 949493053EAN 7332543944613

97 specifications

Overview

Brand: AEG
Category: Cooking Appliance Set
Model: OU5PE40AM - TA64RA07XB
Part number: PNC 940321509 + PNC 949493053
EAN / UPC: 7332543944613
Also known as: AEG OU5PE40AM - TA64RA07XB cooking appliance set Ceramic hob Electric

97 specifications in 4 groups

Specification	Value

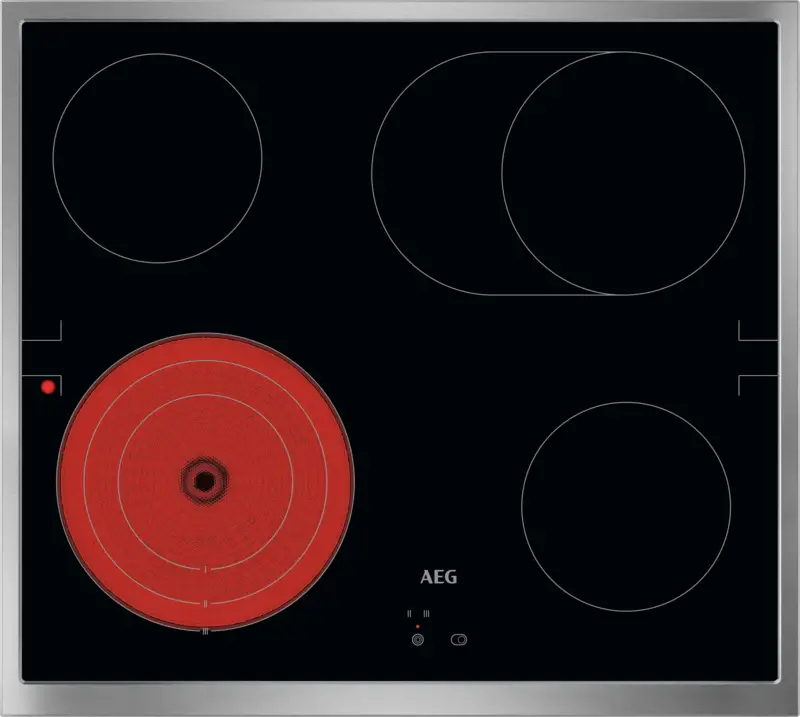

Hob type	Ceramic hob
Top surface type	Glass-ceramic
Hob colour	Black
Number of electric cooking zones	4 zone(s)
Number of simultaneously used cooking zones	4
Cooking zone 1 shape	Round
Cooking zone 1 position	Left front
Cooking zone 1 diameter	210 mm
Cooking zone 1 power	2300 W
Cooking zone 2 shape	Round
Cooking zone 2 position	Left rear
Cooking zone 2 diameter	145 mm
Cooking zone 2 power	1200 W
Cooking zone 3 shape	Round
Cooking zone 3 position	Right front
Cooking zone 3 diameter	145 mm
Cooking zone 3 power	1200 W
Cooking zone 4 shape	Round
Cooking zone 4 position	Right rear
Cooking zone 4 size (W x D)	170 x 265 mm
Cooking zone 4 power	1500 W
Cooking zone 4 boost	2400 W

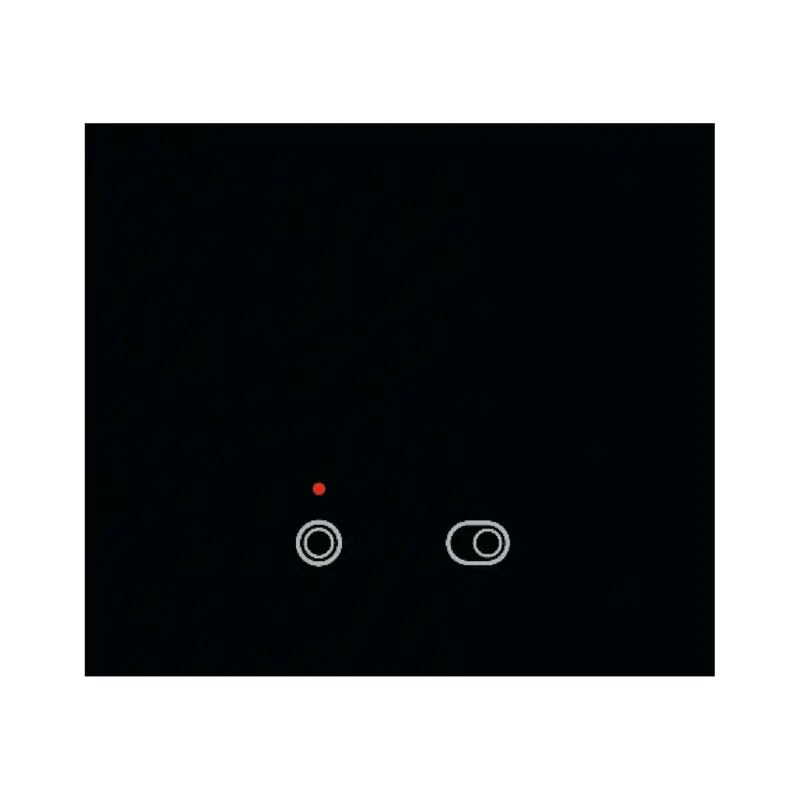

Hob control type	Touch
Hob control position	Top / Front
Residual heat indicator	Yes
Flexible cooking zone	Yes
Combi zone	Yes
Easy to clean	Yes
Frame form	Full trim
Frame colour	Stainless steel
Hob connected load (electric)	7100 W
Hob width	57.6 cm
Hob depth	51.6 cm
Hob height	4.3 cm
Hob weight	7.16 kg
Hob installation compartment width	56 cm
Hob installation compartment depth	49 cm
Hob installation compartment height	3.8 cm
Hob package width	67.8 cm
Hob package depth	60 cm
Hob package height	11.8 cm
Hob package weight	7.96 kg

Specification	Value

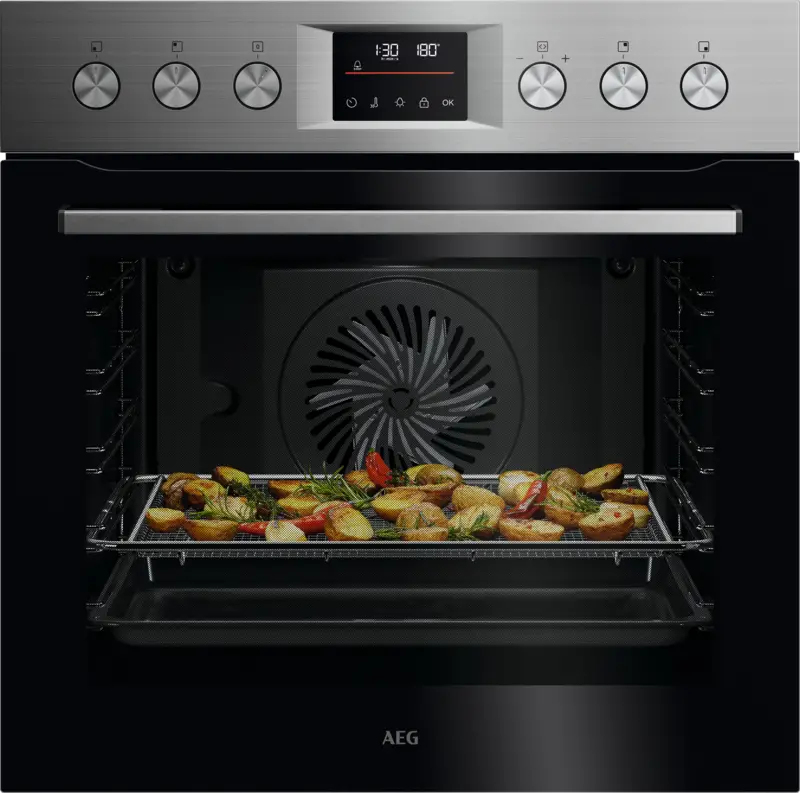

Oven type	Electric
Oven net capacity	71 L
Oven colour	Stainless steel/Black
Oven control type	Rotary, Touch
Retractable knobs	Yes
Oven display	Yes
Oven display type	LED
Integrated clock	Yes
Clock type	Electronic
Oven auto power off	Yes
Timer	Yes
Timer type	Digital
Self-cleaning	Yes
Cleaning type	Pyrolytic
Temperature (min)	30 °C
Temperature (max)	300 °C
Door hinge	Down
Oven door opening	Drop down opening
Cool door	Yes
Interior light	Yes
Lamp type	Halogen
Lamps quantity	1 lamp(s)
Bulb power	40 W
Child lock	Yes
Energy efficiency class (oven)	A+
Energy efficiency scale (oven)	A+++ to D
Energy consumption (forced convection)	0.69 kWh
Energy consumption (conventional)	1.09 kWh
Connected load	10850 W
Oven input voltage	230 - 400 V
Oven current	16 A
Oven power	3500 W
Top and bottom heating	Yes
Bottom heating	Yes
Fast heat	Yes
Grill	Yes
Grill power	2300 W
Hot air grilling	Yes
Convection cooking	Yes
Conventional cooking	Yes
Defrost function	Yes
Air frying function	Yes
Number of auto cooking programs	45
Cooling fan	Yes
Interior material	Enamel
Oven width	59.5 cm
Oven depth	56.7 cm
Oven height	59.4 cm
Oven weight	33.5 kg
Oven installation compartment width	56 cm
Oven installation compartment depth	55 cm
Oven installation compartment height	60 cm
Oven package weight	34.5 kg

Specification	Value
Country of origin	Germany

Specification	Value
Baking tray	Yes
