OU5AE20SM + HE604062XB

Model OU5AE20SM + HE604062XBPart no. 801418969EAN 7332543938551

87 specifications

Overview

Brand: AEG
Category: Cooking Appliance Set
Model: OU5AE20SM + HE604062XB
Part number: 801418969
EAN / UPC: 7332543938551
Also known as: AEG OU5AE20SM + HE604062XB cooking appliance set Ceramic hob Electric

87 specifications in 5 groups

Specification	Value

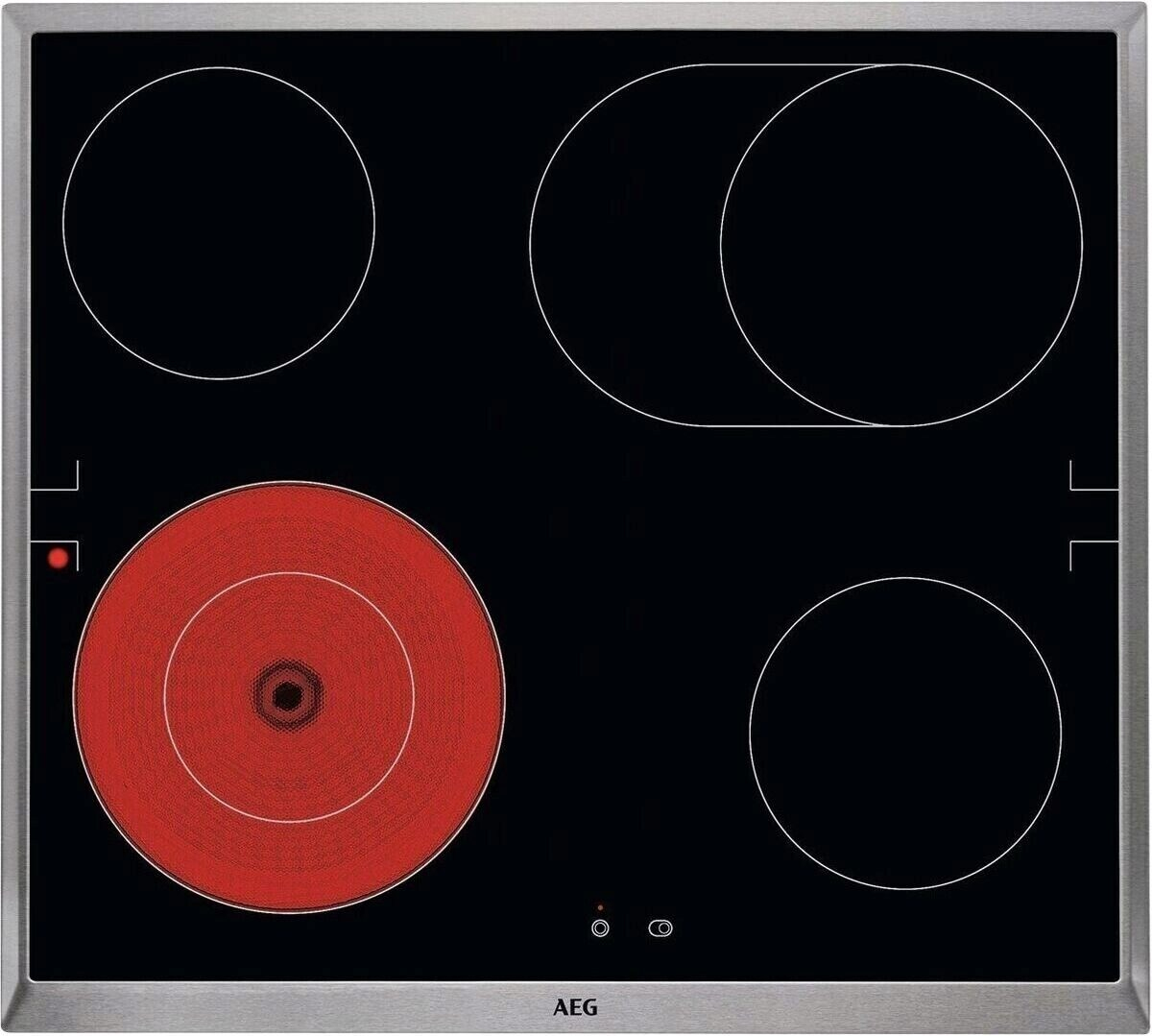

Hob type	Ceramic hob
Number of cooking zones	4 zone(s)
Top surface type	Glass-ceramic
Hob colour	Black
Number of electric cooking zones	4 zone(s)
Cooking zone 1 type	Simmer
Cooking zone 1 shape	Round
Cooking zone 1 position	Left front
Cooking zone 1 size (W x D)	120 x 210 mm
Cooking zone 1 power	750 W
Cooking zone 1 boost	2200 W
Cooking zone 2 type	Medium
Cooking zone 2 shape	Round
Cooking zone 2 position	Left rear
Cooking zone 2 diameter	145 mm
Cooking zone 2 power	1200 W
Cooking zone 3 type	Small
Cooking zone 3 shape	Round
Cooking zone 3 position	Right front
Cooking zone 3 diameter	145 mm
Cooking zone 3 power	1200 W
Cooking zone 4 type	Dual zone
Cooking zone 4 shape	Round
Cooking zone 4 position	Right rear
Cooking zone 4 size (W x D)	170 x 265 mm
Cooking zone 4 power	1500 W
Cooking zone 4 boost	2400 W
Hob control type	Touch
Residual heat indicator	Yes
Frame form	Full trim
Frame colour	Stainless steel
Hob connected load (electric)	7000 W
Hob input voltage	220 - 240 V
Hob width	57.6 cm
Hob depth	51.6 cm
Hob height	3.8 cm
Hob weight	7.16 kg
Hob installation compartment width	56 cm
Hob installation compartment depth	49 cm
Hob installation compartment height	3.8 cm
Hob package width	67.8 cm
Hob package depth	60 cm
Hob package height	11.8 cm
Hob package weight	8.16 kg

Specification	Value

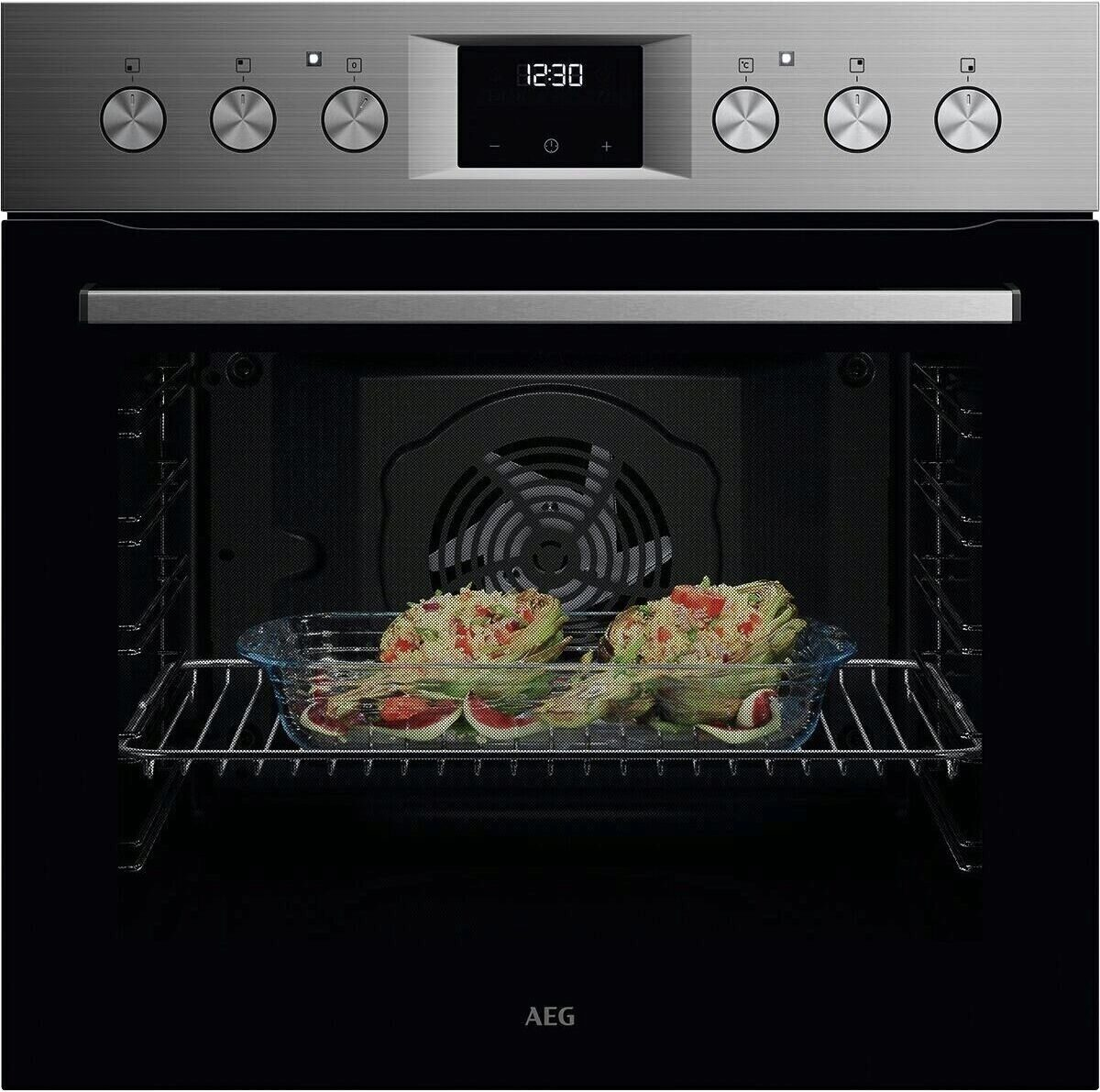

Oven type	Electric
Oven net capacity	72 L
Oven colour	Stainless steel
Oven control type	Rotary, Touch
Oven display	Yes
Integrated clock	Yes
Clock type	Electronic
Timer	Yes
Timer type	Digital
Self-cleaning	Yes
Cleaning type	Pyrolytic
Cleaning technology	AquaClean
Temperature (min)	30 °C
Temperature (max)	300 °C
Door hinge	Down
Interior light	Yes
Lamp type	Halogen
Lamps quantity	1 lamp(s)
Bulb power	40 W
Energy efficiency class (oven)	A+
Energy efficiency scale (oven)	A+++ to D
Energy consumption (forced convection)	0.69 kWh
Energy consumption (conventional)	0.93 kWh
Connected load	11090 W
Oven input voltage	230 V
Oven power	3480 W
Top and bottom heating	Yes
Bottom heating	Yes
Grill	Yes
Grill power	2300 W
Defrost function	Yes
Interior material	Enamel
Oven width	59.4 cm
Oven depth	56.8 cm
Oven height	59.4 cm
Oven weight	30.5 kg
Oven installation compartment width	56 cm
Oven installation compartment depth	55 cm
Oven installation compartment height	60 cm
Oven package weight	31.5 kg
