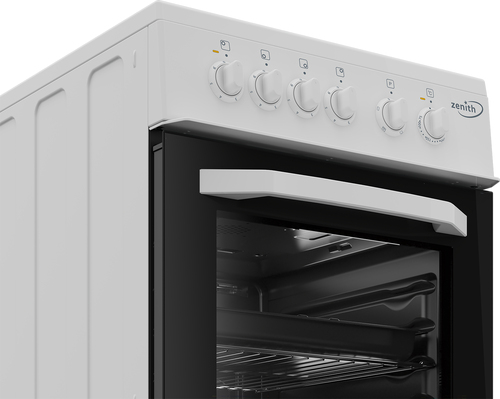

ZE503W 50cm Single Oven Electric Cooker
Model ZE503WEAN 8690842389108
155 specifications
- Energy classA
- TypeFreestanding cooker
- Weight38 kg
- ColourWhite
- Hob typeSealed plate
- Oven sizeMedium
Overview
- Energy class
- A
- Type
- Freestanding cooker
- Weight
- 38 kg
- Colour
- White
- Hob type
- Sealed plate
- Oven size
- Medium
- Brand
- Zenith
- Category
- Cooker
- Model
- ZE503W
- Part number
- ZE503W
- EAN / UPC
- 8690842389108
- Also known as
- Zenith ZE503W 50cm Single Oven Electric Cooker
Specifications
155 specifications in 13 groups
Design
| Specification | Value |
|---|---|
| Product type | Freestanding cooker |
| Product colour | White |
| Handle colour | White |
| Control type | Rotary |
| Control panel material | Metal |
| Control position | Front |
| Built-in display | No |
| Internal coating | Enamel |
| Certification | EN 60335-2-6, PEN30 |
| Microwave + grill cooking | No |
| Cooker type | Single oven with integrated grill |
Hob
| Specification | Value |
|---|---|
| Hob type | Sealed plate |
| Hob power source | Electric |
| Number of cooking zones | 4 zone(s) |
| Number of electric cooking zones | 4 zone(s) |
| Electronic ignition | No |
| Cooking zone 1 position | Left front |
| Cooking zone 1 power source | Electric |
| Cooking zone 1 type | Large |
| Cooking zone 1 power | 2000 W |
| Cooking zone 1 diameter | 180 mm |
| Cooking zone 2 position | Left rear |
| Cooking zone 2 power source | Electric |
| Cooking zone 2 type | Small |
| Cooking zone 2 power | 1000 W |
| Cooking zone 2 diameter | 145 mm |
| Cooking zone 3 position | Right front |
| Cooking zone 3 power source | Electric |
| Cooking zone 3 type | Medium |
| Cooking zone 3 power | 1500 W |
| Cooking zone 3 diameter | 145 mm |
| Cooking zone 4 position | Right rear |
| Cooking zone 4 power source | Electric |
| Cooking zone 4 type | Medium |
| Cooking zone 4 power | 1500 W |
| Cooking zone 4 diameter | 180 mm |
| Cooking zone 5 power source | Electric |
| Adjustable heat settings | Yes |
| Hob on indicator | Yes |
| Residual heat indicator | No |
| Wok burner | No |
Oven
| Specification | Value |
|---|---|
| Oven size | Medium |
| Number of ovens | 1 |
| Oven power source | Electric |
| Oven position | Bottom |
| Oven net capacity | 60 L |
| Grill | Yes |
| Grill type | Variable rate grill |
| Grill power | 1600 W |
| ECO mode | No |
| Full surface grill | Yes |
| Grill with fan | No |
| Half grill | No |
| Microwave cooking | No |
| Oven thermostat range | 80 - 240 °C |
| Oven interior coating | Enamel |
| Oven door opening | Drop down opening |
| Oven door material | Glass |
| Number of glass door panels | 2 |
| Cool door | No |
| Door cooling fan | No |
| Removable door glass | Yes |
| Number of shelf positions | 5 |
| Number of shelves | 1 shelves |
| Removable shelf runners | No |
| Telescopic shelves | No |
| Interior light | No |
| Number of functions | 4 |
| 3D hot air | No |
| Bottom heating | Yes |
| Bottom heating & fan | No |
| Convection cooking | No |
| Conventional cooking | Yes |
| Steam cooking | No |
| Slow cooking | No |
| Oven keep warm function | No |
| Pizza making function | No |
| Defrost function | No |
| Self-cleaning | No |
| Catalytic liners on side walls | No |
| Cooling fan | No |
| Door colour | Black |
| Open door grilling | Yes |
| Oven cooking method | Static |
| Static cooking | Yes |
| Easy to clean (oven) | Yes |
| Catalytic back wall | No |
| Catalytic liners on back wall | No |
| Catalytic side wall | No |
| Internal coating colour | Black |
Oven 2
| Specification | Value |
|---|---|
| Oven 2 grill | No |
| Oven 2 half grill | No |
| Oven 2 number of shelf positions | 0 |
| Oven 2 telescopic shelves | No |
| Oven 2 interior light | No |
| Oven 2 bottom heating | No |
| Oven 2 catalytic liners on side walls | No |
| Oven 2 open door grilling | Yes |
| Oven 2 static cooking | No |
Ergonomics
| Specification | Value |
|---|---|
| Adjustable feet | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A |
| Connected load (electric) | 7900 W |
| AC input voltage | 220-240 V |
| AC input frequency | 50 Hz |
| Energy efficiency index (EEI) | 94.8 |
| Energy efficiency scale | A++ to D |
| Energy consumption (conventional) | 0.76 kWh |
| Energy consumption (forced convection) | 0 kWh |
| Energy efficiency class (legacy scale) | A |
| Power plug type | No plug |
| Current | 25 A |
| Minimum fuse protection | 25 A |
| Recommended for hardwiring | No |
Packaging content
| Specification | Value |
|---|---|
| Grill plate set | Yes |
| Grill plate handle(s) | Yes |
| Grill plate depth | 27.5 cm |
| Grill plate height | 4 cm |
| Grill plate width | 35 cm |
| Pizza tray | No |
| Glass pan included | No |
| Meat probe included | No |
| Small tray set included | Yes |
| Standard tray set included | No |
| Telescopic rail included | No |
| Turnspit included | No |
Features
| Specification | Value |
|---|---|
| Static cooking+ fan (fan assist) | No |
| Top heating + Convection (single mode) | No |
| Eco Pyro | No |
| Pyro | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 500 mm |
| Depth | 600 mm |
| Height | 900 mm |
| Weight | 38 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 560 mm |
| Package depth | 700 mm |
| Package height | 1025 mm |
| Package weight | 41.7 kg |
Logistics data
| Specification | Value |
|---|---|
| Metal packaging weight | 3.6 g |
| Paper packaging weight | 815 g |
| Plastic packaging weight | 186.162 g |
| Wood packaging weight | 1.92 kg |
| Cardboard packaging weight | 965 g |
| Harmonized System (HS) code | 85166010 |
| Package tare weight | 3.65 kg |
| Products per intermodal container (20ft) | 136 pc(s) |
| Products per intermodal container (40ft) | 136 pc(s) |
| Straphor packaging weight | 772.31 g |
| Total packaging weight | 3.65 kg |
| Pallets per intermodal container (20ft) | 136 pc(s) |
| Pallets per intermodal container (40ft, HC) | 136 pc(s) |
| Maximum stacked pallets per intermodal container (20ft) | 5 pc(s) |
| Maximum stacked products per intermodal container (20ft) | 5 |
Other features
| Specification | Value |
|---|---|
| Oven included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Grill pan handle | Yes |
