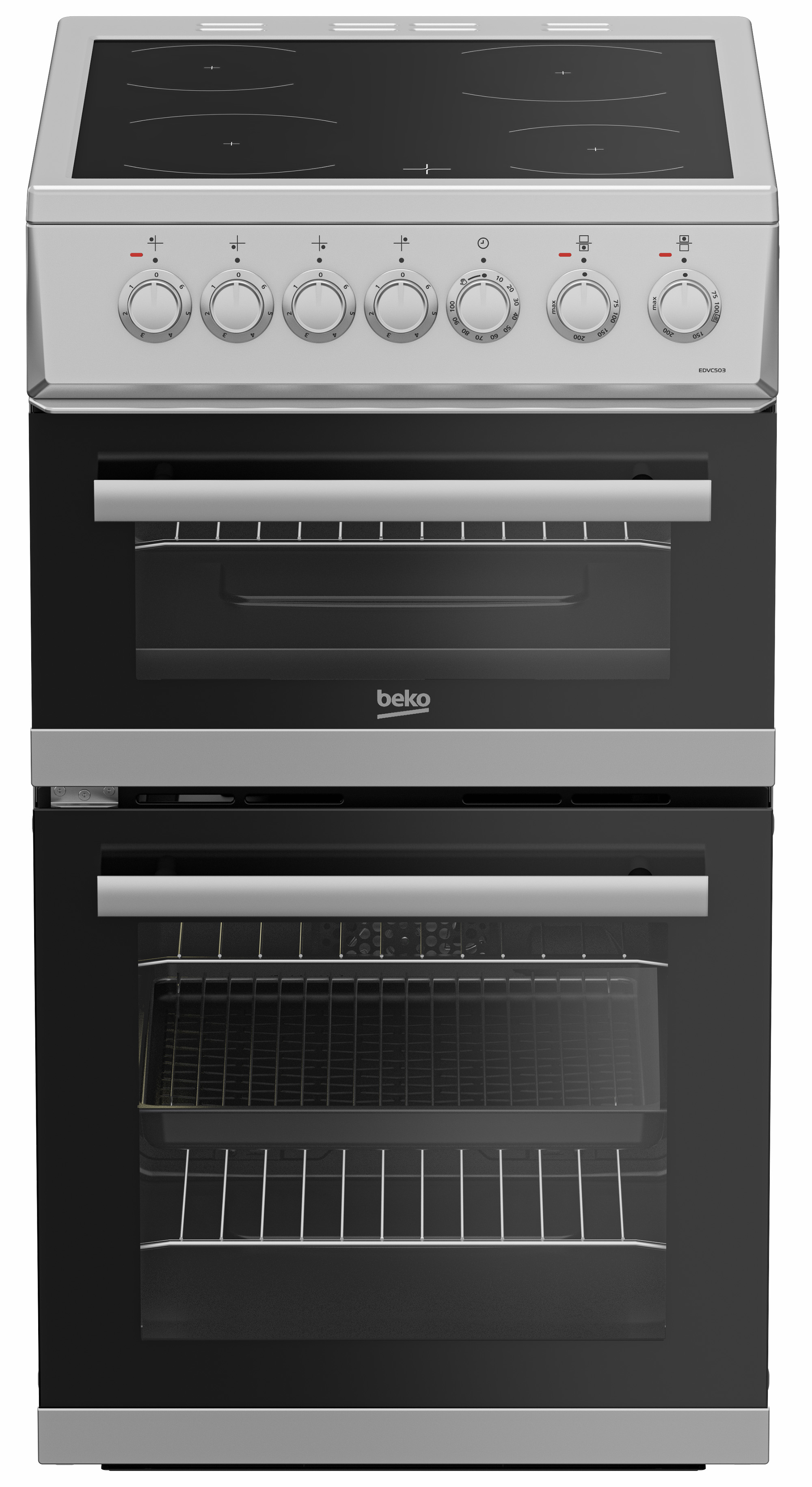

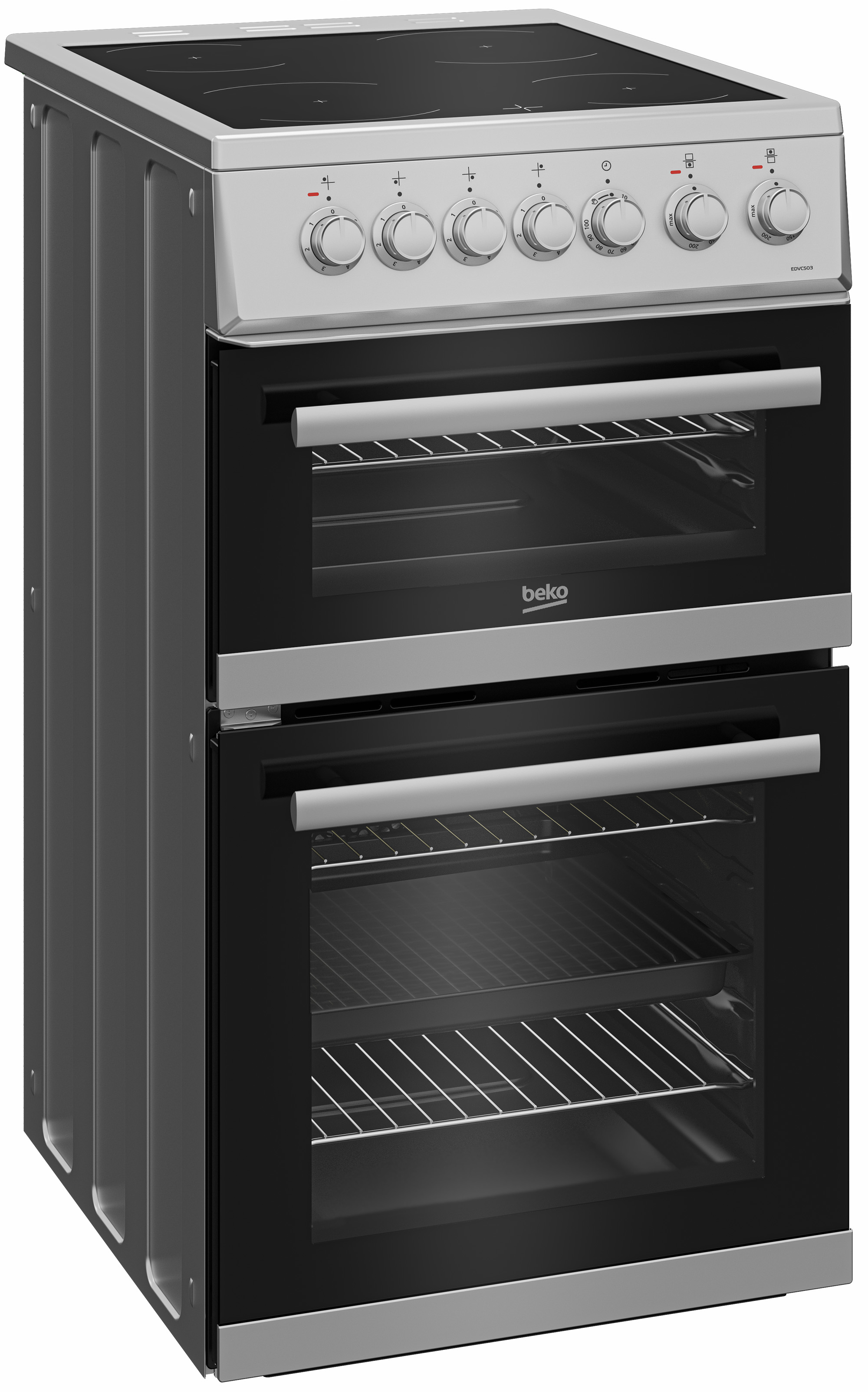

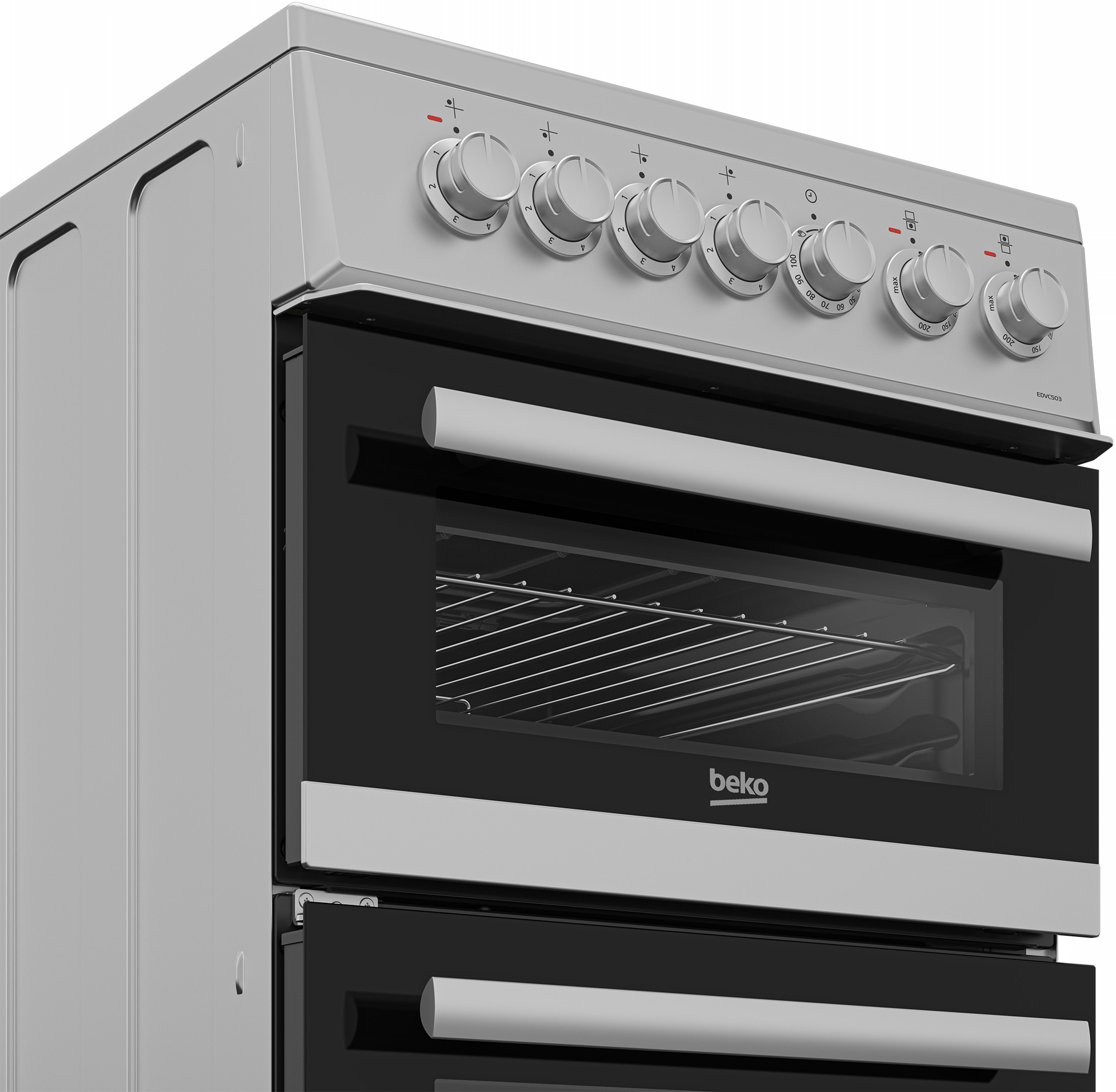

EDVC503S 50cm Double Oven Electric Cooker
Model EDVC503SEAN 8690842531361
179 specifications
- Energy classA
- TypeFreestanding cooker
- Weight46.7 kg
- ColourSilver
- Hob typeCeramic hob
- Oven sizeMedium
Overview
- Energy class
- A
- Type
- Freestanding cooker
- Weight
- 46.7 kg
- Colour
- Silver
- Hob type
- Ceramic hob
- Oven size
- Medium
- Brand
- Beko
- Category
- Cooker
- Model
- EDVC503S
- Part number
- EDVC503S
- EAN / UPC
- 8690842531361
- Also known as
- Beko EDVC503S 50cm Double Oven Electric Cooker
Specifications
179 specifications in 14 groups
Design
| Specification | Value |
|---|---|
| Product type | Freestanding cooker |
| Product colour | Silver |
| Control type | Rotary |
| Control panel material | Metal |
| Control position | Front |
| Built-in display | No |
| Internal coating | Enamel |
| Certification | EN 60335-2-6 |
| Microwave + combi cooking | No |
| Microwave + grill cooking | No |

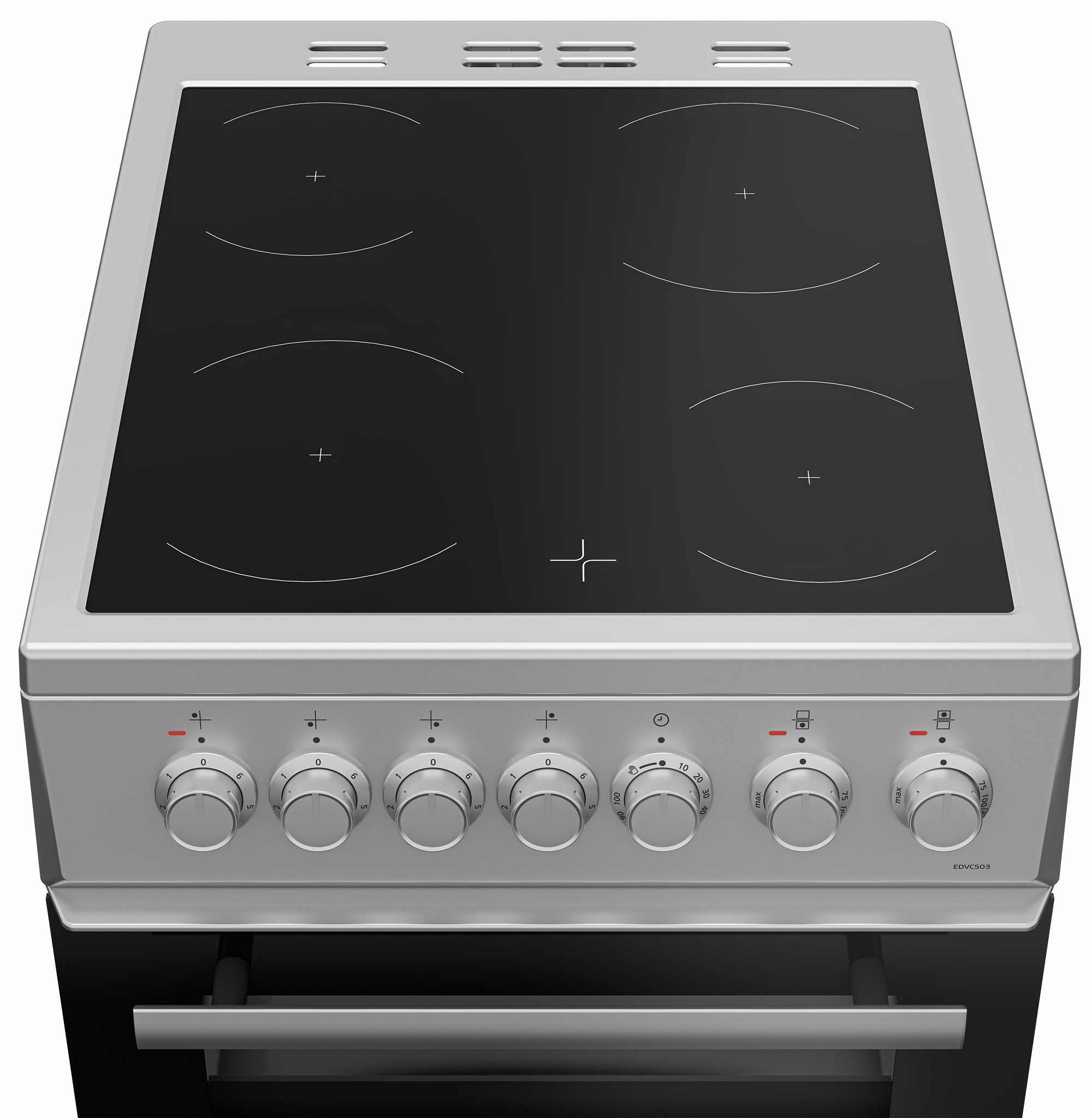

Hob
| Specification | Value |
|---|---|
| Hob type | Ceramic hob |
| Hob power source | Electric |
| Top surface type | Ceramic |
| Number of cooking zones | 4 zone(s) |
| Number of gas cooking zones | 0 zone(s) |
| Number of electric cooking zones | 4 zone(s) |
| Cooking zone 1 position | Left front |
| Cooking zone 1 power source | Electric |
| Cooking zone 1 type | Medium |
| Cooking zone 1 power | 1700 W |
| Cooking zone 1 diameter | 180 mm |
| Cooking zone 2 position | Left rear |
| Cooking zone 2 power source | Electric |
| Cooking zone 2 type | Small |
| Cooking zone 2 power | 1200 W |
| Cooking zone 2 diameter | 140 mm |
| Cooking zone 3 position | Right front |
| Cooking zone 3 power source | Electric |
| Cooking zone 3 type | Simmer |
| Cooking zone 3 power | 1200 W |
| Cooking zone 4 position | Right rear |
| Cooking zone 4 power source | Electric |
| Cooking zone 4 type | Medium |
| Cooking zone 4 power | 1700 W |
| Cooking zone 4 diameter | 180 mm |
| Cooking zone 5 power source | Electric |
| Adjustable heat settings | Yes |
| Hob on indicator | Yes |
| Wok burner | No |

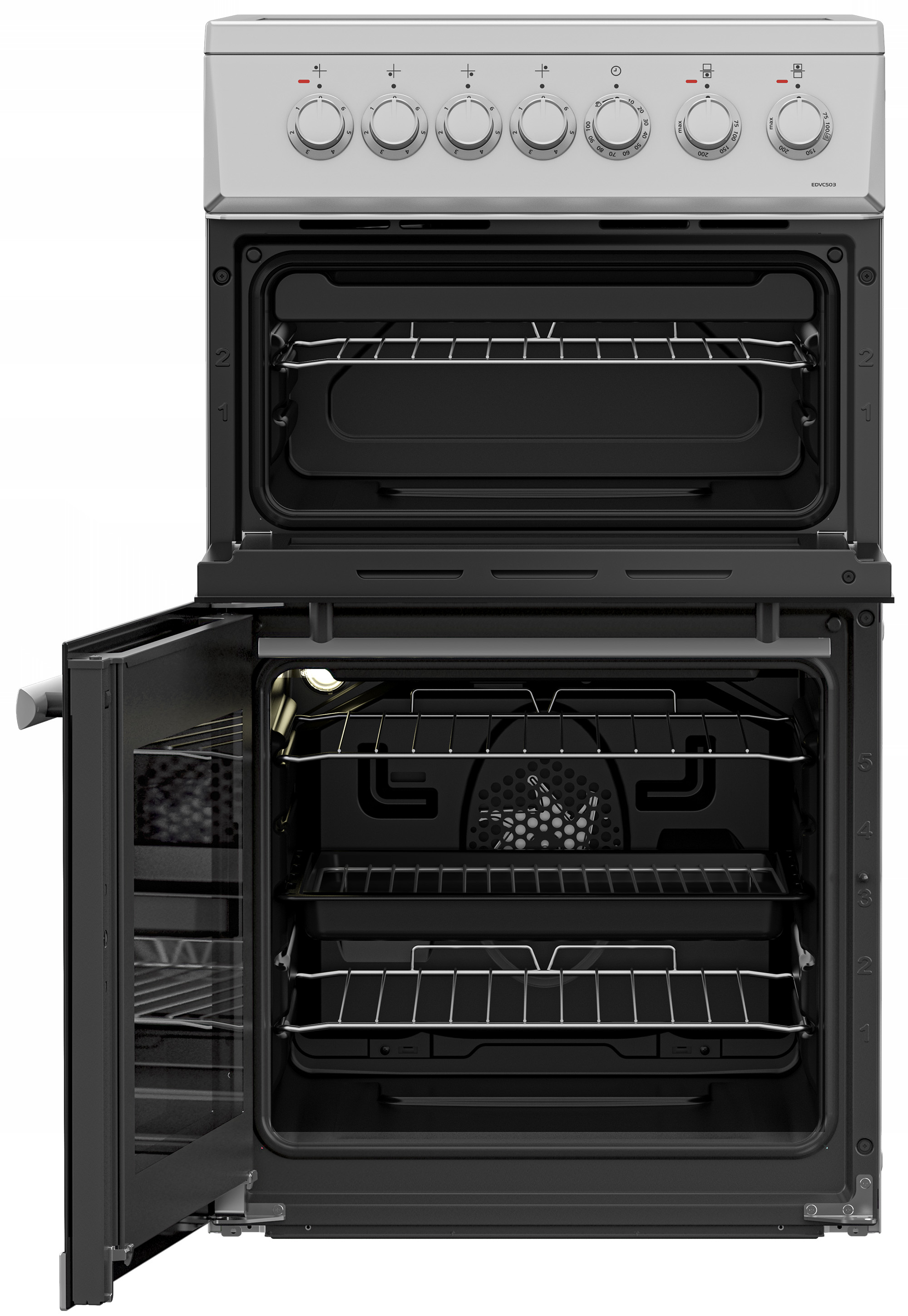

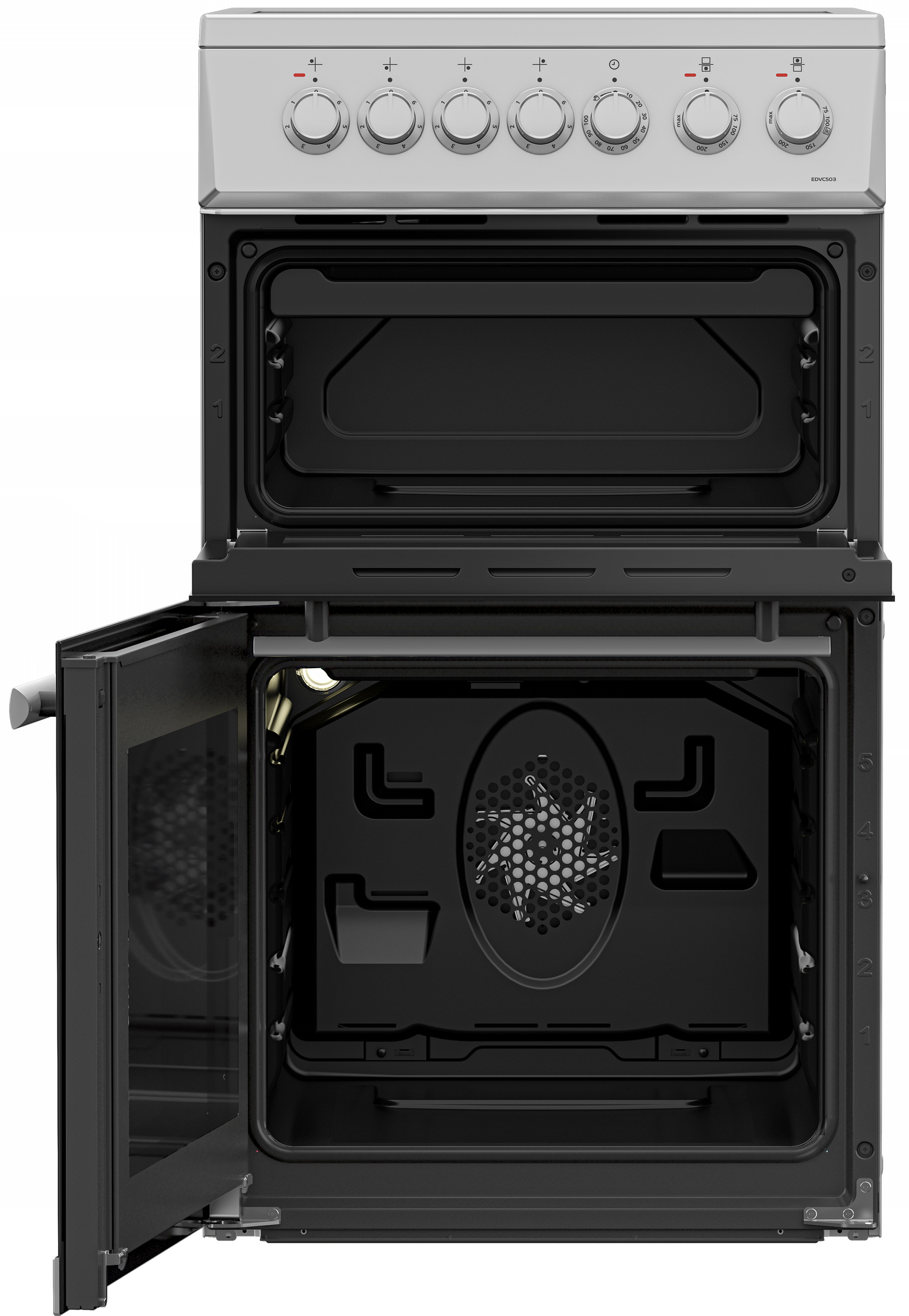

Oven
| Specification | Value |
|---|---|
| Oven size | Medium |
| Number of ovens | 2 |
| Oven power source | Electric |
| Oven position | Bottom |
| Oven net capacity | 58 L |
| Grill | No |
| ECO mode | No |
| Fan grill function | No |
| Grill with fan | No |
| Half grill | No |
| Microwave cooking | No |
| Oven thermostat range | 80 - 240 °C |
| Oven interior coating | Enamel |
| Oven door opening | Side opening |
| Oven door material | Glass/metal |
| Number of glass door panels | 2 |
| Door cooling fan | No |
| Removable door glass | Yes |
| Viewing window | Yes |
| Number of shelf positions | 5 |
| Number of shelves | 2 shelves |
| Removable shelf runners | No |
| Telescopic shelves | No |
| Interior light | Yes |
| 3D hot air | No |
| Bottom heating | No |
| Convection cooking | Yes |
| Convection power | 1800 W |
| Steam cooking | No |
| Oven keep warm function | No |
| Pizza making function | No |
| Defrost function | No |
| Self-cleaning | No |
| Bottom heating power | 1000 W |
| Catalytic liners on side walls | No |
| Cooling fan | No |
| Open door grilling | Yes |
| Oven cooking method | Static |
| Static cooking | Yes |
| Tilting grill | No |
| Top heating power | 500 W |
| Oven shelf stoppers | No |
| Easy to clean (oven) | Yes |
| Catalytic liners on back wall | No |
| Internal coating colour | Black |
Oven 2
| Specification | Value |
|---|---|
| Oven 2 size | Small |
| Oven 2 power source | Electric |
| Oven 2 position | Top |
| Oven 2 net capacity | 31 L |
| Oven 2 grill | No |
| Oven 2 grill type | Variable rate grill |
| Oven 2 full surface grill | Yes |
| Oven 2 grill power | 2000 W |
| Oven 2 thermostat range | 80 - 240 °C |
| Oven 2 door opening | Drop down opening |
| Oven 2 door material | Glass/metal |
| Oven 2 number of glass door panels | 2 |
| Oven 2 removable door glass | Yes |
| Oven 2 viewing window | Yes |
| Oven 2 number of shelf positions | 2 |
| Oven 2 number of shelves | 1 shelves |
| Oven 2 telescopic shelves | No |
| Oven 2 interior light | No |
| Oven 2 top heating | Yes |
| Oven 2 top heating power | 500 W |
| Oven 2 bottom heating | Yes |
| Oven 2 bottom heating power | 1000 W |
| Oven 2 conventional cooking | Yes |
| Oven 2 catalytic liners on side walls | No |
| Oven 2 internal coating | Enamel |
| Oven 2 internal coating colour | Black |
| Oven 2 open door grilling | Yes |
| Oven 2 removable shelf runners | No |
| Oven 2 tilting grill | No |
| Oven 2 shelf stoppers | No |
| Oven 2 catalytic liners on back wall | No |
Ergonomics
| Specification | Value |
|---|---|
| Hob timer | Yes |
| Hob timer type | Mechanical |
| Oven timer | Yes |
| Oven timer type | Mechanical |
| Timer type | Mechanical |
| Adjustable feet | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A |
| Oven 2 energy efficiency class | A |
| Connected load (electric) | 9400 W |
| AC input voltage | 220-240 V |
| AC input frequency | 50 Hz |
| Energy efficiency scale | A+++ to D |
| Energy consumption (conventional) | 0.84 kWh |
| Energy consumption (forced convection) | 0.84 kWh |
| Oven 2 energy consumption (conventional) | 0.65 kWh |
| Energy efficiency class (legacy scale) | A |
| Minimum fuse protection | 32 A |
| Oven 2 energy efficiency class (legacy scale) | A |
| Recommended for hardwiring | Yes |
Packaging content
| Specification | Value |
|---|---|
| Grill plate | Yes |
| Grill plate set | Yes |
| Grill plate handle(s) | Yes |
| Grill plate depth | 27.5 cm |
| Grill plate height | 4 cm |
| Grill plate width | 35 cm |
| Pizza tray | No |
| Glass pan included | No |
| Grill grid included | Yes |
| Lava stone included | No |
| Meat probe included | No |
| Telescopic rail included | No |
| Turnspit included | No |
Brand-specific features
| Specification | Value |
|---|---|
| Beko technologies (cooking) | Rapidlite Zones |
Features
| Specification | Value |
|---|---|
| Static cooking+ fan (fan assist) | No |
| Eco Pyro | No |
| Pyro | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 500 mm |
| Depth | 600 mm |
| Height | 900 mm |
| Weight | 46.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 560 mm |
| Package depth | 700 mm |
| Package height | 1025 mm |
| Package weight | 50.3 kg |
Logistics data
| Specification | Value |
|---|---|
| Expanded Polystyrene (EPS) packaging weight | 623.7 g |
| Metal packaging weight | 12 g |
| Paper packaging weight | 965 g |
| Plastic packaging weight | 169.66 g |
| Wood packaging weight | 2.06 kg |
| Cardboard packaging weight | 965 g |
| Commodity code | 85166010 |
| Harmonized System (HS) code | 85166010 |
| Package tare weight | 3.83 kg |
| Products per intermodal container (20ft) | 136 pc(s) |
| Products per intermodal container (40ft) | 136 pc(s) |
| Straphor packaging weight | 623.7 g |
| Total packaging weight | 3.83 kg |
| Pallets per intermodal container (20ft) | 136 pc(s) |
| Pallets per intermodal container (40ft, HC) | 136 pc(s) |
| Maximum stacked pallets per intermodal container (20ft) | 5 pc(s) |
| Maximum stacked products per intermodal container (20ft) | 5 |
Other features
| Specification | Value |
|---|---|
| Oven included | Yes |
| Timer | Mechanical Minute Minder |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
