Product comparison · 2 wireless routers

Intellinet 524445 wireless router Fast Ethernet Black, Grey vs Intellinet 524797 wireless router Fast Ethernet Grey

Add a product
  • 39specifications compared
  • 17differ
  • 22identical
  • 38known for one product only

Key differences

  • WLAN data transfer rate (max)
    • 150 Mbit/s
    • 300 Mbit/s
  • Product colour
    • Black, Grey
    • Grey
  • LED indicators
    • Yes
    • LAN, Status, WLAN, Yes
  • Certification
    • FCC Class B, CE Mark, RoHS
    • FCC, CE, RoHS
  • Processor model
    • Ralink RT3050
    • Realtek RTL8192SU
  • Flash memory
    • 4 MB
    • 2 MB
  • Power consumption (typical)
    • 3.25 W
    • 12 W
  • Power over Ethernet (PoE)
    • Yes
    • No

Side by side

Differences highlightedShow differences only
77 specifications
A

Intellinet

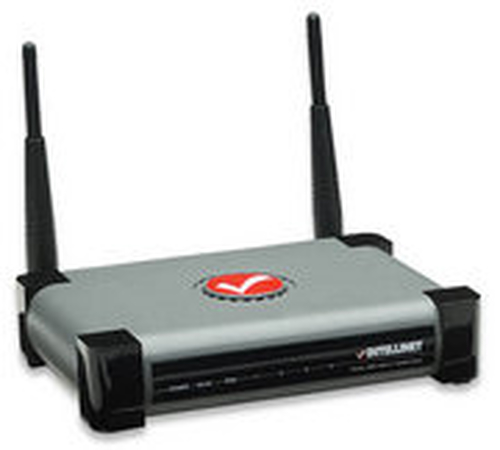

524445 wireless router Fast Ethernet Black, Grey

Model 524445

View product
B

Intellinet

524797 wireless router Fast Ethernet Grey

Model 524797

View product
WAN connectionidentical
DSL WANKnown for oneYes
Ethernet WANKnown for oneYes
Wireless LAN features1 differ
WLAN data transfer rate (max)Differs150 Mbit/s300 Mbit/s
Channels quantityKnown for one14 channels
Network1 differ
Ethernet LANYesYes
Ethernet LAN interface typeFast EthernetFast Ethernet
Ethernet LAN data rates10,100 Mbit/s10,100 Mbit/s
Networking standardsDiffersIEEE 802.11b, IEEE 802.11g, IEEE 802.1D, IEEE 802.3, IEEE 802.3uIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Full duplexKnown for oneYes
VPN supportKnown for onePPTP, L2TP, IPsec
Cabling technologyKnown for one10/100Base-T(X)
Receiver sensitivityKnown for one11n (150 Mbps) MCS7: 20 MHz: -72 dBm; 40MHz: -70 dBm 11g (54 Mbps) OFDM: -76 dBm 11b (11 Mbps) CCK: -91 dBm
DSL featuresidentical
ADSLKnown for oneYes
DSL specificationKnown for oneG.992.1, G.992.2, G.992.3, G.992.4, G.992.5
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports44
RJ-11 ports quantityKnown for one1
DC-in jackYesYes
Management featuresidentical
Web-based managementYesYes
Quality of Service (QoS) supportYesYes
Security1 differ
Security algorithmsDiffers128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA-AES, WPA-TKIP, WPA2128-bit WEP, 256-bit WEP, WPA, WPA-AES, WPA2
DoS attack preventionKnown for oneYes
FilteringYesYes
MAC address filteringYesYes
URL filteringKnown for oneYes
System event logKnown for oneYes
DMZ supportYesYes
NAT functionalityKnown for oneYes
Protocolsidentical
DHCP clientYesYes
DHCP serverYesYes
Universal Plug and Play (UPnP)YesYes
Supported network protocolsKnown for oneCSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DHCP, DNS
Design2 differ
Product colourDiffersBlack, GreyGrey
Indication lightYesYes
LED indicatorsDiffersYesLAN, Status, WLAN, Yes
Packaging contentidentical
Cables includedKnown for oneLAN (RJ-45)
AC adapter includedKnown for oneYes
ManualYesYes
Certificates1 differ
CertificationDiffersFCC Class B, CE Mark, RoHSFCC, CE, RoHS
Antennaidentical
Antenna gain level (max)3 dBi3 dBi
Antennas quantityKnown for one2
Features2 differ
Built-in processorYesYes
Processor modelDiffersRalink RT3050Realtek RTL8192SU
Internal memoryKnown for one16 MB
Flash memoryDiffers4 MB2 MB
Plug and PlayKnown for oneYes
Power2 differ
Power consumption (typical)Differs3.25 W12 W
Power over Ethernet (PoE)DiffersYesNo
Operational conditions1 differ
Operating relative humidity (H-H)10 - 90%10 - 90%
Operating temperature (T-T)0 - 40 °C0 - 40 °C
Storage temperature (T-T)Differs-20 - 60 °C0 - 60 °C
Weight & dimensionsidentical
Weight800 g800 g
Other features6 differ
Cable lengthKnown for one1 m
Dimensions (WxDxH)Differs157 x 127 x 30 mm187 x 100 x 30 mm
Downstream data rateKnown for one24 Mbit/s
Filtering descriptionURLURL
Frequency rangeDiffers2.400 – 2.483 GHz2.400 - 2.4835 GHz
Input frequencyKnown for one50/60 Hz
Input voltageDiffers12 V240 V
Operating temperature (T-T)Differs32 - 102 °F32 - 104 °F
Ports quantityKnown for one4
Power requirementsKnown for one12 V DC
Power supply typeDiffersDCAC/DC
Rack mountingKnown for oneNo
Supported WAN typeKnown for oneADSL2+
ThroughputKnown for one93 Mb/s
USB ports quantityKnown for one0
Upstream data rateKnown for one1 Mbit/s
xDSL connectionKnown for oneYes
Dimensions (W x D x H) (imperial)Differs157.5 x 127 x 30.5 mm (6.2 x 5 x 1.2")185.4 x 99.1 x 30.5 mm (7.3 x 3.9 x 1.2")
LAN featuresKnown for oneAuto MDI/MDI-X
Logging and monitoringKnown for oneYes
Weight (imperial)0.771 kg (1.7 lbs)0.771 kg (1.7 lbs)
BandwidthKnown for one2.4 GHz
Input currentKnown for one0.5 A
Networking featuresKnown for oneFast Ethernet
WLAN data transfer rates supportedKnown for one150 Mbit/s
System requirementsidentical
Minimum RAMKnown for one16 MB

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
