Product comparison · 2 wireless access points

Zebra Motorola AP-7522 1000 Mbit/s vs Zebra Motorola AP-7532 1000 Mbit/s White Power over Ethernet (PoE)

18specifications compared
2differ
16identical
15known for one product only

Key differences

Antennas quantity

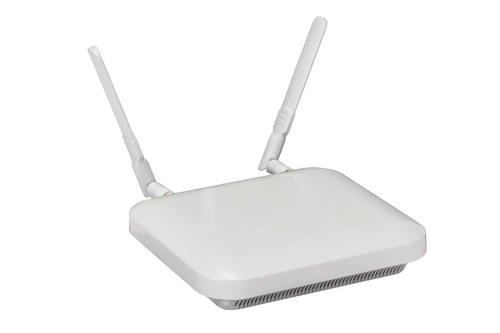

- Motorola AP-7522 1000 Mbit/s:2

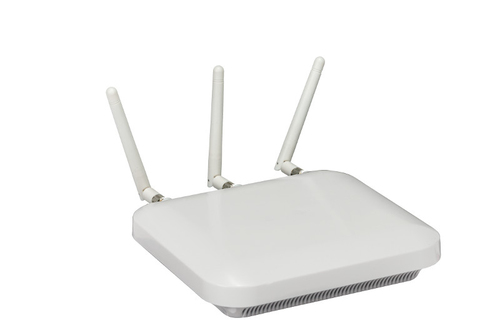

- Motorola AP-7532 1000 Mbit/s White Power over Ethernet (PoE):3
Antenna gain level (max)
- Motorola AP-7522 1000 Mbit/s:6 dBi
- Motorola AP-7532 1000 Mbit/s White Power over Ethernet (PoE):4 dBi

Side by side

Differences highlightedShow differences only

Comparison of AP-7522, AP-7532
33 specifications	A Zebra Motorola AP-7522 1000 Mbit/s Model AP-7522 View product	B Zebra Motorola AP-7532 1000 Mbit/s White Power over Ethernet (PoE) Model AP-7532 View product
Featuresidentical
Maximum data transfer rate	1000 Mbit/s	1000 Mbit/s
Maximum data transfer rate (5 GHz)Known for one	867 Mbit/s	Unknown — not stated by the source
Frequency bandKnown for one	5.8 GHz	Unknown — not stated by the source
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.3	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.3
Channel bandwidth	80 MHz	80 MHz
Modulation	256-QAM	256-QAM
Wi-Fi data rate (max)Known for one	Unknown — not stated by the source	1300 Mbit/s
Ethernet LAN data ratesKnown for one	Unknown — not stated by the source	10,100,1000 Mbit/s
Spread spectrum methodKnown for one	Unknown — not stated by the source	DSSS
Securityidentical
Security algorithms	WPA, WPA2	WPA, WPA2
IP address filtering	Yes	Yes
Protocolsidentical
DHCP server	Yes	Yes
DHCP client	Yes	Yes
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports	1	1
Poweridentical
AC input voltageKnown for one	48 V	Unknown — not stated by the source
Input currentKnown for one	0.28 A	Unknown — not stated by the source
Power over Ethernet (PoE)Known for one	Unknown — not stated by the source	Yes
Designidentical
LED indicatorsKnown for one	Yes	Unknown — not stated by the source
Internal	No	No
Product colourKnown for one	Unknown — not stated by the source	White
Antenna2 differ
Antennas quantityDiffers	2	3
Antenna gain level (max)Differs	6 dBi	4 dBi
Antenna connector typeKnown for one	RP-SMA	Unknown — not stated by the source
Number of connectorsKnown for one	2	Unknown — not stated by the source
Antenna featuresKnown for one	Unknown — not stated by the source	Detachable antenna
Certificatesidentical
CertificationKnown for one	RoHS	Unknown — not stated by the source
Weight & dimensionsidentical
Width	180 mm	180 mm
Depth	165 mm	165 mm
Height	41 mm	41 mm
Weight	820 g	820 g
Operational conditionsidentical
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C	-40 - 70 °C
Logistics dataidentical
Harmonized System (HS) codeKnown for one	85176990	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
