Product comparison · 2 wired routers

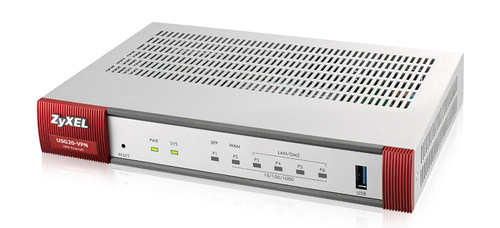

Zyxel ZyWALL USG20-VPN-EU0101F wired router Gigabit Ethernet Grey, Red vs Zyxel WRE6606 wired router White

21specifications compared
14differ
7identical
36known for one product only

Key differences

Ethernet LAN (RJ-45) ports
- ZyWALL USG20-VPN-EU0101F wired router Gigabit Ethernet Grey, Red:4
- WRE6606 wired router White:1
Safety
- ZyWALL USG20-VPN-EU0101F wired router Gigabit Ethernet Grey, Red:BSMI, UL
- WRE6606 wired router White:CE-LVD
Product colour
- ZyWALL USG20-VPN-EU0101F wired router Gigabit Ethernet Grey, Red:Grey, Red
- WRE6606 wired router White:White
Storage relative humidity (H-H)
- ZyWALL USG20-VPN-EU0101F wired router Gigabit Ethernet Grey, Red:10 - 90%
- WRE6606 wired router White:10 - 95%
Width
- ZyWALL USG20-VPN-EU0101F wired router Gigabit Ethernet Grey, Red:216 mm
- WRE6606 wired router White:123.2 mm
Depth
- ZyWALL USG20-VPN-EU0101F wired router Gigabit Ethernet Grey, Red:143 mm
- WRE6606 wired router White:75 mm
Height
- ZyWALL USG20-VPN-EU0101F wired router Gigabit Ethernet Grey, Red:33 mm
- WRE6606 wired router White:66.1 mm
Weight
- ZyWALL USG20-VPN-EU0101F wired router Gigabit Ethernet Grey, Red:1.14 kg
- WRE6606 wired router White:212.6 g

Side by side

Differences highlightedShow differences only

Comparison of USG20-VPN-EU0101F, WRE6606
57 specifications	A Zyxel ZyWALL USG20-VPN-EU0101F wired router Gigabit Ethernet Grey, Red Model USG20-VPN-EU0101F View product	B Zyxel WRE6606 wired router White Model WRE6606 View product
WAN connectionidentical
Ethernet WANKnown for one	Yes	Unknown — not stated by the source
Networkidentical
Networking standardsKnown for one	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u	Unknown — not stated by the source
Ethernet interface typeKnown for one	Gigabit Ethernet	Unknown — not stated by the source
Ethernet LAN	Yes	Yes
Cabling technologyKnown for one	10/100/1000Base-T(X)	Unknown — not stated by the source
Ethernet LAN data rates	10,100,1000 Mbit/s	10,100,1000 Mbit/s
Full duplexKnown for one	Yes	Unknown — not stated by the source
Flow control supportKnown for one	Yes	Unknown — not stated by the source
Auto MDI/MDI-XKnown for one	Unknown — not stated by the source	Yes
Automatic channel selectionKnown for one	Unknown — not stated by the source	Yes
Frequency rangeKnown for one	Unknown — not stated by the source	2.4 - 5 GHz
Management featuresidentical
Web-based managementKnown for one	Yes	Unknown — not stated by the source
Quality of Service (QoS) supportKnown for one	Yes	Unknown — not stated by the source
Universal Plug and Play (UPnP)Known for one	Yes	Unknown — not stated by the source
Reset button	Yes	Yes
Ports & interfaces1 differ
Ethernet LAN (RJ-45) portsDiffers	4	1
Gigabit Ethernet (copper) ports quantityKnown for one	4	Unknown — not stated by the source
DC-in jackKnown for one	Yes	Unknown — not stated by the source
USB ports quantityKnown for one	Unknown — not stated by the source	1
Protocolsidentical
DHCP clientKnown for one	Yes	Unknown — not stated by the source
DHCP serverKnown for one	Yes	Unknown — not stated by the source
DMZ supportKnown for one	Yes	Unknown — not stated by the source
Security1 differ
Security algorithmsDiffers	SSID, SSL/TLS	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
FirewallKnown for one	Yes	Unknown — not stated by the source
MAC address filteringKnown for one	Yes	Unknown — not stated by the source
System event logKnown for one	Yes	Unknown — not stated by the source
VPN tunnels quantityKnown for one	10	Unknown — not stated by the source
Packaging contentidentical
AC adapter includedKnown for one	Yes	Unknown — not stated by the source
Cables included	LAN (RJ-45)	LAN (RJ-45)
Quick installation guideKnown for one	Unknown — not stated by the source	Yes
Features1 differ
Heat dissipationKnown for one	40.92 BTU/h	Unknown — not stated by the source
Mean time between failures (MTBF)Known for one	44000 h	Unknown — not stated by the source
SafetyDiffers	BSMI, UL	CE-LVD
Electromagnetic compatibilityKnown for one	FCC Part 15 (Class B), IC, CE EMC (Class B), RCM, BSMI	Unknown — not stated by the source
CertificationKnown for one	Unknown — not stated by the source	CE, FCC
Design2 differ
Product colourDiffers	Grey, Red	White
LED indicatorsDiffers	Activity, LAN, Link, Power, Uplink, WAN	Yes
On/off switchKnown for one	Yes	Unknown — not stated by the source
Poweridentical
Power consumption (typical)Known for one	12 W	Unknown — not stated by the source
Power source typeKnown for one	DC	Unknown — not stated by the source
Input currentKnown for one	Unknown — not stated by the source	1 A
Output voltageKnown for one	Unknown — not stated by the source	12 V
Output currentKnown for one	Unknown — not stated by the source	2.1 A
Operational conditions1 differ
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Storage temperature (T-T)	-30 - 70 °C	-30 - 70 °C
Operating relative humidity (H-H)	10 - 90%	10 - 90%
Storage relative humidity (H-H)Differs	10 - 90%	10 - 95%
Weight & dimensions4 differ
WidthDiffers	216 mm	123.2 mm
DepthDiffers	143 mm	75 mm
HeightDiffers	33 mm	66.1 mm
WeightDiffers	1.14 kg	212.6 g
Packaging data4 differ
Package widthDiffers	276 mm	182 mm
Package depthDiffers	185 mm	126 mm
Package heightDiffers	98 mm	111 mm
Package weightDiffers	1.5 kg	449.2 g
Logistics dataidentical
Harmonized System (HS) codeKnown for one	85176990	Unknown — not stated by the source
Antennaidentical
Antenna typeKnown for one	Unknown — not stated by the source	Internal

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
