Product comparison · 2 wired routers

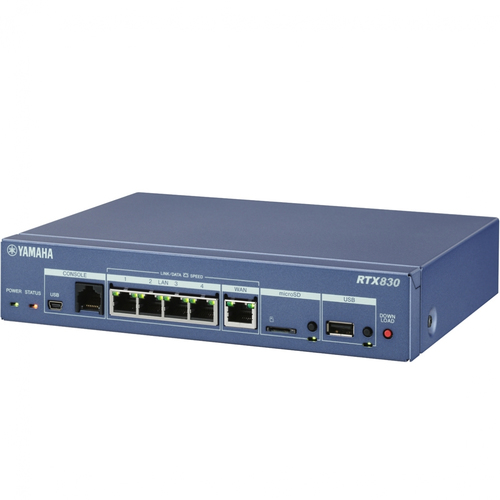

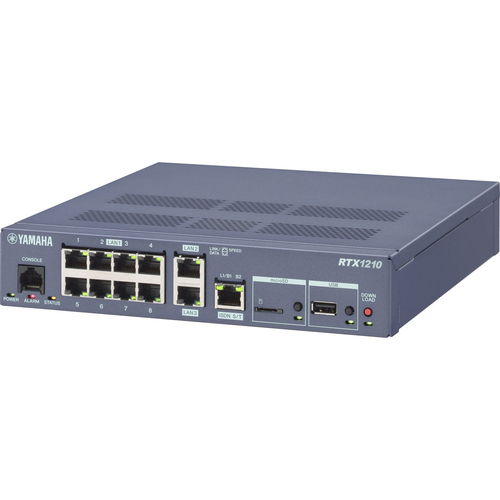

Yamaha RTX1210 wired router Gigabit Ethernet Grey vs Yamaha RTX830 wired router Gigabit Ethernet Blue

36specifications compared
10differ
26identical
5known for one product only

Key differences

Ethernet LAN (RJ-45) ports
- RTX1210 wired router Gigabit Ethernet Grey:8
- RTX830 wired router Gigabit Ethernet Blue:5
Product colour
- RTX1210 wired router Gigabit Ethernet Grey:Grey
- RTX830 wired router Gigabit Ethernet Blue:Blue
Power consumption (typical)
- RTX1210 wired router Gigabit Ethernet Grey:14.5 W
- RTX830 wired router Gigabit Ethernet Blue:11 W
Input current
- RTX1210 wired router Gigabit Ethernet Grey:0.28 A
- RTX830 wired router Gigabit Ethernet Blue:0.23 A
Depth
- RTX1210 wired router Gigabit Ethernet Grey:239 mm
- RTX830 wired router Gigabit Ethernet Blue:160 mm
Height
- RTX1210 wired router Gigabit Ethernet Grey:42 mm
- RTX830 wired router Gigabit Ethernet Blue:43.5 mm
Weight
- RTX1210 wired router Gigabit Ethernet Grey:1.5 kg
- RTX830 wired router Gigabit Ethernet Blue:1.1 kg

Side by side

Differences highlightedShow differences only

Comparison of RTX1210, RTX830
41 specifications	A Yamaha RTX1210 wired router Gigabit Ethernet Grey Model RTX1210 View product	B Yamaha RTX830 wired router Gigabit Ethernet Blue Model RTX830 View product
WAN connectionidentical
Ethernet WAN	Yes	Yes
Network1 differ
Networking standardsDiffers	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet interface type	Gigabit Ethernet	Gigabit Ethernet
Ethernet LAN	Yes	Yes
Cabling technology	10/100/1000Base-T(X)	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s	10,100,1000 Mbit/s
Throughput	2 Gbit/s	2 Gbit/s
VLAN supportKnown for one	Yes	Unknown — not stated by the source
Management featuresidentical
Quality of Service (QoS) support	Yes	Yes
Universal Plug and Play (UPnP)	Yes	Yes
Ports & interfaces1 differ
Ethernet LAN (RJ-45) portsDiffers	8	5
USB ports quantity	1	1
USB version	2.0	2.0
Gigabit Ethernet (copper) ports quantityKnown for one	Unknown — not stated by the source	5
Protocolsidentical
DHCP client	Yes	Yes
DHCP server	Yes	Yes
DMZ supportKnown for one	Yes	Unknown — not stated by the source
Routing protocols	BGP4, IP, OSPF, OSPFv3, RIP, RIP-2, RIPng	BGP4, IP, OSPF, OSPFv3, RIP, RIP-2, RIPng
Management protocols	SNMP (v1, v2c, v3)	SNMP (v1, v2c, v3)
IPv4 & IPv6 featuresKnown for one	Dual stack IPv4/IPv6	Unknown — not stated by the source
Securityidentical
Security algorithmsKnown for one	3DES, 128-bit AES, 256-bit AES, DES	Unknown — not stated by the source
Firewall	Yes	Yes
Certificatesidentical
Compliance certificates	RoHS	RoHS
Features1 differ
Flash memory	32 MB	32 MB
Internal memory	256 MB	256 MB
Compatible memory cardsDiffers	MicroDrive, MicroSDHC	MicroSD (TransFlash), MicroSDHC
Certification	VCCI Class A	VCCI Class A
Design2 differ
Product colourDiffers	Grey	Blue
LED indicatorsDiffers	Alarm, ISDN, LAN, Link, Power, Speed, USB	LAN, Link, Power, Speed, USB, WAN
Antennaidentical
Antenna type	Not supported	Not supported
Power2 differ
Power consumption (typical)Differs	14.5 W	11 W
Power source type	AC	AC
AC input voltage	100 - 240 V	100 - 240 V
AC input frequency	50 - 60 Hz	50 - 60 Hz
Input currentDiffers	0.28 A	0.23 A
Operational conditionsidentical
Operating temperature (T-T)	0 - 45 °C	0 - 45 °C
Operating relative humidity (H-H)	15 - 80%	15 - 80%
Weight & dimensions3 differ
Width	220 mm	220 mm
DepthDiffers	239 mm	160 mm
HeightDiffers	42 mm	43.5 mm
WeightDiffers	1.5 kg	1.1 kg

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
