Product comparison · 2 wired routers

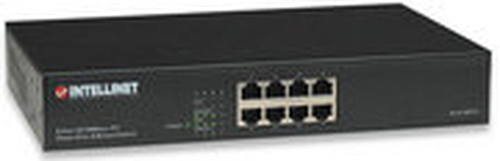

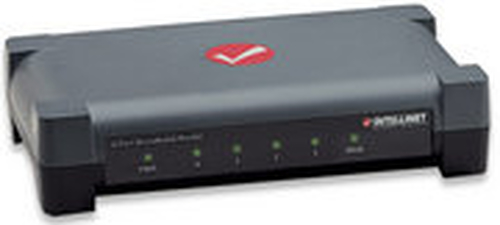

Intellinet 502917 wired router vs Intellinet 524957 wired router Black

15specifications compared
9differ
6identical
16known for one product only

Key differences

Ethernet LAN (RJ-45) ports
- 502917 wired router:8
- 524957 wired router Black:4
Certification
- 502917 wired router:FCC Class A, CE
- 524957 wired router Black:FCC Class B, CE
Operating temperature (T-T)
- 502917 wired router:0 - 60 °C
- 524957 wired router Black:0 - 40 °C
Storage temperature (T-T)
- 502917 wired router:-20 - 90 °C
- 524957 wired router Black:-40 - 70 °C
Operating relative humidity (H-H)
- 502917 wired router:10 - 90%
- 524957 wired router Black:10 - 95%
Weight
- 502917 wired router:1.4 kg
- 524957 wired router Black:410 g
Dimensions (WxDxH)
- 502917 wired router:266 x 160 x 44 mm
- 524957 wired router Black:155 x 85 x 35 mm
Input voltage
- 502917 wired router:90 – 260
- 524957 wired router Black:9 V

Side by side

Differences highlightedShow differences only

Comparison of 502917, 524957
31 specifications	A Intellinet 502917 wired router Model 502917 View product	B Intellinet 524957 wired router Black Model 524957 View product
WAN connectionidentical
Ethernet WANKnown for one	Unknown — not stated by the source	Yes
Network1 differ
Networking standardsDiffers	IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x	IEEE 802.3, IEEE 802.3u
Ethernet LAN	Yes	Yes
Ethernet LAN data rates	10,100 Mbit/s	10,100 Mbit/s
Full duplexKnown for one	Yes	Unknown — not stated by the source
Management featuresidentical
Quality of Service (QoS) support	Yes	Yes
Universal Plug and Play (UPnP)Known for one	Unknown — not stated by the source	Yes
Ports & interfaces1 differ
Ethernet LAN (RJ-45) portsDiffers	8	4
USB ports quantity	0	0
Protocolsidentical
DHCP clientKnown for one	Unknown — not stated by the source	Yes
DHCP serverKnown for one	Unknown — not stated by the source	Yes
DMZ supportKnown for one	Unknown — not stated by the source	Yes
Supported protocolsKnown for one	Unknown — not stated by the source	CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DHCP, DNS, DDNS, ARP
Securityidentical
Firewall securityKnown for one	Unknown — not stated by the source	URL filtering
MAC address filtering	Yes	Yes
MAC address tableKnown for one	4096 entries	Unknown — not stated by the source
Features1 differ
CertificationDiffers	FCC Class A, CE	FCC Class B, CE
Designidentical
Product colourKnown for one	Unknown — not stated by the source	Black
Poweridentical
Power over Ethernet (PoE)	Yes	Yes
Power consumption (typical)Known for one	180 W	Unknown — not stated by the source
Operational conditions3 differ
Operating temperature (T-T)Differs	0 - 60 °C	0 - 40 °C
Storage temperature (T-T)Differs	-20 - 90 °C	-40 - 70 °C
Operating relative humidity (H-H)Differs	10 - 90%	10 - 95%
Weight & dimensions1 differ
WeightDiffers	1.4 kg	410 g
Other features2 differ
Cable lengthKnown for one	Unknown — not stated by the source	1 m
Dimensions (WxDxH)Differs	266 x 160 x 44 mm	155 x 85 x 35 mm
Input voltageDiffers	90 – 260	9 V
Input frequencyKnown for one	50 – 60	Unknown — not stated by the source
Packet transfer speedKnown for one	148800 pps	Unknown — not stated by the source
Output power descriptionKnown for one	15.4W/port	Unknown — not stated by the source
Packaging contentidentical
ManualKnown for one	Yes	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
