Product comparison · 2 wired routers

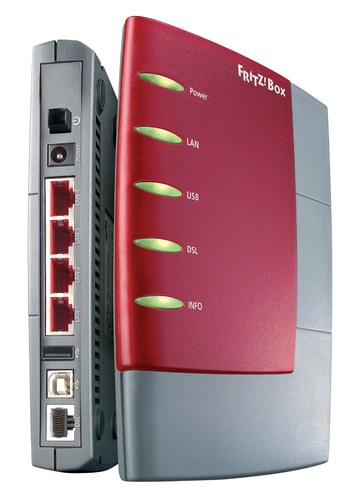

FRITZ!Box 2170, DE vs FRITZ! VoIP-Gateway 5188

6specifications compared
3differ
3identical
19known for one product only

Key differences

Ethernet LAN data rates
- FRITZ!Box 2170, DE:10,100 Mbit/s
- VoIP-Gateway 5188:100 Mbit/s
Supports ISDN connection
- FRITZ!Box 2170, DE:No
- VoIP-Gateway 5188:Yes
Maximum data transfer rate
- FRITZ!Box 2170, DE:0.1 Gbit/s
- VoIP-Gateway 5188:0.100 Gbit/s

Side by side

Differences highlightedShow differences only

Comparison of FRITZ!Box 2170, DE, VoIP-Gateway 5188
25 specifications	A FRITZ! FRITZ!Box 2170, DE View product	B FRITZ! VoIP-Gateway 5188 View product
Network2 differ
Networking standardsKnown for one	IEEE 802.3, IEEE 802.3u	Unknown — not stated by the source
Ethernet LANKnown for one	Yes	Unknown — not stated by the source
Ethernet LAN data ratesDiffers	10,100 Mbit/s	100 Mbit/s
Supports ISDN connectionDiffers	No	Yes
Full duplexKnown for one	Unknown — not stated by the source	Yes
DSL featuresidentical
ADSL2+Known for one	Yes	Unknown — not stated by the source
ADSLKnown for one	Unknown — not stated by the source	Yes
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports	4	4
USB ports quantityKnown for one	2	Unknown — not stated by the source
DC-in jackKnown for one	Unknown — not stated by the source	Yes
Protocolsidentical
DHCP server	Yes	Yes
Switching protocolsKnown for one	Ethernet	Unknown — not stated by the source
Data link protocolsKnown for one	Ethernet, Fast Ethernet	Unknown — not stated by the source
Management protocolsKnown for one	HTTP	Unknown — not stated by the source
DHCP clientKnown for one	Unknown — not stated by the source	Yes
Designidentical
Rack mountingKnown for one	No	Unknown — not stated by the source
Poweridentical
Power consumption (typical)Known for one	5 W	Unknown — not stated by the source
Weight & dimensionsidentical
WidthKnown for one	160 mm	Unknown — not stated by the source
DepthKnown for one	122 mm	Unknown — not stated by the source
HeightKnown for one	31 mm	Unknown — not stated by the source
WeightKnown for one	Unknown — not stated by the source	1.12 kg
Other features1 differ
Compatible operating systemsKnown for one	Windows/Linux/Mac OS X 10.3.3 +	Unknown — not stated by the source
Connectivity technology	Wired	Wired
Maximum data transfer rateDiffers	0.1 Gbit/s	0.100 Gbit/s
Dimensions (WxDxH)Known for one	Unknown — not stated by the source	240 x 305 x 70 mm

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
