Product comparison · 2 wired routers

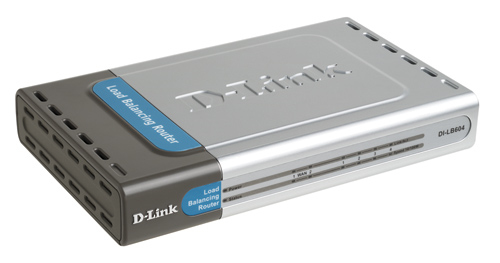

D-Link DI-LB604/A wired router Fast Ethernet vs D-Link DSR-150 wired router Fast Ethernet Black

13specifications compared
8differ
5identical
33known for one product only

Key differences

Ethernet LAN (RJ-45) ports
- DI-LB604/A wired router Fast Ethernet:6
- DSR-150 wired router Fast Ethernet Black:8
Input current
- DI-LB604/A wired router Fast Ethernet:3 A
- DSR-150 wired router Fast Ethernet Black:1.5 A
Operating temperature (T-T)
- DI-LB604/A wired router Fast Ethernet:0 - 55 °C
- DSR-150 wired router Fast Ethernet Black:0 - 40 °C
Operating relative humidity (H-H)
- DI-LB604/A wired router Fast Ethernet:0 - 95%
- DSR-150 wired router Fast Ethernet Black:5 - 95%
Width
- DI-LB604/A wired router Fast Ethernet:118 mm
- DSR-150 wired router Fast Ethernet Black:208 mm
Depth
- DI-LB604/A wired router Fast Ethernet:192 mm
- DSR-150 wired router Fast Ethernet Black:118 mm
Height
- DI-LB604/A wired router Fast Ethernet:31 mm
- DSR-150 wired router Fast Ethernet Black:35 mm

Side by side

Differences highlightedShow differences only

Comparison of DI-LB604/A, DSR-150
46 specifications	A D-Link DI-LB604/A wired router Fast Ethernet Model DI-LB604/A View product	B D-Link DSR-150 wired router Fast Ethernet Black Model DSR-150 View product
WAN connectionidentical
Ethernet WAN	Yes	Yes
Network1 differ
Networking standardsDiffers	IEEE 802.3, IEEE 802.3u	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet interface type	Fast Ethernet	Fast Ethernet
Ethernet LAN	Yes	Yes
Cabling technology	10/100Base-T(X)	10/100Base-T(X)
Ethernet LAN data rates	10,100 Mbit/s	10,100 Mbit/s
Management featuresidentical
Web-based managementKnown for one	Unknown — not stated by the source	Yes
Quality of Service (QoS) supportKnown for one	Unknown — not stated by the source	Yes
Firmware upgradeableKnown for one	Yes	Unknown — not stated by the source
Ports & interfaces1 differ
Ethernet LAN (RJ-45) portsDiffers	6	8
USB ports quantityKnown for one	Unknown — not stated by the source	0
PC in (D-Sub)Known for one	Unknown — not stated by the source	No
RS-232 portsKnown for one	Unknown — not stated by the source	0
DC-in jackKnown for one	Yes	Unknown — not stated by the source
Protocolsidentical
DHCP clientKnown for one	Unknown — not stated by the source	Yes
DHCP serverKnown for one	Unknown — not stated by the source	Yes
Supported network protocolsKnown for one	Unknown — not stated by the source	IPSec, PPTP, L2TP
Securityidentical
Security algorithmsKnown for one	Unknown — not stated by the source	3DES, DES, SSL/TLS
URL filteringKnown for one	Unknown — not stated by the source	Yes
Filtering descriptionKnown for one	Unknown — not stated by the source	Keyword
VPN tunnels quantityKnown for one	Unknown — not stated by the source	21
Firewall securityKnown for one	Network address translation (NAT) firewall, Network Address Port Translation (NAPT) firewall, Denial of Service (DoS) protection, Stateful packet inspection (SPI) firewall	Unknown — not stated by the source
Featuresidentical
Mean time between failures (MTBF)Known for one	Unknown — not stated by the source	240000 h
SafetyKnown for one	Unknown — not stated by the source	cUL, LVD (EN60950-1)
Electromagnetic compatibilityKnown for one	Unknown — not stated by the source	FCC Class B, CE Class B, C-Tick, IC
CertificationKnown for one	Unknown — not stated by the source	WEEE
Designidentical
Product colourKnown for one	Unknown — not stated by the source	Black
Rack mountingKnown for one	Unknown — not stated by the source	No
LED indicatorsKnown for one	Unknown — not stated by the source	Yes
Power1 differ
Power consumption (typical)Known for one	Unknown — not stated by the source	7.44 W
AC input voltageKnown for one	Unknown — not stated by the source	100 - 240 V
AC input frequencyKnown for one	Unknown — not stated by the source	50 - 60 Hz
Input currentDiffers	3 A	1.5 A
Operational conditions2 differ
Operating temperature (T-T)Differs	0 - 55 °C	0 - 40 °C
Storage temperature (T-T)Known for one	Unknown — not stated by the source	-20 - 70 °C
Operating relative humidity (H-H)Differs	0 - 95%	5 - 95%
Weight & dimensions3 differ
WidthDiffers	118 mm	208 mm
DepthDiffers	192 mm	118 mm
HeightDiffers	31 mm	35 mm
WeightKnown for one	300 g	Unknown — not stated by the source
Other featuresidentical
Compliance industry standardsKnown for one	Unknown — not stated by the source	RoHS
Connectivity technologyKnown for one	Unknown — not stated by the source	Wired
Input voltageKnown for one	Unknown — not stated by the source	12 V
Management platformKnown for one	Unknown — not stated by the source	HTTP, HTTPS, CLI, SNMP v1/v2c/v3
Ports quantityKnown for one	Unknown — not stated by the source	8
ThroughputKnown for one	Unknown — not stated by the source	45Mbps

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
