Product comparison · 2 video capturing devices

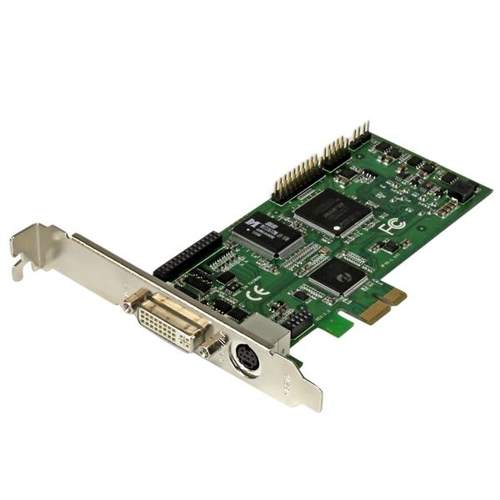

Manhattan USB-A Audio/Video Grabber, Single Button Video Capture, Copy and Pause control, Encodes in MPEG 1/2/4 format, Three Year Warranty, Box vs StarTech.com High-definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P at 60 FPS

18specifications compared
12differ
6identical
23known for one product only

Key differences

Internal
- USB-A Audio/Video Grabber, Single Button Video Capture, Copy and Pause control, Encodes in MPEG 1/2/4 format, Three Year Warranty, Box:No
- High-definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P at 60 FPS:Yes
Host interface
- USB-A Audio/Video Grabber, Single Button Video Capture, Copy and Pause control, Encodes in MPEG 1/2/4 format, Three Year Warranty, Box:USB 2.0
- High-definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P at 60 FPS:PCIe
Certification
- USB-A Audio/Video Grabber, Single Button Video Capture, Copy and Pause control, Encodes in MPEG 1/2/4 format, Three Year Warranty, Box:FCC CE RoHS2
- High-definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P at 60 FPS:CE, FCC
Analog signal format system
- USB-A Audio/Video Grabber, Single Button Video Capture, Copy and Pause control, Encodes in MPEG 1/2/4 format, Three Year Warranty, Box:NTSC, PAL, SECAM
- High-definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P at 60 FPS:NTSC, PAL, PAL 60, PAL M
Audio (L/R) in
- USB-A Audio/Video Grabber, Single Button Video Capture, Copy and Pause control, Encodes in MPEG 1/2/4 format, Three Year Warranty, Box:1
- High-definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P at 60 FPS:0
Composite video in
- USB-A Audio/Video Grabber, Single Button Video Capture, Copy and Pause control, Encodes in MPEG 1/2/4 format, Three Year Warranty, Box:1
- High-definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P at 60 FPS:0
Width
- USB-A Audio/Video Grabber, Single Button Video Capture, Copy and Pause control, Encodes in MPEG 1/2/4 format, Three Year Warranty, Box:35 mm
- High-definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P at 60 FPS:120 mm
Depth
- USB-A Audio/Video Grabber, Single Button Video Capture, Copy and Pause control, Encodes in MPEG 1/2/4 format, Three Year Warranty, Box:108 mm
- High-definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P at 60 FPS:141 mm

Side by side

Differences highlightedShow differences only

Comparison of 162579, PEXHDCAP60L
41 specifications	A Manhattan USB-A Audio/Video Grabber, Single Button Video Capture, Copy and Pause control, Encodes in MPEG 1/2/4 format, Three Year Warranty, Box Model 162579 View product	B StarTech.com High-definition PCIe Capture Card - HDMI VGA DVI & Component - 1080P at 60 FPS Model PEXHDCAP60L View product
Performance3 differ
InternalDiffers	No	Yes
Host interfaceDiffers	USB 2.0	PCIe
Video capture resolution (max)Known for one	Unknown — not stated by the source	1920 x 1080 pixels
Supported aspect ratiosKnown for one	Unknown — not stated by the source	4:3, 16:9
CertificationDiffers	FCC CE RoHS2	CE, FCC
Product colourKnown for one	Black, Grey	Unknown — not stated by the source
Video1 differ
Analog signal format systemDiffers	NTSC, PAL, SECAM	NTSC, PAL, PAL 60, PAL M
Supported video modesKnown for one	Unknown — not stated by the source	1080p, 480i, 480p, 576i, 576p, 720p
Maximum video capture resolution (PAL)Known for one	720 x 576 pixels	Unknown — not stated by the source
Maximum video capture resolution (NTSC)Known for one	720 x 480 pixels	Unknown — not stated by the source
Audioidentical
Audio supportKnown for one	Unknown — not stated by the source	Yes
File formatsidentical
Video compression formatsKnown for one	Unknown — not stated by the source	H.264, MPEG4
Image formats supportedKnown for one	BMP, JPEG	Unknown — not stated by the source
Ports & interfaces2 differ
Audio (L/R) inDiffers	1	0
Headphone outputs	0	0
S-Video inputs quantity	1	1
Composite video inDiffers	1	0
Firewire (IEEE 1394) ports	0	0
DVI-I ports quantityKnown for one	Unknown — not stated by the source	1
Component video (YPbPr/YCbCr) inKnown for one	0	Unknown — not stated by the source
Software1 differ
Windows operating systems supportedDiffers	Yes	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Bundled softwareKnown for one	Honestech VHS to DVD 4.0 SE	Unknown — not stated by the source
Operational conditionsidentical
Operating temperature (T-T)Known for one	Unknown — not stated by the source	0 - 40 °C
Storage temperature (T-T)Known for one	Unknown — not stated by the source	-5 - 40 °C
Operating relative humidity (H-H)Known for one	Unknown — not stated by the source	20 - 80%
Technical detailsidentical
Compliance certificates	RoHS	RoHS
Weight & dimensions4 differ
WidthDiffers	35 mm	120 mm
DepthDiffers	108 mm	141 mm
HeightDiffers	15 mm	18 mm
WeightDiffers	70.8 g	71 g
Package dimensions (WxDxH)Known for one	Unknown — not stated by the source	145 x 206 x 40 mm
Packaging content1 differ
Interface adapters includedKnown for one	Unknown — not stated by the source	DVI-I male - HDMI female, DVI-I male - VGA female
Cables includedDiffers	RCA	Component, S-Video
Full-height bracketKnown for one	Unknown — not stated by the source	Yes
Low-profile bracketKnown for one	Unknown — not stated by the source	Yes
Software CD	Yes	Yes
Manual	Yes	Yes
Packaging dataidentical
Package weightKnown for one	Unknown — not stated by the source	400 g
Poweridentical
Power supply typeKnown for one	USB	Unknown — not stated by the source
System requirementsidentical
Minimum RAMKnown for one	256 MB	Unknown — not stated by the source
Minimum storage drive spaceKnown for one	1 GB	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
