Product comparison · 2 uninterruptible power supplies (upss)

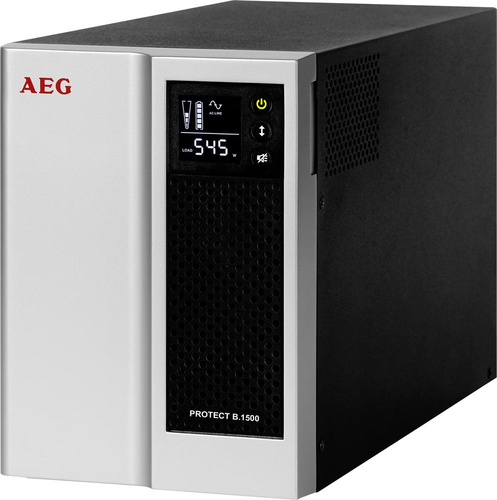

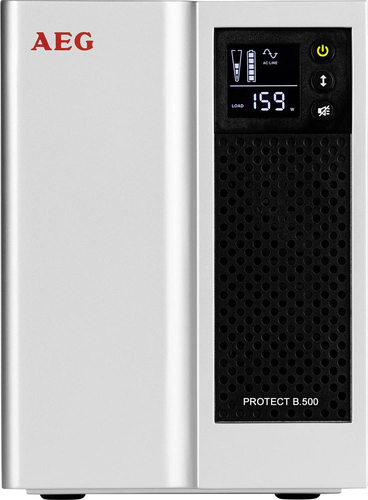

AEG Protect B. 1500 vs AEG Protect B. 500

53specifications compared
13differ
40identical
0known for one product only

Key differences

Output power capacity
- Protect B. 1500:1.5 kVA
- Protect B. 500:0.5 kVA
Output power
- Protect B. 1500:900 W
- Protect B. 500:350 W
Maximum current
- Protect B. 1500:7.6 A
- Protect B. 500:2.7 A
Noise level
- Protect B. 1500:45 dB
- Protect B. 500:40 dB
AC outlets quantity
- Protect B. 1500:8 AC outlet(s)
- Protect B. 500:4 AC outlet(s)
Battery voltage
- Protect B. 1500:24 V
- Protect B. 500:12 V
Number of batteries supported
- Protect B. 1500:2
- Protect B. 500:1
Depth
- Protect B. 1500:340 mm
- Protect B. 500:240 mm

Side by side

Differences highlightedShow differences only

Comparison of Protect B. 1500, Protect B. 500
53 specifications	A AEG Protect B. 1500 View product	B AEG Protect B. 500 View product
Features4 differ
UPS topology	Line-Interactive	Line-Interactive
Output power capacityDiffers	1.5 kVA	0.5 kVA
Output powerDiffers	900 W	350 W
Waveform	Sine	Sine
Input operation voltage (min)	220 V	220 V
Input operation voltage (max)	240 V	240 V
Input frequency	50/60 Hz	50/60 Hz
Output operation voltage (min)	220 V	220 V
Output operation voltage (max)	240 V	240 V
Output frequency	50/60 Hz	50/60 Hz
Automatic Voltage Regulation (AVR)	Yes	Yes
Maximum currentDiffers	7.6 A	2.7 A
Efficiency	94%	94%
Noise levelDiffers	45 dB	40 dB
Surge protection	Yes	Yes
Surge protection features	Fax, Modem, Network, Telephone	Fax, Modem, Network, Telephone
Power protection features	Overload, Short circuit	Overload, Short circuit
Audible alarm(s)	Yes	Yes
Audible alarm modes	Battery replacement	Battery replacement
Auto-restart	Yes	Yes
Ports & interfaces1 differ
AC outlet types	C13 coupler	C13 coupler
Power plug	C14 coupler	C14 coupler
AC outlets quantityDiffers	8 AC outlet(s)	4 AC outlet(s)
USB 2.0 ports quantity	1	1
Modem (RJ-11) ports	1	1
Ethernet LAN (RJ-45) ports	1	1
Battery2 differ
Battery technology	Sealed Lead Acid (VRLA)	Sealed Lead Acid (VRLA)
Battery voltageDiffers	24 V	12 V
Number of batteries supportedDiffers	2	1
Battery recharge time	5 h	5 h
Hot-swap battery	Yes	Yes
Automatic battery test	Yes	Yes
Cold start	Yes	Yes
Designidentical
Product colour	Black, Silver	Black, Silver
Cooling type	Active	Active
Display type	LCD	LCD
LED indicators	Battery replacement	Battery replacement
International Protection (IP) code	IP20	IP20
Operational conditionsidentical
Operating temperature (T-T)	0 - 35 °C	0 - 35 °C
Operating relative humidity (H-H)	0 - 90%	0 - 90%
Operating altitude	0 - 1000 m	0 - 1000 m
Packaging contentidentical
Cables included	USB cable	USB cable
Manual	Yes	Yes
Weight & dimensions2 differ
Width	150 mm	150 mm
DepthDiffers	340 mm	240 mm
Height	209 mm	209 mm
WeightDiffers	11.5 kg	6.3 kg
Packaging data4 differ
Resource CD	Yes	Yes
Package widthDiffers	238 mm	199 mm
Package depthDiffers	476 mm	301 mm
Package heightDiffers	308 mm	295 mm
Package weightDiffers	13 kg	7.3 kg
Other featuresidentical
Number of phases	1	1

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
