Product comparison · 2 servers

HP ProLiant 869354-B21 server vs HP DL20 Gen9

Add a product
  • 62specifications compared
  • 32differ
  • 30identical
  • 45known for one product only

Key differences

  • Processor family
    • Intel® Xeon® E5 v4
    • Intel® Xeon® E3 v6
  • Processor model
    • E5-2620V4
    • E3-1220 v6
  • Processor frequency
    • 2.1 GHz
    • 3 GHz
  • Processor boost frequency
    • 3 GHz
    • 3.5 GHz
  • Processor cores
    • 8
    • 4
  • Processor cache
    • 20 MB
    • 8 MB
  • Memory channels supported by processor
    • Quad
    • Dual
  • Thermal Design Power (TDP)
    • 85 W
    • 72 W

Side by side

Differences highlightedShow differences only
107 specifications
A

HP

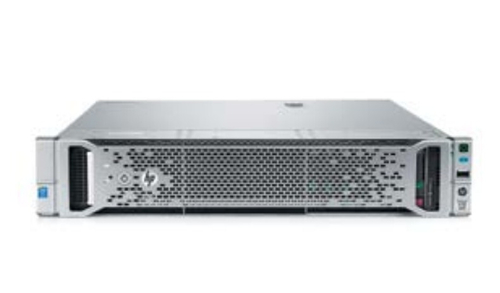

ProLiant 869354-B21 server

Model 869354-B21

View product
B

HP

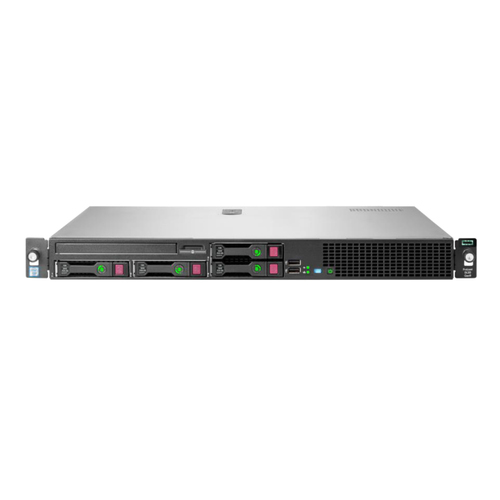

DL20 Gen9View product
Processor21 differ
Processor manufacturerIntelIntel
Processor familyDiffersIntel® Xeon® E5 v4Intel® Xeon® E3 v6
Processor modelDiffersE5-2620V4E3-1220 v6
Processor frequencyDiffers2.1 GHz3 GHz
Processor boost frequencyDiffers3 GHz3.5 GHz
Processor coresDiffers84
Processor cacheDiffers20 MB8 MB
Memory channels supported by processorDiffersQuadDual
Number of processors installed11
Thermal Design Power (TDP)Differs85 W72 W
Processor cache typeSmart CacheSmart Cache
System bus rate8 GT/s8 GT/s
Bus typeDiffersQPIDMI3
ECC supported by processorYesYes
Embedded options availableDiffersYesNo
Execute Disable BitYesYes
Idle StatesYesYes
Maximum internal memory supported by processorDiffers1.53 TB64 GB
Maximum number of PCI Express lanesDiffers4016
Memory bandwidth supported by processor (max)Differs68.3 GB/s37.5 GB/s
Memory clock speeds supported by processorDiffers1600,1866,2133 MHz1866,2133 MHz
Memory types supported by processorDiffersDDR4-SDRAMDDR3L, DDR4-SDRAM
PCI Express configurationsKnown for one1x16, 1x8+2x4, 2x8
Processor codenameDiffersBroadwellKaby Lake
Processor lithography14 nm14 nm
Processor operating modes64-bit64-bit
Processor package sizeDiffers45 x 52.5 mm37.5 x 37.5 mm
Processor socketDiffersLGA 2011-v3LGA 1151 (Socket H4)
Processor threadsDiffers164
ScalabilityDiffers2S1S
Supported instruction setsDiffersAVX 2.0AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYesYes
Conflict-Free processorYesYes
Number of QPI linksKnown for one2
Physical Address Extension (PAE)Known for oneYes
Processor codeKnown for oneSR2R6
Processor seriesKnown for oneIntel Xeon E5-2600 v4
SteppingKnown for oneR0
TcaseKnown for one74 °C
Memory2 differ
Internal memoryDiffers16 GB8 GB
Internal memory typeKnown for oneDDR4-SDRAM
ECCKnown for oneYes
Memory clock speedKnown for one2133 MHz
Memory layout (slots x size)Differs1 x 16 GB1 x 8 GB
Memory slotsKnown for one4x DIMM
Maximum internal memoryKnown for one64 GB
Storage2 differ
Maximum storage capacityDiffers64 TB8 TB
Total storage capacity0 GB0 GB
Number of HDDs installedKnown for one0
HDD interfaceKnown for oneSerial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)
HDD size3.5"3.5"
Number of HDDs supportedDiffers84
RAID supportKnown for oneYes
RAID levelsKnown for one0, 1, 5
Hot-Plug supportKnown for oneNo
Optical drive typeNoNo
HDD capacityKnown for one0 GB
Card reader integratedKnown for oneYes
Compatible memory cardsKnown for oneMicroSD (TransFlash)
Networkidentical
Cabling technologyKnown for one10/100/1000Base-T(X)
Ethernet LANKnown for oneYes
Ethernet interface typeKnown for oneGigabit Ethernet
Ports & interfaces1 differ
Ethernet LAN (RJ-45) ports22
USB 2.0 ports quantityDiffers12
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityKnown for one2
Serial ports quantityKnown for one0
VGA (D-Sub) ports quantityKnown for one1
Expansion slotsidentical
PCI Express slots version3.03.0
Design1 differ
Chassis typeDiffersRack (2U)Rack (1U)
Rack mountingKnown for oneYes
Software1 differ
Operating system installedKnown for oneNo
Compatible operating systemsDiffersMicrosoft Windows Server 2008 R2, Windows Server 2012 R2, Hyper-V, Red Hat Linux, SuSE Linux, VMware, UbuntuMicrosoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware
Processor special features3 differ
CPU configuration (max)Differs21
Enhanced Intel SpeedStep TechnologyYesYes
Intel 64YesYes
Intel Clear Video TechnologyKnown for oneNo
Intel Enhanced Halt StateYesYes
Intel Secure Key Technology version1.001.00
Intel Software Guard Extensions (Intel SGX)Known for oneYes
Intel TSX-NIYesYes
Intel TSX-NI version1.001.00
Intel Trusted Execution TechnologyYesYes
Intel VT-x with Extended Page Tables (EPT)YesYes
Intel Virtualization Technology (VT-x)YesYes
Intel Virtualization Technology for Directed I/O (VT-d)YesYes
Intel® AES New Instructions (Intel® AES-NI)YesYes
Intel® Clear Video HD Technology (Intel® CVT HD)Known for oneNo
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Known for oneNo
Intel® Hyper Threading Technology (Intel® HT Technology)DiffersYesNo
Intel® InTru™ 3D TechnologyKnown for oneNo
Intel® OS GuardYesYes
Intel® Quick Sync Video TechnologyKnown for oneNo
Intel® Secure KeyYesYes
Intel® Turbo Boost Technology2.02.0
Processor ARK IDDiffers9298697470
Intel Demand Based SwitchingKnown for oneYes
Intel Flex Memory AccessKnown for oneNo
Intel Identity Protection Technology versionKnown for one0.00
Intel® Identity Protection Technology (Intel® IPT)Known for oneNo
Power1 differ
Redundant power supply (RPS) supportKnown for oneNo
Power supplyDiffers900 W290 W
Number of main power suppliesKnown for one1
Sustainabilityidentical
Sustainability certificatesKnown for oneENERGY STAR
Weight & dimensionsidentical
WidthKnown for one434.6 mm
DepthKnown for one382.2 mm
HeightKnown for one43.2 mm
WeightKnown for one8.7 kg

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
