Product comparison · 2 security cameras

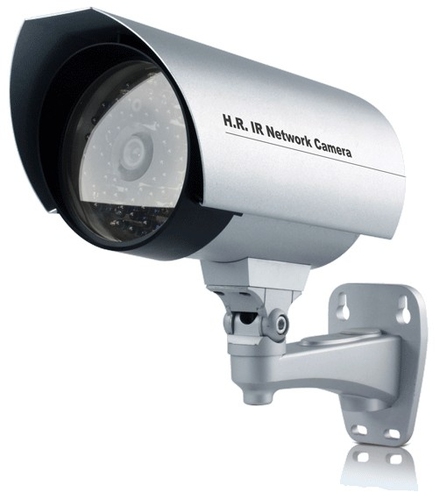

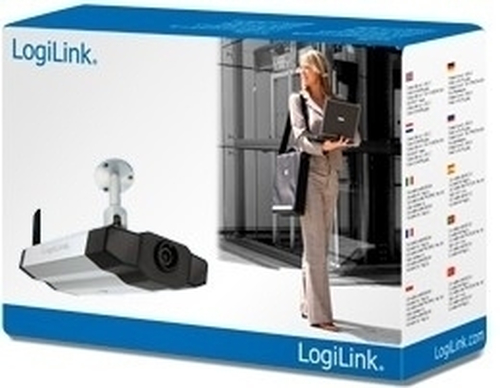

LogiLink IP Outdoor Cam H.264 vs LogiLink WC0010 security camera

18specifications compared
9differ
9identical
16known for one product only

Key differences

Minimum illumination
- IP Outdoor Cam H.264:0.3 lx
- WC0010 security camera:1 lx
Lens viewing angle, horizontal
- IP Outdoor Cam H.264:48°
- WC0010 security camera:80°
Optical sensor size
- IP Outdoor Cam H.264:25.4 / 3 mm (1 / 3")
- WC0010 security camera:25.4 / 3.6 mm (1 / 3.6")
Maximum resolution
- IP Outdoor Cam H.264:768 x 494 pixels
- WC0010 security camera:738 x 480 pixels
Video formats supported
- IP Outdoor Cam H.264:H.264
- WC0010 security camera:MPEG4
Power over Ethernet (PoE)
- IP Outdoor Cam H.264:No
- WC0010 security camera:Yes
Power requirements
- IP Outdoor Cam H.264:12V
- WC0010 security camera:12V/ 1A

Side by side

Differences highlightedShow differences only

Comparison of IP Outdoor Cam H.264, WC0010
34 specifications	A LogiLink IP Outdoor Cam H.264 View product	B LogiLink WC0010 security camera Model WC0010 View product
Camera2 differ
Minimum illuminationDiffers	0.3 lx	1 lx
Lens viewing angle, horizontalDiffers	48°	80°
Lens viewing angle, verticalKnown for one	Unknown — not stated by the source	55.6°
Camera shutter speed	1/60 - 1/100000 s	1/60 - 1/100000 s
Image sensor1 differ
Sensor type	CMOS	CMOS
Optical sensor sizeDiffers	25.4 / 3 mm (1 / 3")	25.4 / 3.6 mm (1 / 3.6")
Lens systemidentical
Focal length rangeKnown for one	Unknown — not stated by the source	3.6 - 4.6 mm
Video2 differ
Maximum resolutionDiffers	768 x 494 pixels	738 x 480 pixels
Video formats supportedDiffers	H.264	MPEG4
Frame rate	30 fps	30 fps
Analog signal format system	NTSC, PAL	NTSC, PAL
Network1 differ
Supported network protocolsDiffers	PPPoE, DDNS, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP	DDNS, DHCP, NTP, TCP/IP, ICPM, SMTP, FTP, HTTP, RTP, RTSP
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports	1	1
DC-in jackKnown for one	Yes	Unknown — not stated by the source
Securityidentical
Video motion detection	Yes	Yes
Active tampering alarmKnown for one	Yes	Unknown — not stated by the source
Management featuresidentical
Web-based managementKnown for one	Unknown — not stated by the source	Yes
Power1 differ
Power source typeKnown for one	Unknown — not stated by the source	PoE
Power over Ethernet (PoE)Differs	No	Yes
Operational conditionsidentical
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Operating relative humidity (H-H)Known for one	Unknown — not stated by the source	0 - 85%
System requirementsidentical
Minimum RAMKnown for one	Unknown — not stated by the source	256 MB
Minimum processorKnown for one	Unknown — not stated by the source	Pentium 4
Weight & dimensionsidentical
WeightKnown for one	Unknown — not stated by the source	812 g
Other features2 differ
Compatible operating systemsDiffers	Win 7, Vista, XP, 2000 Server, 98, ME	Windows 7/Vista/ME/XP/2000/98
Compliance industry standards	IEEE 802.3	IEEE 802.3
Data transfer rate	10 Mbit/s	10 Mbit/s
Dimensions (WxDxH)Known for one	Unknown — not stated by the source	115.2 x 152.5 x 40.2 mm
Networking featuresKnown for one	Unknown — not stated by the source	Fast Ethernet
Power requirementsDiffers	12V	12V/ 1A
F-number (relative aperture)Known for one	1	Unknown — not stated by the source
Performanceidentical
CertificationKnown for one	FCC, CE, ROHS	Unknown — not stated by the source
Night visionidentical
Night visionKnown for one	Yes	Unknown — not stated by the source
Audioidentical
Signal-to-Noise Ratio (SNR)Known for one	48 dB	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
