Product comparison · 2 security cameras

Intellinet High Speed Dome Indoor/Outdoor Network Camera vs Intellinet Mini Speed-Dome Camera

Add a product
  • 52specifications compared
  • 15differ
  • 37identical
  • 11known for one product only

Key differences

  • Certification
    • FCC, EMC,EN
    • FCC, CE, RoHS
  • Mounting type
    • Wall
    • Ceiling
  • Minimum illumination
    • 0.0007 lx
    • 0.2 lx
  • Camera shutter speed
    • 1/120 - 1/60000 s
    • 1/120 - 1/120000 s
  • Optical zoom
    • 30x
    • 10x
  • Focal length range
    • 3.3 - 99 mm
    • 3.8 - 38 mm
  • Video formats supported
    • M-JPEG, MPEG4
    • MPEG4
  • Number of TV lines
    • 540
    • 570

Side by side

Differences highlightedShow differences only
63 specifications
A

Intellinet

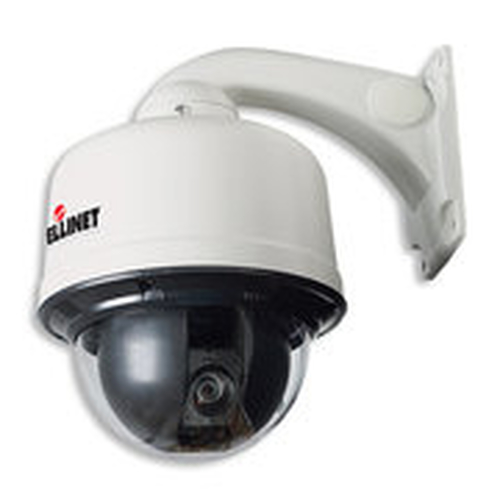

High Speed Dome Indoor/Outdoor Network CameraView product
B

Intellinet

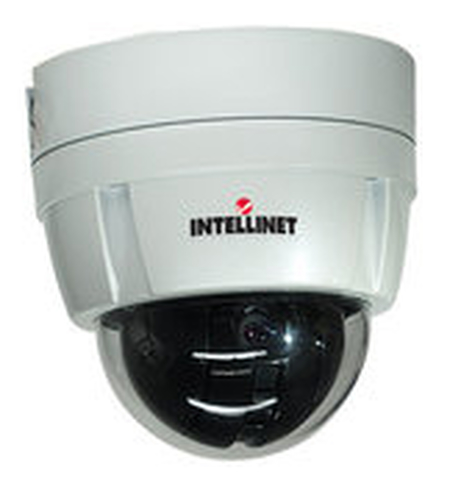

Mini Speed-Dome CameraView product
Performance1 differ
Placement supportedIndoor & outdoorIndoor & outdoor
Connectivity technologyWiredWired
PTZ controlYesYes
Day/night modeYesYes
CertificationDiffersFCC, EMC,ENFCC, CE, RoHS
Design1 differ
Form factorDomeDome
Mounting typeDiffersWallCeiling
Product colourWhiteWhite
International Protection (IP) codeKnown for oneIP66
Housing materialKnown for oneAluminium
Camera2 differ
Minimum illuminationDiffers0.0007 lx0.2 lx
Field of view (FOV) angleKnown for one58.7°
Angle of rotation360°360°
Tilt angle rangeKnown for one-2 - 90°
White balanceAutoAuto
Camera shutter speedDiffers1/120 - 1/60000 s1/120 - 1/120000 s
Lens viewing angle, horizontalKnown for one58.2°
Lens viewing angle, verticalKnown for one39.3°
Image sensoridentical
Sensor typeCCDCCD
Optical sensor size25.4 / 4 mm (1 / 4")25.4 / 4 mm (1 / 4")
Effective sensor resolution410000 pixels410000 pixels
Lens system2 differ
Optical zoomDiffers30x10x
Digital zoom10x10x
Focal length rangeDiffers3.3 - 99 mm3.8 - 38 mm
Video2 differ
Maximum resolution720 x 480 pixels720 x 480 pixels
Video formats supportedDiffersM-JPEG, MPEG4MPEG4
Supported graphics resolutions640 x 480 (VGA)640 x 480 (VGA)
Supported video modes480p480p
Frame rate30 fps30 fps
Analog signal format systemNTSCNTSC
Number of TV linesDiffers540570
Audioidentical
Signal-to-Noise Ratio (SNR)50 dB50 dB
Networkidentical
Ethernet LANYesYes
Wi-FiNoNo
Supported network protocolsHTTP, TCP, UDP, SMTP, UDP, FTP, ARP, DNS, DynDNSHTTP, TCP, UDP, SMTP, UDP, FTP, ARP, DNS, DynDNS
Cabling technology10/100Base-T(X)10/100Base-T(X)
Storageidentical
Built-in HDDNoNo
Ports & interfacesidentical
Composite video out11
Securityidentical
Video motion detectionYesYes
Power2 differ
AC input voltage110-240 V110-240 V
AC input frequency50 - 60 Hz50 - 60 Hz
Power consumption (typical)Differs18 W12 W
DC output currentDiffers1.5 A0.8 A
Power over Ethernet (PoE)NoNo
DC output voltageKnown for one+12V
Operational conditions3 differ
Operating temperature (T-T)Differs-5 - 50 °C0 - 40 °C
Storage temperature (T-T)Differs-40 - 60 °C0 - 60 °C
Operating relative humidity (H-H)Differs0 - 90%20 - 90%
System requirementsidentical
Windows operating systems supportedYesYes
Weight & dimensions1 differ
WidthKnown for one216.8 mm
DepthKnown for one216.8 mm
HeightKnown for one302 mm
WeightDiffers3 kg1.2 kg
Packaging contentidentical
Mounting kitYesYes
Mounting brackets includedYesYes
ManualYesYes
Cables includedKnown for oneAV
Other features1 differ
Compatible operating systemsWindows 2000 Windows XP Windows VistaWindows 2000 Windows XP Windows Vista
Compliance industry standardsIEEE 802.3, IEEE 802.3uIEEE 802.3, IEEE 802.3u
F-number (relative aperture)Differs1.61.8
Networking featuresFast EthernetFast Ethernet
Number of simultaneous users50 user(s)50 user(s)
Pre/post alarm bufferYesYes

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
