Product comparison · 2 raid controllers

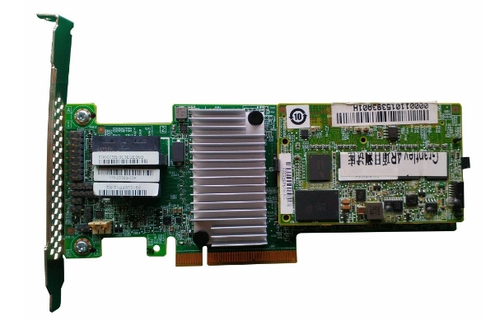

Lenovo 4XC0G88840 RAID controller PCI Express x8 3.0 12 Gbit/s vs Lenovo RAID 720i PCIe Adapte

11specifications compared
4differ
7identical
8known for one product only

Key differences

Supported storage drive interfaces
- 4XC0G88840 RAID controller PCI Express x8 3.0 12 Gbit/s:SAS, Serial ATA
- RAID 720i PCIe Adapte:SAS, Serial ATA III
RAID levels
- 4XC0G88840 RAID controller PCI Express x8 3.0 12 Gbit/s:0, 1, 10, JBOD
- RAID 720i PCIe Adapte:0, 1, 5, 10, 50, JBOD
Operating relative humidity (H-H)
- 4XC0G88840 RAID controller PCI Express x8 3.0 12 Gbit/s:5 - 90%
- RAID 720i PCIe Adapte:10 - 90%

Side by side

Differences highlightedShow differences only

Comparison of 4XC0G88840, RAID 720i PCIe Adapte
19 specifications	A Lenovo 4XC0G88840 RAID controller PCI Express x8 3.0 12 Gbit/s Model 4XC0G88840 View product	B Lenovo RAID 720i PCIe Adapte View product
Ports & interfaces1 differ
Supported storage drive interfacesDiffers	SAS, Serial ATA	SAS, Serial ATA III
Host interface	PCI Express x8	PCI Express x8
PCI Express slots version	3.0	3.0
Performance2 differ
RAID levelsDiffers	0, 1, 10, JBOD	0, 1, 5, 10, 50, JBOD
Data transfer rate	12 Gbit/s	12 Gbit/s
SSD supportKnown for one	Unknown — not stated by the source	Yes
Compatible productsDiffers	ThinkServer TS150, TS450, TS460, RS160	TS450 (E3 v5), TS460 (E3 v5), RS160 (E3 v5), RQ750 (E5 v3),
Processoridentical
Built-in processor	Yes	Yes
Processor family	LSI	LSI
System requirementsidentical
Linux operating systems supportedKnown for one	Unknown — not stated by the source	RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11.2
Server operating systems supportedKnown for one	Unknown — not stated by the source	Windows MultiPoint Server 2011, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2, Windows Server 2016
Operational conditions1 differ
Operating temperature (T-T)	0 - 55 °C	0 - 55 °C
Storage temperature (T-T)Known for one	Unknown — not stated by the source	-20 - 70 °C
Operating relative humidity (H-H)Differs	5 - 90%	10 - 90%
Logistics dataidentical
Harmonized System (HS) code	84733080	84733080
Other featuresidentical
PCI Card form factorKnown for one	Unknown — not stated by the source	Full-height (low-profile)
Other operating systems supportedKnown for one	Unknown — not stated by the source	VMware vSphere ESXi
Weight & dimensionsidentical
WidthKnown for one	4 mm	Unknown — not stated by the source
DepthKnown for one	12 mm	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
