Product comparison · 2 power supply units

UNYKAch ATX Courage 850W Hight Efficiency Power Supply vs UNYKAch Power Supply ATX

Add a product
  • 37specifications compared
  • 21differ
  • 16identical
  • 16known for one product only

Key differences

  • Total power
    • 850 W
    • 500 W
  • Max output current (+3.3V)
    • 24 A
    • 18 A
  • Max output current (+12V1)
    • 45 A
    • 41.6 A
  • Max output current (+5V)
    • 38 A
    • 18 A
  • Max output current (-12V)
    • 0.5 A
    • 0.3 A
  • Max output current (+5Vsb)
    • 3 A
    • 2.5 A
  • Motherboard power cable length
    • 60 cm
    • 50 cm
  • Number of SATA power connectors
    • 4
    • 2

Side by side

Differences highlightedShow differences only
53 specifications
A

UNYKAch

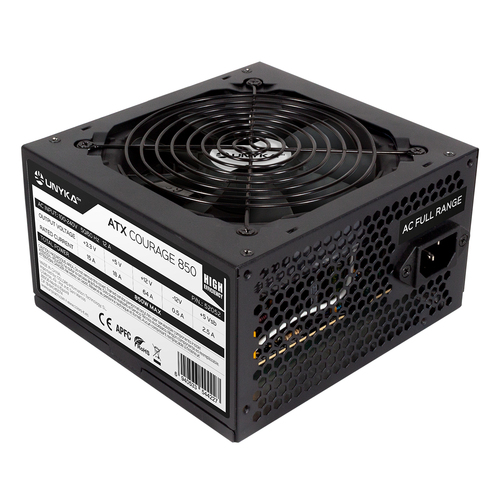

ATX Courage 850W Hight Efficiency Power Supply

Model 52052

View product
B

UNYKAch

Power Supply ATX

Model 52500

View product
Power7 differ
Total powerDiffers850 W500 W
AC input voltage100 - 240 V100 - 240 V
AC input frequency50 - 60 Hz50 - 60 Hz
Power Factor Correction (PFC) typeActiveActive
Max output current (+3.3V)Differs24 A18 A
Max output current (+12V1)Differs45 A41.6 A
Max output current (+12V2)Known for one45 A
Max output current (+5V)Differs38 A18 A
Max output current (-12V)Differs0.5 A0.3 A
Max output current (+5Vsb)Differs3 A2.5 A
Power protection featuresDiffersOver voltage, Short circuit, Under powerOver power, Over voltage, Overcharge, Under voltage
Ports & interfaces5 differ
Motherboard power connector20+4 pin ATX20+4 pin ATX
Motherboard power cable lengthDiffers60 cm50 cm
Number of SATA power connectorsDiffers42
SATA power cable lengthDiffers650,800 mm350,500 mm
Peripheral (Molex) power connectors (4-pin)22
Peripheral (Molex) power cable lengthDiffers500 mm500,650 mm
PCI Express power connectors (8-pin)Known for one1
PCI Express power cable lengthDiffers65 cm55 cm
CPU power connector (4+4 pin)Known for oneYes
CPU power cable lengthKnown for one70 cm
ATX power connector (20+4 pin)YesYes
Cabling typeNon-ModularNon-Modular
EPS power connector (4+4 pin)Known for oneYes
PCI Express power connectors (6+2 pin)Known for one1
Performanceidentical
PurposePCPC
Power supply unit (PSU) form factorATXATX
ATX version2.32.3
80 PLUS certificationKnown for one80 PLUS Bronze
Noise levelKnown for one28 dB
Design1 differ
Product colourDiffersBlackSilver
Cooling typeActiveActive
Fan diameter12 cm12 cm
Number of fans1 fan(s)1 fan(s)
Fan speedKnown for one0 - 2000 RPM
Fan locationTopTop
On/off switchKnown for oneYes
Packaging contentidentical
Cables includedKnown for oneAC
Certificates1 differ
Compliance certificatesRoHSRoHS
CertificationDiffersCE, EN60950, TÜVCE / EN60950 / TÜV
Weight & dimensions3 differ
WidthDiffers140 mm150 mm
DepthDiffers150 mm140 mm
Height85 mm85 mm
WeightDiffers1.43 kg1.14 kg
Packaging data4 differ
ManualKnown for oneYes
Package widthDiffers185 mm150 mm
Package depthDiffers240 mm140 mm
Package heightDiffers98 mm85 mm
Package weightDiffers1.88 kg1.14 kg
Package typeKnown for oneBox
Other featuresidentical
Screws includedKnown for oneYes
Package volumeKnown for one1800 cm³
Logistics dataidentical
Country of originKnown for oneTaiwan

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
