Product comparison · 2 power supply units

StarTech.com ATX2POWER430 power supply unit vs StarTech.com ATX2POWER530 power supply unit

Add a product
  • 26specifications compared
  • 5differ
  • 21identical
  • 0known for one product only

Key differences

  • Total power
    • 430 W
    • 530 W
  • Peak power
    • 500 W
    • 600 W
  • Efficiency
    • 84.81%
    • 85.61%
  • Package weight
    • 1.94 kg
    • 1.96 kg
  • Dimensions (WxDxH)
    • 140 x 150 x 86 mm
    • 150 x 140 x 86 mm

Side by side

Differences highlightedShow differences only
26 specifications
A

StarTech.com

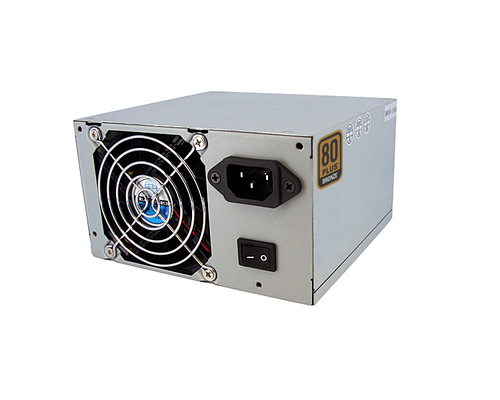

ATX2POWER430 power supply unit

Model ATX2POWER430

View product
B

StarTech.com

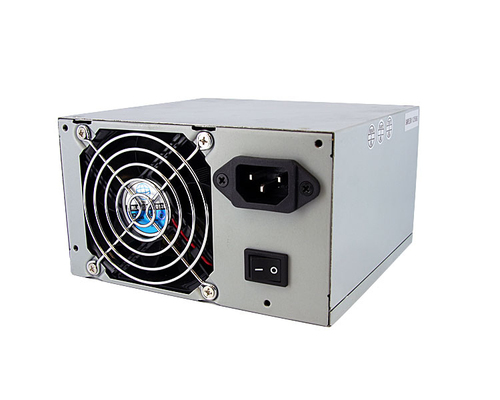

ATX2POWER530 power supply unit

Model ATX2POWER530

View product
Power3 differ
Total powerDiffers430 W530 W
Peak powerDiffers500 W600 W
EfficiencyDiffers84.81%85.61%
Power protection featuresOver current, Over power, Over voltage, Short circuitOver current, Over power, Over voltage, Short circuit
Ports & interfacesidentical
Number of SATA power connectors55
Peripheral (Molex) power connectors (4-pin)33
EPS power connector (8-pin)YesYes
PCI Express power connectors (6-pin)22
ATX Power connector (24-pin)YesYes
Floppy drive power connector11
Cabling typeNon-ModularNon-Modular
Performanceidentical
Power supply unit (PSU) form factorATXATX
Noise level31.3 dB31.3 dB
Mean time between failures (MTBF)100000 h100000 h
Designidentical
Product colourGreyGrey
Fan diameter8 cm8 cm
Operational conditionsidentical
Operating temperature (T-T)0 - 40 °C0 - 40 °C
Storage temperature (T-T)-20 - 80 °C-20 - 80 °C
Operating relative humidity (H-H)5 - 90%5 - 90%
Certificatesidentical
CertificationCE, FCC, RoHSCE, FCC, RoHS
Weight & dimensionsidentical
Weight1.71 kg1.71 kg
Packaging data1 differ
Package weightDiffers1.94 kg1.96 kg
Other features1 differ
Dimensions (WxDxH)Differs140 x 150 x 86 mm150 x 140 x 86 mm
Maximum current24 A24 A
Output voltage note+12.0V1, +12.0V2, +12.0V3, +12.0V4, -12.0V, +3.3V, +5.0V, +5.0Vsb+12.0V1, +12.0V2, +12.0V3, +12.0V4, -12.0V, +3.3V, +5.0V, +5.0Vsb
Ports quantity1313

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
