Product comparison · 2 power supply units

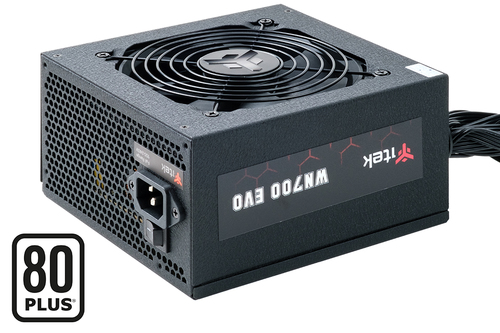

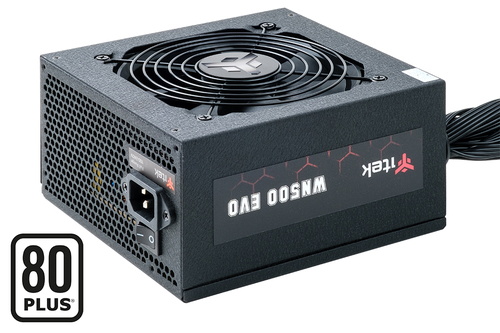

itek WN500 power supply unit vs itek WN700 power supply unit

Key differences

Total power
- WN500 power supply unit:500 W
- WN700 power supply unit:700 W
Weight
- WN500 power supply unit:1.96 kg
- WN700 power supply unit:2.02 kg
Package weight
- WN500 power supply unit:2.47 kg
- WN700 power supply unit:2.53 kg

Differences highlightedShow differences only

Comparison of WN500, WN700
27 specifications	A itek WN500 power supply unit Model WN500 View product	B itek WN700 power supply unit Model WN700 View product
Power1 differ
Total powerDiffers	500 W	700 W
AC input voltage	100 - 240 V	100 - 240 V
Power Factor Correction (PFC) type	Active	Active
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage	Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfacesidentical
Motherboard power connector	24-pin ATX	24-pin ATX
Motherboard power cable length	70 cm	70 cm
Number of SATA power connectors	7	7
Peripheral (Molex) power connectors (4-pin)	3	3
PCI Express power connectors (6+2 pin)	2	2
Cabling type	Non-Modular	Non-Modular
Performanceidentical
Purpose	PC	PC
Power supply unit (PSU) form factor	ATX	ATX
80 PLUS certification	80 PLUS White	80 PLUS White
ATX version	2.31	2.31
Bearing technologyKnown for one	FDB	Unknown — not stated by the source
Mean time between failures (MTBF)	100000 h	100000 h
Designidentical
Product colour	Black	Black
Cooling type	Active	Active
Fan diameter	12 cm	12 cm
Number of fans	1 fan(s)	1 fan(s)
On/off switch	Yes	Yes
Weight & dimensions1 differ
Width	157.5 mm	157.5 mm
Depth	150 mm	150 mm
Height	86 mm	86 mm
WeightDiffers	1.96 kg	2.02 kg
Packaging data1 differ
Package weightDiffers	2.47 kg	2.53 kg
Package type	Box	Box

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
