Product comparison · 2 power supply units

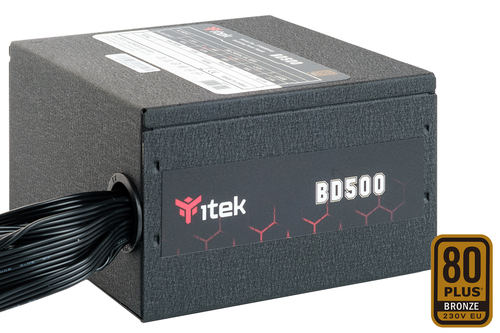

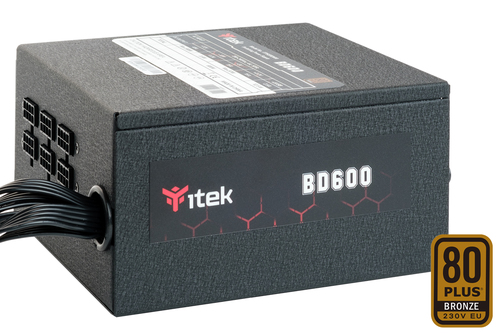

itek BD500 power supply unit vs itek BD600 power supply unit

Key differences

Total power
- BD500 power supply unit:500 W
- BD600 power supply unit:600 W
Cabling type
- BD500 power supply unit:Non-Modular
- BD600 power supply unit:Semi-Modular

Differences highlightedShow differences only

Comparison of BD500, BD600
24 specifications	A itek BD500 power supply unit Model BD500 View product	B itek BD600 power supply unit Model BD600 View product
Power1 differ
Total powerDiffers	500 W	600 W
AC input voltage	230 V	230 V
Power Factor Correction (PFC) type	Active	Active
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage	Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces1 differ
Motherboard power connector	24-pin ATX	24-pin ATX
Number of SATA power connectors	7	7
Peripheral (Molex) power connectors (4-pin)	2	2
PCI Express power connectors (6+2 pin)	2	2
Cabling typeDiffers	Non-Modular	Semi-Modular
Performanceidentical
Purpose	PC	PC
Power supply unit (PSU) form factor	ATX	ATX
80 PLUS certification	80 PLUS Bronze	80 PLUS Bronze
ATX version	2.31	2.31
Mean time between failures (MTBF)	100000 h	100000 h
Designidentical
Product colour	Black	Black
Cooling type	Active	Active
Fan diameter	12 cm	12 cm
Number of fans	1 fan(s)	1 fan(s)
On/off switch	Yes	Yes
Weight & dimensionsidentical
Width	160 mm	160 mm
Depth	150 mm	150 mm
Height	86 mm	86 mm
Weight	2.11 kg	2.11 kg
Packaging dataidentical
Package weight	2.7 kg	2.7 kg

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
