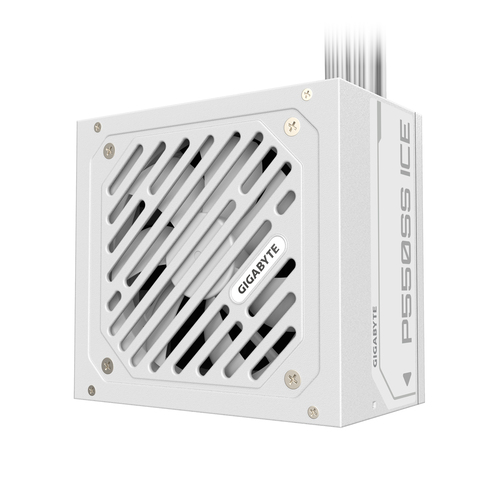

GIGABYTE P550SS power supply unit vs GIGABYTE P550SS ICE

Comparison of P550SS, P550SS ICE

50 specifications	A GIGABYTE P550SS power supply unit Model P550SS View product	B GIGABYTE P550SS ICEView product
Poweridentical
Total power	550 W	550 W
AC input voltageKnown for one	155-240 V	—Unknown — not stated by the source
AC input frequency	50/60 Hz	50/60 Hz
Input current	6.3 A	6.3 A
Power factor	0.9	0.9
Power Factor Correction (PFC) type	Active	Active
Combined power (+3.3V)	100 W	100 W
Combined power (+12V)	549.6 W	549.6 W
Combined power (+5V)	200 W	200 W
Combined power (-12V)	3.6 W	3.6 W
Combined power (+5Vsb)	15 W	15 W
Max output current (+3.3V)	20 A	20 A
Max output current (+12V)	45.8 A	45.8 A
Max output current (+5V)	20 A	20 A
Max output current (-12V)	0.3 A	0.3 A
Max output current (+5Vsb)	3 A	3 A
Efficiency	90%	90%
Hold time	16 ms	16 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfacesidentical
Motherboard power connector	20+4 pin ATX	20+4 pin ATX
Motherboard power cable length	60 cm	60 cm
Number of SATA power connectors	5	5
SATA power cable length	500 mm	500 mm
Peripheral (Molex) power connectors (4-pin)	3	3
Peripheral (Molex) power cable length	500 mm	500 mm
PCI Express power connectors (6+2 pin)	2	2
PCI Express power cable length	50 cm	50 cm
CPU power connector (4+4 pin)	Yes	Yes
CPU power cable length	60 cm	60 cm
ATX power connector (20+4 pin)	Yes	Yes
Floppy disk drive connector	Yes	Yes
Floppy drive power connector	1	1
PCI Express connector	Yes	Yes
Cabling type	Non-Modular	Non-Modular
Performanceidentical
Purpose	PC	PC
Power supply unit (PSU) form factor	ATX	ATX
80 PLUS certification	80 PLUS Bronze	80 PLUS Bronze
ATX version	3.0	3.0
Bearing technology	HDB	HDB
Mean time between failures (MTBF)	100000 h	100000 h
Design1 differ
Product colourDiffers	Black	White
Cooling type	Active	Active
Fan diameter	12 cm	12 cm
Number of fans	1 fan(s)	1 fan(s)
Fan location	Top	Top
On/off switch	Yes	Yes
Weight & dimensionsidentical
Width	150 mm	150 mm
Depth	140 mm	140 mm
Height	86 mm	86 mm
Logistics dataidentical
Harmonized System (HS) code	84733020	84733020

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
