Product comparison · 2 power supply units

Aerocool MIRAGEGOLD650 PC Power Supply vs Aerocool MIRAGEGOLD750 PC Power Supply

Add a product
  • 30specifications compared
  • 10differ
  • 20identical
  • 1known for one product only

Key differences

  • Total power
    • 650 W
    • 750 W
  • Input current
    • 10 - 5 A
    • 11 - 5.5 A
  • Combined power (+3.3V)
    • 120 W
    • 130 W
  • Combined power (+12V)
    • 648 W
    • 744 W
  • Combined power (+5V)
    • 120 W
    • 130 W
  • Max output current (+12V)
    • 54 A
    • 62 A
  • Number of PATA power connectors
    • 3
    • 4
  • Number of SATA power connectors
    • 6
    • 8

Side by side

Differences highlightedShow differences only
31 specifications
A

Aerocool

MIRAGEGOLD650 PC Power Supply

Model MIRAGEGOLD650

View product
B

Aerocool

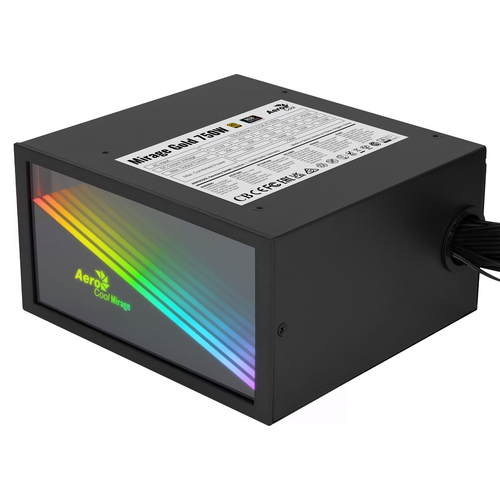

MIRAGEGOLD750 PC Power Supply

Model MIRAGEGOLD750

View product
Power7 differ
Total powerDiffers650 W750 W
AC input voltage100 - 240 V100 - 240 V
AC input frequency47 - 63 Hz47 - 63 Hz
Input currentDiffers10 - 5 A11 - 5.5 A
Combined power (+3.3V)Differs120 W130 W
Combined power (+12V)Differs648 W744 W
Combined power (+5V)Differs120 W130 W
Combined power (-12V)3.6 W3.6 W
Combined power (+5Vsb)12.5 W12.5 W
Max output current (+3.3V)20 A20 A
Max output current (+12V)Differs54 A62 A
Max output current (+5V)20 A20 A
Max output current (-12V)0.3 A0.3 A
Max output current (+5Vsb)2.5 A2.5 A
Efficiency90%90%
Power protection featuresDiffersOver current, Over power, Over voltage, Short circuit, Under voltageOver power, Over voltage, Under voltage, Over current, Short circuit
Ports & interfaces3 differ
Motherboard power connector20+4 pin ATX20+4 pin ATX
Number of PATA power connectorsDiffers34
Number of SATA power connectorsDiffers68
PCI Express power connectors (6+2 pin)Differs23
CPU power connector (4+4 pin)YesYes
Cabling typeNon-ModularNon-Modular
Performanceidentical
PurposePCPC
Power supply unit (PSU) form factorATXATX
80 PLUS certification80 PLUS Gold80 PLUS Gold
ATX version2.522.52
Designidentical
Product colourBlackBlack
Fan diameter12 cm12 cm
Number of fans1 fan(s)1 fan(s)
Fan speedKnown for one900 - 1800 RPM
Certificatesidentical
Compliance certificatesRoHSRoHS

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
