Product comparison · 2 power supply units

Aerocool Integrator Gold 850W vs Aerocool MIRAGEGOLD850 PC Power Supply

Add a product
  • 28specifications compared
  • 11differ
  • 17identical
  • 18known for one product only

Key differences

  • Combined power (+12V)
    • 846 W
    • 840 W
  • Combined power (+5Vsb)
    • 15 W
    • 12.5 W
  • Max output current (+12V)
    • 70.5 A
    • 70 A
  • Max output current (+5Vsb)
    • 3 A
    • 2.5 A
  • Efficiency
    • 92%
    • 90%
  • Number of SATA power connectors
    • 6
    • 8
  • PCI Express power connectors (6+2 pin)
    • 4
    • 3
  • Cabling type
    • Fully-Modular
    • Non-Modular

Side by side

Differences highlightedShow differences only
46 specifications
A

Aerocool

Integrator Gold 850WView product
B

Aerocool

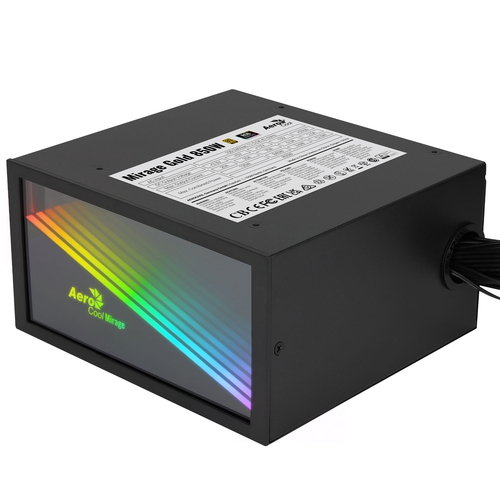

MIRAGEGOLD850 PC Power Supply

Model MIRAGEGOLD850

View product
Power6 differ
Total power850 W850 W
AC input voltage100 - 240 V100 - 240 V
AC input frequency47 - 63 Hz47 - 63 Hz
Input current11 - 5.5 A11 - 5.5 A
Power factorKnown for one0.9
Power Factor Correction (PFC) typeKnown for oneActive
Number of +12V rail(s)Known for one1
Combined power (+3.3V)130 W130 W
Combined power (+12V)Differs846 W840 W
Combined power (+5V)130 W130 W
Combined power (-12V)3.6 W3.6 W
Combined power (+5Vsb)Differs15 W12.5 W
Max output current (+3.3V)20 A20 A
Max output current (+12V)Differs70.5 A70 A
Max output current (-12V)0.3 A0.3 A
Max output current (+5Vsb)Differs3 A2.5 A
EfficiencyDiffers92%90%
Power protection featuresDiffersOver current, Over power, Over voltage, Overheating, Short circuit, Surge and inrush, Under voltageOver power, Over voltage, Under voltage, Over current, Short circuit
Max output current (+5V)Known for one20 A
Ports & interfaces3 differ
Motherboard power connector20+4 pin ATX20+4 pin ATX
Motherboard power cable lengthKnown for one55 cm
Number of SATA power connectorsDiffers68
SATA power cable lengthKnown for one500,650,800 mm
Peripheral (Molex) power connectors (4-pin)Known for one3
Peripheral (Molex) power cable lengthKnown for one500,650,800 mm
PCI Express power connectors (6+2 pin)Differs43
CPU P4 connector (4-pin)Known for one2
CPU power connector (4+4 pin)YesYes
ATX power connector (20+4 pin)Known for oneYes
Cabling typeDiffersFully-ModularNon-Modular
Number of PATA power connectorsKnown for one4
Performance1 differ
PurposePCPC
Power supply unit (PSU) form factorATXATX
80 PLUS certification80 PLUS Gold80 PLUS Gold
ATX versionDiffers3.02.52
Designidentical
Product colourBlackBlack
Cooling typeKnown for oneActive
Fan diameter12 cm12 cm
Number of fans1 fan(s)1 fan(s)
Fan locationKnown for oneTop
On/off switchKnown for oneYes
Fan speedKnown for one900 - 1800 RPM
Packaging contentidentical
Cables includedKnown for oneCPU, PCIe, Peripheral (Molex), SATA
Certificates1 differ
Compliance certificatesDiffersCE, RoHSRoHS
Technical detailsidentical
Sustainability certificatesKnown for oneErP
Sustainability complianceKnown for oneYes

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
