Product comparison · 2 power supply units

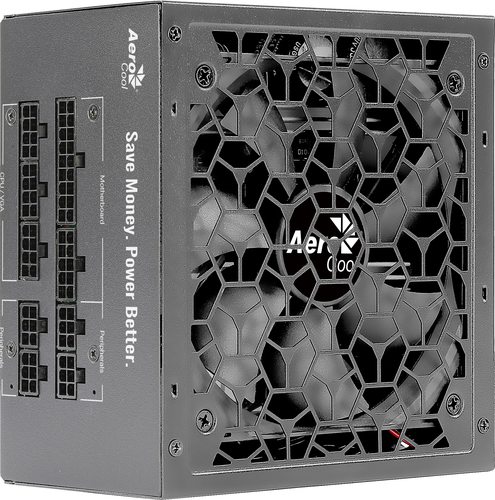

Aerocool AERO BRONZE 550M vs Aerocool AERO BRONZE 750M

Key differences

Total power
- AERO BRONZE 550M:550 W
- AERO BRONZE 750M:750 W
Input current
- AERO BRONZE 550M:4.5 A
- AERO BRONZE 750M:5.5 A
Combined power (+3.3V)
- AERO BRONZE 550M:110 W
- AERO BRONZE 750M:130 W
Combined power (+12V)
- AERO BRONZE 550M:540 W
- AERO BRONZE 750M:744 W
Combined power (+5V)
- AERO BRONZE 550M:110 W
- AERO BRONZE 750M:130 W
Max output current (+12V)
- AERO BRONZE 550M:45 A
- AERO BRONZE 750M:62 A
Number of SATA power connectors
- AERO BRONZE 550M:5
- AERO BRONZE 750M:6
PCI Express power connectors (6+2 pin)
- AERO BRONZE 550M:2
- AERO BRONZE 750M:4

Differences highlightedShow differences only

Comparison of AERO BRONZE 550M, AERO BRONZE 750M
34 specifications	A Aerocool AERO BRONZE 550M View product	B Aerocool AERO BRONZE 750M View product
Power6 differ
Total powerDiffers	550 W	750 W
AC input voltage	200 - 240 V	200 - 240 V
AC input frequency	47 - 63 Hz	47 - 63 Hz
Input currentDiffers	4.5 A	5.5 A
Combined power (+3.3V)Differs	110 W	130 W
Combined power (+12V)Differs	540 W	744 W
Combined power (+5V)Differs	110 W	130 W
Combined power (-12V)	3.6 W	3.6 W
Combined power (+5Vsb)	12.5 W	12.5 W
Max output current (+3.3V)	20 A	20 A
Max output current (+12V)Differs	45 A	62 A
Max output current (+5V)	20 A	20 A
Max output current (-12V)	0.3 A	0.3 A
Max output current (+5Vsb)	2.5 A	2.5 A
Efficiency	91%	91%
Ports & interfaces2 differ
Motherboard power connector	20+4 pin ATX	20+4 pin ATX
Number of PATA power connectors	4	4
Number of SATA power connectorsDiffers	5	6
PCI Express power connectors (6+2 pin)Differs	2	4
CPU power connector (4+4 pin)	Yes	Yes
Cabling type	Fully-Modular	Fully-Modular
Performanceidentical
Purpose	PC	PC
Power supply unit (PSU) form factor	ATX	ATX
80 PLUS certification	80 PLUS Bronze	80 PLUS Bronze
ATX versionKnown for one	Unknown — not stated by the source	2.52
Designidentical
Product colour	Black	Black
Cooling type	Active	Active
Fan diameter	12 cm	12 cm
Number of fansKnown for one	Unknown — not stated by the source	1 fan(s)
Certificatesidentical
Compliance certificates	RoHS	RoHS
Packaging dataidentical
Package width	235 mm	235 mm
Package depth	195 mm	195 mm
Package height	95 mm	95 mm
Package type	Box	Box

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
