Product comparison · 2 poe adapters

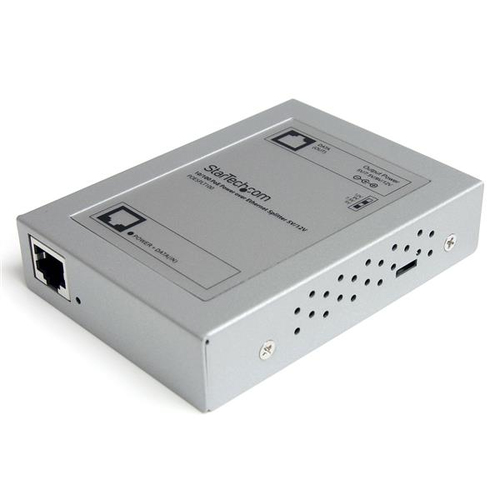

StarTech.com 10/100 PoE Power over Ethernet Injector vs StarTech.com 10/100 PoE Power over Ethernet Splitter

Key differences

Cabling technology
- 10/100 PoE Power over Ethernet Injector:10BaseT, 100BaseTX
- 10/100 PoE Power over Ethernet Splitter:10Base-T/100Base-TX
Power over Ethernet (PoE) voltage
- 10/100 PoE Power over Ethernet Injector:48 V
- 10/100 PoE Power over Ethernet Splitter:12 V
Operating temperature (T-T)
- 10/100 PoE Power over Ethernet Injector:0 - 40 °C
- 10/100 PoE Power over Ethernet Splitter:0 - 45 °C
Storage temperature (T-T)
- 10/100 PoE Power over Ethernet Injector:-20 - 85 °C
- 10/100 PoE Power over Ethernet Splitter:-20 - 90 °C
Weight
- 10/100 PoE Power over Ethernet Injector:192 g
- 10/100 PoE Power over Ethernet Splitter:240 g
Dimensions (WxDxH)
- 10/100 PoE Power over Ethernet Injector:75 x 102 x 23 mm
- 10/100 PoE Power over Ethernet Splitter:75 x 102 x 22 mm
Package width
- 10/100 PoE Power over Ethernet Injector:130 mm
- 10/100 PoE Power over Ethernet Splitter:160 mm

Differences highlightedShow differences only

Comparison of POEINJ100, POESPLT100
15 specifications	A StarTech.com 10/100 PoE Power over Ethernet Injector Model POEINJ100 View product	B StarTech.com 10/100 PoE Power over Ethernet Splitter Model POESPLT100 View product
Network1 differ
Cabling technologyDiffers	10BaseT, 100BaseTX	10Base-T/100Base-TX
Featuresidentical
LED indicators	Yes	Yes
Ports & interfacesidentical
Ethernet LAN (RJ-45) ports	2	2
Power1 differ
Power over Ethernet (PoE) voltageDiffers	48 V	12 V
Input voltageKnown for one	110 - 240 V	Unknown — not stated by the source
Input frequencyKnown for one	50/60 Hz	Unknown — not stated by the source
Input currentKnown for one	0.8 A	Unknown — not stated by the source
Certificates1 differ
Compliance industry standardsDiffers	IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at	IEEE 802.3u, IEEE 802.3af, IEEE 802.3at
Operational conditions2 differ
Operating temperature (T-T)Differs	0 - 40 °C	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%	10 - 90%
Storage temperature (T-T)Differs	-20 - 85 °C	-20 - 90 °C
Weight & dimensions2 differ
WeightDiffers	192 g	240 g
Dimensions (WxDxH)Differs	75 x 102 x 23 mm	75 x 102 x 22 mm
Packaging data1 differ
Package widthDiffers	130 mm	160 mm
Package height	65 mm	65 mm

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
