Product comparison · 2 pcs/workstations

TERRA Micro 6100V1 vs TERRA PC-BUSINESS 5000 EDU SILENT GREENLINE (STF)

Add a product
  • 50specifications compared
  • 25differ
  • 25identical
  • 75known for one product only

Key differences

  • Processor model
    • 125H
    • 225
  • Processor threads
    • 18
    • 10
  • Maximum internal memory
    • 96 GB
    • 256 GB
  • Memory layout (slots x size)
    • 1 x 16 GB
    • 2 x 8 GB
  • Memory slots
    • 2x SO-DIMM
    • 4x DIMM
  • On-board graphics card family
    • Intel Arc Graphics
    • Intel® Graphics
  • On-board graphics card model
    • Intel Arc Graphics
    • Intel® Graphics
  • Product type
    • Mini PC
    • PC

Side by side

Differences highlightedShow differences only
125 specifications
A

TERRA

Micro 6100V1View product
B

TERRA

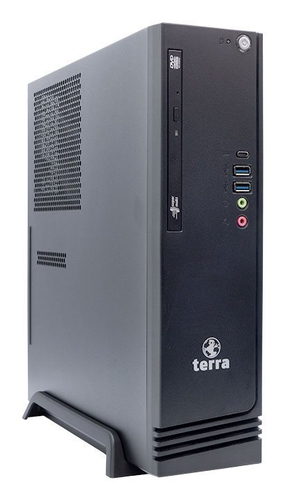

PC-BUSINESS 5000 EDU SILENT GREENLINE (STF)View product
Processor3 differ
Processor manufacturerIntelIntel
Processor familyIntel Core Ultra 5Intel Core Ultra 5
Processor generationDiffersIntel® Core™ Ultra (Series 1)Intel Core Ultra (Series 2)
Processor modelDiffers125H225
Processor coresKnown for one10
Processor threadsDiffers1810
Processor boost frequencyKnown for one4.9 GHz
Performance coresKnown for one6
Efficient coresKnown for one4
Performance-core Max Turbo FrequencyKnown for one4.9 GHz
Efficient-core Max Turbo FrequencyKnown for one4.4 GHz
Performance-core base frequencyKnown for one3.3 GHz
Efficient-core base frequencyKnown for one2.7 GHz
Processor cacheKnown for one20 MB
Processor cache typeSmart CacheSmart Cache
Number of processors installedKnown for one1
Processor socketKnown for oneLGA 1851 (Socket V1)
Maximum turbo powerKnown for one121 W
Processor base powerKnown for one65 W
Neural processor unit (NPU)1 differ
Neural processor unit (NPU)Intel AI BoostIntel AI Boost
Sparsity supportYesYes
Windows Studio effects supportYesYes
AI software frameworks supported by NPUDiffersDirectML, ONNX RT, OpenVINO, Windows MLOpenVINO, Windows ML, DirectML, WebNN, ONNX RT
NPU performance up toKnown for one13 TOPs
Copilot+ PCKnown for oneNo
Memory3 differ
Internal memory16 GB16 GB
Maximum internal memoryDiffers96 GB256 GB
Internal memory typeDDR5-SDRAMDDR5-SDRAM
Memory layout (slots x size)Differs1 x 16 GB2 x 8 GB
Memory slotsDiffers2x SO-DIMM4x DIMM
Memory clock speed5600 MHz5600 MHz
Storageidentical
Total storage capacity500 GB500 GB
Optical drive typeNoNo
Storage mediaSSDSSD
Total SSDs capacity500 GB500 GB
Number of SSDs installedKnown for one1
SSD capacityKnown for one500 GB
NVMeYesYes
SSD interfaceKnown for onePCI Express
SSD form factorM.2M.2
RAID supportKnown for oneYes
RAID levelsKnown for one5, 1, 0, 10
Storage optionsKnown for one2x M.2 (Key M) 2280/2260/2242 PCIe 5.0 x4 mode (1x 5.0 x4 mode / 1x 4.0 x4 mode) ¦ 4x SATA 6Gb/s ports, supports SATA Raid 0/1/5/10
Graphics2 differ
Discrete graphics cardNoNo
On-board graphics cardYesYes
Discrete graphics card modelNot availableNot available
On-board GPU manufacturerIntelIntel
On-board graphics card familyDiffersIntel Arc GraphicsIntel® Graphics
On-board graphics card modelDiffersIntel Arc GraphicsIntel® Graphics
Number of external displays supportedKnown for one3
Graphics card DisplayPorts quantityKnown for one2
Graphics card HDMI ports quantityKnown for one1
Resolution descriptionKnown for oneMax. 7680 x 4320
Performance1 differ
Product typeDiffersMini PCPC
Motherboard chipsetKnown for oneIntel B860
Trusted Platform Module (TPM)YesYes
Trusted Platform Module (TPM) version2.02.0
Audio output channelsKnown for one8.0 channels
Sound pressure levelKnown for one22.9 dB
Market positioningKnown for oneBusiness
Network2 differ
Ethernet LANYesYes
Ethernet LAN data ratesDiffers10,100,1000,2500 Mbit/s100,1000 Mbit/s
LAN controllerDiffersIntel® I219-V, Intel I226-VIntel I219V
Wi-FiKnown for oneYes
Top Wi-Fi standardKnown for oneWi-Fi 6E (802.11ax)
WLAN controller manufacturerKnown for oneIntel
WLAN controller modelKnown for oneIntel Wi-Fi 6E AX211
BluetoothKnown for oneYes
Bluetooth versionKnown for one5.3
Ports & interfaces6 differ
USB 2.0 ports quantityDiffers32
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityDiffers03
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantityDiffers02
DisplayPorts quantityKnown for one2
DisplayPort versionKnown for one1.4
HDMI ports quantityDiffers21
HDMI versionDiffers2.12.0b
Ethernet LAN (RJ-45) portsDiffers21
PS/2 ports quantityKnown for one2
Number of front USB portsKnown for one3
Number of front audio portsKnown for one2
Number of rear USB portsKnown for one4
Number of rear audio portsKnown for one1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantityKnown for one3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantityKnown for one0
USB 3.2 Gen 2x2 Type-C ports quantityKnown for one1
USB4 Gen 3x2 ports quantityKnown for one2
Thunderbolt 3 ports quantityKnown for one0
DC-in jackKnown for oneYes
Expansion slotsidentical
PCI Express x1 (Gen 4.x) slotsKnown for one1
PCI Express x16 (Gen 4.x) slotsKnown for one1
PCI Express x16 (Gen 5.x) slotsKnown for one1
Expansion slotsKnown for one1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (supports x4), 1x PCIe 4.0 x1
Power1 differ
Power supplyDiffers120 W400 W
Power supply input voltage100 - 240 V100 - 240 V
Power supply input frequency50/60 Hz50/60 Hz
Power consumption (long idle)Known for one18 W
Power consumption (off)Known for one0.25 W
Power consumption (standby)Known for one1.2 W
Power consumption (typical)Known for one18 W
80 PLUS certificationKnown for one80 PLUS Bronze
Design1 differ
Chassis typeDiffersMicro PCSFF
Product colourBlackBlack
VESA mountingKnown for oneYes
Certified refurbishedKnown for oneNo
Software1 differ
Operating system installedDiffersWindows 11 ProWindows 11 Pro Education
Compatible operating systemsKnown for oneWindows 10, Windows 11
Displayidentical
Display includedKnown for oneNo
Processor special featuresidentical
Intel Secure BootKnown for oneYes
Audioidentical
Audio systemKnown for oneHigh Definition Audio
Operational conditionsidentical
Operating temperature (T-T)Known for one5 - 35 °C
Operating relative humidity (H-H)Known for one10 - 75%
Weight & dimensions4 differ
WidthDiffers115 mm326 mm
DepthDiffers115 mm332 mm
HeightDiffers50.6 mm90 mm
WeightDiffers600 g6 kg
Packaging contentidentical
Mouse connectivityKnown for oneWired
Mouse includedKnown for oneYes
Keyboard includedKnown for oneYes
Certificatesidentical
Compliance certificatesKnown for oneCE
CertificationKnown for oneAssemblierung nach ISO9001 in Deutschland Kompatibilität: SMBios (DMI), EnergyStar (Valid only for U.S.), EN62368-1, EN55032, EN55035, EN61000-3-2/3, EN62623, 89/336/ECC Das Produkt entspricht den Kriterien des RAL UZ 78 (Blauer Engel)
Keyboardidentical
Keyboard connectivityKnown for oneWired
Keyboard languageKnown for oneGerman
Featuresidentical
Motherboard manufacturerKnown for oneASUS Pro B860M-C-CSM 24/7 ready
Other featuresidentical
LocaleKnown for oneGerman
MotherboardKnown for oneASUS Pro B860M-C-CSM 24/7 ready

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
