Product comparison · 2 pcs/workstations

Shuttle BPCAL02-i5WA Industry IoT Box-PC, Core i5-1235U, Win10 IoT vs Shuttle PC System POS DS500

Add a product
  • 70specifications compared
  • 28differ
  • 42identical
  • 23known for one product only

Key differences

  • Processor family
    • Intel® Core™ i5
    • Intel® Celeron®
  • Processor model
    • i5-1235U
    • 7305
  • Processor cores
    • 10
    • 5
  • Processor threads
    • 12
    • 5
  • Performance cores
    • 2
    • 1
  • Efficient cores
    • 8
    • 4
  • Processor cache
    • 12 MB
    • 8 MB
  • Total storage capacity
    • 250 GB
    • 120 GB

Side by side

Differences highlightedShow differences only
93 specifications
A

Shuttle

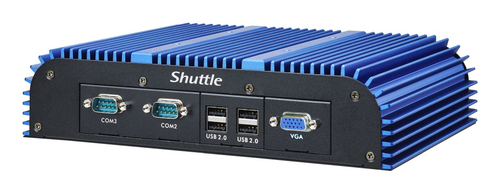

BPCAL02-i5WA Industry IoT Box-PC, Core i5-1235U, Win10 IoT

Model BPCAL02-i5WA

View product
B

Shuttle

PC System POS DS500View product
Processor7 differ
Processor manufacturerIntelIntel
Processor familyDiffersIntel® Core™ i5Intel® Celeron®
Processor modelDiffersi5-1235U7305
Processor coresDiffers105
Processor threadsDiffers125
Performance coresDiffers21
Efficient coresDiffers84
Processor cacheDiffers12 MB8 MB
Processor cache typeSmart CacheSmart Cache
Maximum turbo power55 W55 W
Processor base power15 W15 W
Processor generationKnown for one12th gen Intel® Core™ i5
Processor boost frequencyKnown for one4.4 GHz
Performance-core Max Turbo FrequencyKnown for one4.4 GHz
Efficient-core Max Turbo FrequencyKnown for one3.3 GHz
Number of processors installedKnown for one1
Memoryidentical
Internal memory8 GB8 GB
Maximum internal memory64 GB64 GB
Internal memory typeDDR5-SDRAMDDR5-SDRAM
Memory clock speed4800 MHz4800 MHz
Memory slotsKnown for one2x SO-DIMM
Storage3 differ
Total storage capacityDiffers250 GB120 GB
Optical drive typeNoNo
Storage mediaSSDSSD
Number of storage drives installedKnown for one1
Total SSDs capacityDiffers250 GB120 GB
Number of SSDs installed11
SSD capacityDiffers250 GB120 GB
NVMeYesYes
SSD interfacePCI ExpressPCI Express
SSD form factorM.2M.2
M.2 SSD size2280 (22 x 80 mm)2280 (22 x 80 mm)
Card reader integratedKnown for oneNo
Graphicsidentical
Discrete graphics cardNoNo
On-board graphics cardYesYes
Discrete graphics card modelNot availableNot available
On-board GPU manufacturerIntelIntel
On-board graphics card familyKnown for oneIntel® UHD Graphics
On-board graphics card modelKnown for oneIntel® UHD Graphics
Performance1 differ
Product typeMini PCMini PC
Market positioningDiffersIndustryBusiness
BIOS typeUEFI AMIUEFI AMI
Trusted Platform Module (TPM)YesYes
Trusted Platform Module (TPM) version2.02.0
Password protectionKnown for oneYes
Network2 differ
Ethernet LANYesYes
Ethernet LAN data ratesDiffers2500 Mbit/s10,100,1000,2500 Mbit/s
LAN controllerDiffersIntel I226-VIntel® I219, Intel I226
Wi-FiNoNo
Ports & interfaces4 differ
USB 2.0 ports quantityDiffers42
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityDiffers04
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity00
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantityDiffers42
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity00
Thunderbolt 3 ports quantity00
DisplayPorts quantityKnown for one1
DisplayPort versionKnown for one1.4
HDMI ports quantity11
HDMI version2.0b2.0b
Ethernet LAN (RJ-45) ports22
Line-outKnown for oneYes
Microphone inYesYes
VGA (D-Sub) ports quantity11
Serial ports quantityDiffers31
Headphone outputsKnown for one1
DC-in jackKnown for oneYes
Poweridentical
Power supply90 W90 W
Power supply input voltage100 - 240 V100 - 240 V
Power supply input frequency50/60 Hz50/60 Hz
Design4 differ
Chassis typeDiffersUSFFSlim PC
VolumeDiffers2.7 L1.3 L
Placement supportedKnown for oneHorizontal/Vertical
VESA mountingYesYes
Cable lock slotKnown for oneYes
Cable lock slot typeKnown for oneKensington
Product colourDiffersBlack, BlueBlack
Housing materialDiffersAluminium, SteelSteel
Software1 differ
Operating system installedDiffersWindows 10 IoT EnterpriseNo
Operating system architectureKnown for one64-bit
Drivers includedKnown for oneYes
Displayidentical
Display includedNoNo
Audioidentical
Audio chipRealtek ALC888SRealtek ALC888S
Audio systemKnown for oneHigh Definition Audio
Operational conditions1 differ
Operating temperature (T-T)0 - 40 °C0 - 40 °C
Operating relative humidity (H-H)Differs0 - 90%10 - 90%
Weight & dimensions4 differ
WidthDiffers245 mm165 mm
DepthDiffers169 mm200 mm
HeightDiffers57 mm39.5 mm
WeightDiffers2.85 kg1.6 kg
Packaging dataidentical
Package weightKnown for one2.3 kg
Certificatesidentical
Compliance certificatesBSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVusBSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus
Sustainability1 differ
Sustainability certificatesDiffersErPENERGY STAR, ErP
Logistics dataidentical
Harmonized System (HS) code8471490084714900

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
