Product comparison · 2 pcs/workstations

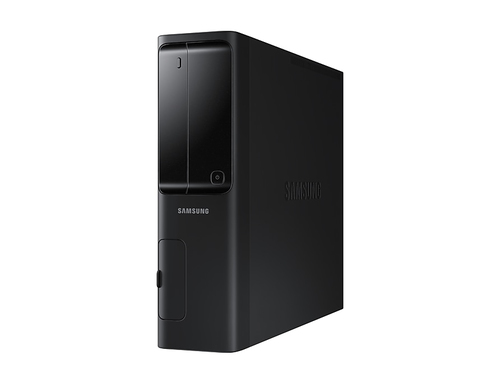

Samsung DM500S8Z Intel® Pentium® Gold G5400 vs Samsung DM500S9A Intel® Core™ i5 i5-9600K

94specifications compared
26differ
68identical
18known for one product only

Key differences

Processor family
- DM500S8Z Intel® Pentium® Gold G5400:Intel® Pentium® Gold
- DM500S9A Intel® Core™ i5 i5-9600K:Intel® Core™ i5
Processor model
- DM500S8Z Intel® Pentium® Gold G5400:G5400
- DM500S9A Intel® Core™ i5 i5-9600K:i5-9600K
Processor cores
- DM500S8Z Intel® Pentium® Gold G5400:2
- DM500S9A Intel® Core™ i5 i5-9600K:6
Processor threads
- DM500S8Z Intel® Pentium® Gold G5400:4
- DM500S9A Intel® Core™ i5 i5-9600K:6
Processor cache
- DM500S8Z Intel® Pentium® Gold G5400:4 MB
- DM500S9A Intel® Core™ i5 i5-9600K:9 MB
Maximum internal memory supported by processor
- DM500S8Z Intel® Pentium® Gold G5400:64 GB
- DM500S9A Intel® Core™ i5 i5-9600K:128 GB
Memory clock speeds supported by processor
- DM500S8Z Intel® Pentium® Gold G5400:2400 MHz
- DM500S9A Intel® Core™ i5 i5-9600K:2666 MHz
Memory bandwidth supported by processor (max)
- DM500S8Z Intel® Pentium® Gold G5400:37.5 GB/s
- DM500S9A Intel® Core™ i5 i5-9600K:41.6 GB/s

Side by side

Differences highlightedShow differences only

Comparison of DM500S8Z, DM500S9A
112 specifications	A Samsung DM500S8Z Intel® Pentium® Gold G5400 Model DM500S8Z View product	B Samsung DM500S9A Intel® Core™ i5 i5-9600K Model DM500S9A View product
Processor8 differ
Processor manufacturer	Intel	Intel
Processor familyDiffers	Intel® Pentium® Gold	Intel® Core™ i5
Processor modelDiffers	G5400	i5-9600K
Processor coresDiffers	2	6
Processor threadsDiffers	4	6
Processor frequency	3.7 GHz	3.7 GHz
Processor cacheDiffers	4 MB	9 MB
Processor cache type	Smart Cache	Smart Cache
Bus typeKnown for one	DMI3	Unknown — not stated by the source
System bus rate	8 GT/s	8 GT/s
Processor lithography	14 nm	14 nm
Processor operating modes	64-bit	64-bit
Processor codename	Coffee Lake	Coffee Lake
Tjunction	100 °C	100 °C
Maximum number of PCI Express lanes	16	16
PCI Express slots version	3.0	3.0
Number of processors installed	1	1
Processor socket	LGA 1151 (Socket H4)	LGA 1151 (Socket H4)
Maximum internal memory supported by processorDiffers	64 GB	128 GB
Memory types supported by processor	DDR4-SDRAM	DDR4-SDRAM
Memory clock speeds supported by processorDiffers	2400 MHz	2666 MHz
Memory bandwidth supported by processor (max)Differs	37.5 GB/s	41.6 GB/s
Processor generationKnown for one	Unknown — not stated by the source	9th gen Intel® Core™ i5
Processor boost frequencyKnown for one	Unknown — not stated by the source	4.6 GHz
Thermal Design Power (TDP)Known for one	Unknown — not stated by the source	95 W
PCI Express configurationsKnown for one	Unknown — not stated by the source	1x16, 2x8, 1x8+2x4
Memory2 differ
Internal memoryDiffers	4 GB	8 GB
Internal memory type	DDR4-SDRAM	DDR4-SDRAM
Memory layout (slots x size)Differs	1 x 4 GB	2 x 4 GB
Memory slotsKnown for one	Unknown — not stated by the source	2x DIMM
Storage2 differ
Total storage capacityDiffers	500 GB	256 GB
Optical drive type	DVD Super Multi	DVD Super Multi
Storage mediaDiffers	HDD	SSD
Total HDDs capacityKnown for one	500 GB	Unknown — not stated by the source
Number of HDDs installedKnown for one	1	Unknown — not stated by the source
Card reader integrated	Yes	Yes
Total SSDs capacityKnown for one	Unknown — not stated by the source	256 GB
Number of SSDs installedKnown for one	Unknown — not stated by the source	1
Compatible memory cardsKnown for one	Unknown — not stated by the source	MicroSD (TransFlash), SD
Graphics3 differ
Discrete graphics card	No	No
On-board graphics card	Yes	Yes
Discrete graphics card model	Not available	Not available
On-board graphics card modelDiffers	Intel® UHD Graphics 610	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB	64 GB
Number of displays supported (on-board graphics)	3	3
On-board graphics card base frequency	350 MHz	350 MHz
On-board graphics card dynamic frequency (max)Differs	1050 MHz	1150 MHz
On-board graphics card DirectX version	12.0	12.0
On-board graphics card IDDiffers	0x3E90/x93	0x3E98
On-board graphics card OpenGL version	4.5	4.5
Performanceidentical
Product type	PC	PC
Networkidentical
Ethernet LAN	Yes	Yes
Wi-Fi	Yes	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)	Wi-Fi 5 (802.11ac)
Bluetooth	Yes	Yes
Bluetooth version	5.0	5.0
Ports & interfacesidentical
USB 2.0 ports quantity	4	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0	0
Thunderbolt 3 ports quantity	0	0
HDMI ports quantity	1	1
Ethernet LAN (RJ-45) ports	1	1
Headphone outputs	1	1
Microphone in	Yes	Yes
VGA (D-Sub) ports quantity	1	1
DVI port	No	No
Poweridentical
Power supply	270 W	270 W
Design1 differ
Product colourDiffers	Black	White
Software1 differ
Operating system installedDiffers	Linux	Windows 10 Home
Operating system architectureKnown for one	Unknown — not stated by the source	64-bit
Displayidentical
Display included	No	No
Processor special features9 differ
CPU configuration (max)	1	1
Embedded options availableDiffers	Yes	No
Enhanced Intel SpeedStep Technology	Yes	Yes
Execute Disable Bit	Yes	Yes
Idle States	Yes	Yes
Intel 64	Yes	Yes
Intel Clear Video Technology	Yes	Yes
Intel Enhanced Halt StateKnown for one	Yes	Unknown — not stated by the source
Intel Identity Protection Technology versionKnown for one	1.00	Unknown — not stated by the source
Intel Secure Key Technology versionKnown for one	1.00	Unknown — not stated by the source
Intel Software Guard Extensions (Intel SGX)	Yes	Yes
Intel Stable Image Platform Program (SIPP)Differs	No	Yes
Intel Stable Image Platform Program (SIPP) versionKnown for one	0.00	Unknown — not stated by the source
Intel TSX-NIDiffers	No	Yes
Intel TSX-NI versionKnown for one	0.00	Unknown — not stated by the source
Intel Trusted Execution TechnologyDiffers	No	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes	Yes
Intel Virtualization Technology (VT-x)	Yes	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Known for one	Yes	Unknown — not stated by the source
Intel® InTru™ 3D Technology	Yes	Yes
Intel® OS Guard	Yes	Yes
Intel® Secure Key	Yes	Yes
Processor ARK IDDiffers	129951	134896
Processor package size	37.5 x 37.5 mm	37.5 x 37.5 mm
Scalability	1S	1S
Supported instruction setsDiffers	SSE4.1, SSE4.2	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes	Yes
Thermal solution specificationDiffers	PCG 2015C	PCG 2015D
Intel® Turbo Boost TechnologyDiffers	No	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)Differs	Yes	No
Intel® Quick Sync Video Technology	Yes	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes	Yes
Weight & dimensionsidentical
Width	98 mm	98 mm
Depth	420 mm	420 mm
Height	338 mm	338 mm
Weight	7.55 kg	7.55 kg

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
