Product comparison · 2 pcs/workstations

Nilox I5NXNUC4GB500 PC/workstation Intel® Core™ i5 i5-5250U vs Nilox I7NX8GB1000 PC Intel® Core™ i7 i7-7700

Add a product
  • 104specifications compared
  • 59differ
  • 45identical
  • 39known for one product only

Key differences

  • Processor family
    • Intel® Core™ i5
    • Intel® Core™ i7
  • Processor generation
    • 5th gen Intel® Core™ i5
    • 7th gen Intel® Core™ i7
  • Processor model
    • i5-5250U
    • i7-7700
  • Processor cores
    • 2
    • 4
  • Processor threads
    • 4
    • 8
  • Processor boost frequency
    • 2.7 GHz
    • 4.2 GHz
  • Processor frequency
    • 1.6 GHz
    • 3.6 GHz
  • Processor cache
    • 3 MB
    • 8 MB

Side by side

Differences highlightedShow differences only
143 specifications
A

Nilox

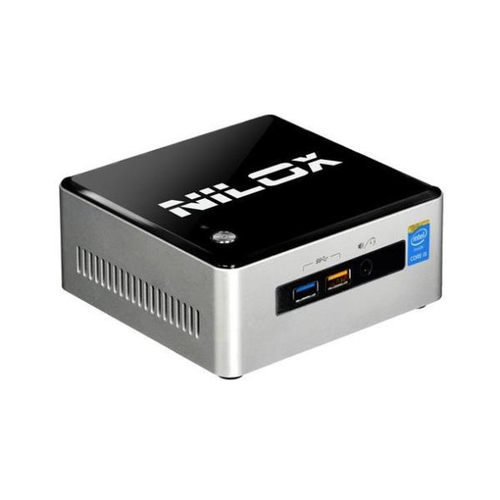

I5NXNUC4GB500 PC/workstation Intel® Core™ i5 i5-5250U

Model I5NXNUC4GB500

View product
B

Nilox

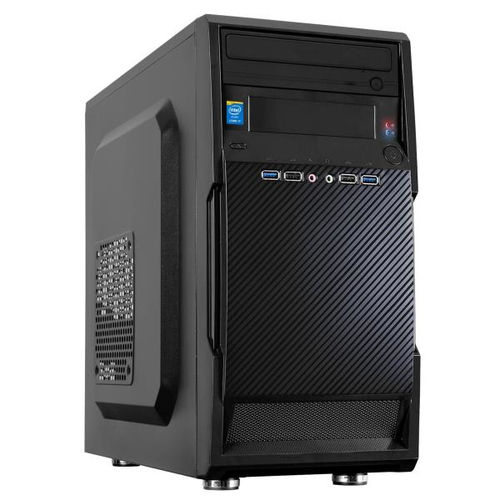

I7NX8GB1000 PC Intel® Core™ i7 i7-7700

Model I7NX8GB1000

View product
Processor23 differ
Processor manufacturerIntelIntel
Processor familyDiffersIntel® Core™ i5Intel® Core™ i7
Processor generationDiffers5th gen Intel® Core™ i57th gen Intel® Core™ i7
Processor modelDiffersi5-5250Ui7-7700
Processor coresDiffers24
Processor threadsDiffers48
Processor boost frequencyDiffers2.7 GHz4.2 GHz
Processor frequencyDiffers1.6 GHz3.6 GHz
Processor cacheDiffers3 MB8 MB
Processor cache typeDiffersL3Smart Cache
Bus typeDiffersDMI2DMI3
System bus rateDiffers5 GT/s8 GT/s
Processor lithography14 nm14 nm
Processor operating modesDiffers32-bit, 64-bit64-bit
Processor seriesKnown for oneIntel® Core™ i5-5200 Mobile Series
Processor codenameDiffersBroadwellKaby Lake
Thermal Design Power (TDP)Differs15 W65 W
Configurable TDP-downKnown for one9.5 W
Configurable TDP-down frequencyKnown for one0.6 GHz
TjunctionDiffers105 °C100 °C
Maximum number of PCI Express lanesDiffers1216
PCI Express configurationsDiffers4x1, 2x41x16, 1x8+2x4, 2x8
PCI Express slots versionDiffers2.03.0
Number of processors installed11
Processor socketDiffersBGA 1168LGA 1151 (Socket H4)
SteppingDiffersF0B0
Maximum internal memory supported by processorDiffers16 GB64 GB
Memory types supported by processorDiffersDDR3L-SDRAM, LPDDR3-SDRAMDDR3L, DDR4-SDRAM
Memory clock speeds supported by processorDiffers1333,1600 MHz1333,1600,2133,2400 MHz
Memory bandwidth supported by processor (max)Known for one25.6 GB/s
ECC supported by processorKnown for oneNo
Memory voltage supported by processorKnown for one1.35 V
Memory4 differ
Internal memoryDiffers4 GB8 GB
Maximum internal memoryDiffers16 GB32 GB
Internal memory typeDiffersDDR3L-SDRAMDDR4-SDRAM
Memory clock speedDiffers1600 MHz2133 MHz
Memory channelsDual-channelDual-channel
Memory layout (slots x size)Known for one1 x 8 GB
Memory slotsKnown for one2x DIMM
Storage3 differ
Total storage capacityDiffers500 GB1 TB
Optical drive typeDiffersNoDVD Super Multi DL
Storage mediaHDDHDD
Number of HDDs installed11
HDD capacityDiffers500 GB1 TB
HDD interfaceKnown for oneSATA II
Graphics6 differ
Discrete graphics cardNoNo
On-board graphics cardYesYes
Discrete graphics card modelNot availableNot available
On-board graphics card familyKnown for oneIntel® HD Graphics
On-board graphics card modelDiffersIntel® HD Graphics 6000Intel® HD Graphics 630
Maximum on-board graphics card memoryDiffers16 GB64 GB
Number of displays supported (on-board graphics)33
On-board graphics card base frequencyDiffers300 MHz350 MHz
On-board graphics card dynamic frequency (max)Differs950 MHz1150 MHz
On-board graphics card IDDiffers0x16260x5912
On-board graphics card OpenGL versionDiffers4.34.4
On-board graphics card DirectX versionKnown for one12.0
Performance1 differ
Product typeDiffersMini PCPC
Motherboard chipsetKnown for oneIntel® H110
Networkidentical
Ethernet LANYesYes
Ethernet LAN data rates10,100,1000 Mbit/s10,100,1000 Mbit/s
Wi-FiKnown for oneYes
Top Wi-Fi standardKnown for oneWi-Fi 5 (802.11ac)
Wi-Fi standardsKnown for oneWi-Fi 5 (802.11ac)
BluetoothKnown for oneYes
Ports & interfaces7 differ
USB 2.0 ports quantityDiffers04
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityDiffers42
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity00
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity00
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity00
Thunderbolt 3 ports quantity00
HDMI ports quantityDiffers01
Ethernet LAN (RJ-45) ports11
Combo headphone/mic portKnown for oneYes
Headphone outputsDiffers01
Microphone inDiffersNoYes
VGA (D-Sub) ports quantityDiffers01
DVI portDiffersNoYes
Mini HDMI ports quantityKnown for one1
Mini DisplayPorts quantityKnown for one1
DC-in jackKnown for oneYes
PS/2 ports quantityKnown for one2
Power1 differ
Power supplyDiffers65 W500 W
Design1 differ
Product colourDiffersBlack, GreyBlack
Chassis typeKnown for oneMini Tower
Softwareidentical
Operating system installedNoNo
Displayidentical
Display includedNoNo
Processor special features9 differ
CPU configuration (max)11
Embedded options availableDiffersNoYes
Enhanced Intel SpeedStep TechnologyYesYes
Execute Disable BitYesYes
Graphics & IMC lithographyKnown for one14 nm
Idle StatesYesYes
Intel 64YesYes
Intel Clear Video TechnologyYesYes
Intel Enhanced Halt StateYesYes
Intel FDI TechnologyKnown for oneYes
Intel Fast Memory AccessKnown for oneYes
Intel Flex Memory AccessKnown for oneYes
Intel Identity Protection Technology version1.001.00
Intel Secure Key Technology version1.001.00
Intel Small Business Advantage (SBA) versionKnown for one1.00
Intel Smart Response Technology versionKnown for one1.00
Intel Stable Image Platform Program (SIPP)DiffersNoYes
Intel Stable Image Platform Program (SIPP) versionDiffers0.001.00
Intel TSX-NIDiffersNoYes
Intel TSX-NI versionDiffers0.001.00
Intel Trusted Execution TechnologyDiffersNoYes
Intel VT-x with Extended Page Tables (EPT)YesYes
Intel Virtualization Technology (VT-x)YesYes
Intel Virtualization Technology for Directed I/O (VT-d)YesYes
Intel® AES New Instructions (Intel® AES-NI)YesYes
Intel® Clear Video HD Technology (Intel® CVT HD)YesYes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)YesYes
Intel® InTru™ 3D TechnologyYesYes
Intel® Insider™Known for oneYes
Intel® OS GuardYesYes
Intel® Secure KeyYesYes
Intel® Small Business Advantage (Intel® SBA)Known for oneYes
Intel® Smart CacheKnown for oneYes
Intel® Wireless Display (Intel® WiDi)Known for oneYes
Processor ARK IDDiffers8498497128
Processor codeDiffersSR26CSR338
Processor package sizeDiffers40 x24 x 1.3 mm37.5 x 37.5 mm
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYesYes
Intel® Smart Response TechnologyKnown for oneYes
Intel® Turbo Boost Technology2.02.0
Intel® Hyper Threading Technology (Intel® HT Technology)YesYes
Intel® Quick Sync Video TechnologyYesYes
Intel® Identity Protection Technology (Intel® IPT)YesYes
Conflict-Free processorYesYes
Intel Software Guard Extensions (Intel SGX)Known for oneYes
ScalabilityKnown for one1S
Thermal solution specificationKnown for onePCG 2015C
Weight & dimensions4 differ
WidthDiffers111 mm200 mm
DepthDiffers49 mm380 mm
HeightDiffers115 mm345 mm
WeightDiffers1 kg5 kg
Packaging contentidentical
ManualYesYes
Optical driveidentical
Optical drives quantityKnown for one1
Expansion slotsidentical
PCI Express x1 slotsKnown for one2
PCI Express x16 slotsKnown for one1

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
