Product comparison · 2 pcs/workstations

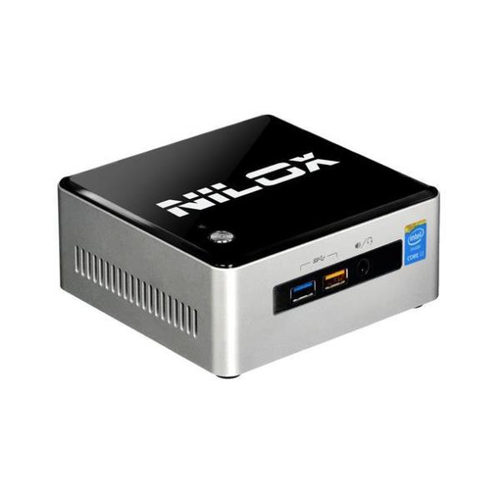

Nilox I3NXNUC4GB500 PC/workstation Intel® Core™ i3 i3-5010U vs Nilox I5NXNUC4GB500 PC/workstation Intel® Core™ i5 i5-5250U

126specifications compared
15differ
111identical
4known for one product only

Key differences

Processor family
- I3NXNUC4GB500 PC/workstation Intel® Core™ i3 i3-5010U:Intel® Core™ i3
- I5NXNUC4GB500 PC/workstation Intel® Core™ i5 i5-5250U:Intel® Core™ i5
Processor generation
- I3NXNUC4GB500 PC/workstation Intel® Core™ i3 i3-5010U:5th gen Intel® Core™ i3
- I5NXNUC4GB500 PC/workstation Intel® Core™ i5 i5-5250U:5th gen Intel® Core™ i5
Processor model
- I3NXNUC4GB500 PC/workstation Intel® Core™ i3 i3-5010U:i3-5010U
- I5NXNUC4GB500 PC/workstation Intel® Core™ i5 i5-5250U:i5-5250U
Processor frequency
- I3NXNUC4GB500 PC/workstation Intel® Core™ i3 i3-5010U:2.1 GHz
- I5NXNUC4GB500 PC/workstation Intel® Core™ i5 i5-5250U:1.6 GHz
Configurable TDP-down
- I3NXNUC4GB500 PC/workstation Intel® Core™ i3 i3-5010U:10 W
- I5NXNUC4GB500 PC/workstation Intel® Core™ i5 i5-5250U:9.5 W
PCI Express configurations
- I3NXNUC4GB500 PC/workstation Intel® Core™ i3 i3-5010U:2x4, 4x1
- I5NXNUC4GB500 PC/workstation Intel® Core™ i5 i5-5250U:4x1, 2x4
On-board graphics card model
- I3NXNUC4GB500 PC/workstation Intel® Core™ i3 i3-5010U:Intel® HD Graphics 5500
- I5NXNUC4GB500 PC/workstation Intel® Core™ i5 i5-5250U:Intel® HD Graphics 6000
On-board graphics card dynamic frequency (max)
- I3NXNUC4GB500 PC/workstation Intel® Core™ i3 i3-5010U:900 MHz
- I5NXNUC4GB500 PC/workstation Intel® Core™ i5 i5-5250U:950 MHz

Side by side

Differences highlightedShow differences only

Comparison of I3NXNUC4GB500, I5NXNUC4GB500
130 specifications	A Nilox I3NXNUC4GB500 PC/workstation Intel® Core™ i3 i3-5010U Model I3NXNUC4GB500 View product	B Nilox I5NXNUC4GB500 PC/workstation Intel® Core™ i5 i5-5250U Model I5NXNUC4GB500 View product
Processor7 differ
Processor manufacturer	Intel	Intel
Processor familyDiffers	Intel® Core™ i3	Intel® Core™ i5
Processor generationDiffers	5th gen Intel® Core™ i3	5th gen Intel® Core™ i5
Processor modelDiffers	i3-5010U	i5-5250U
Processor cores	2	2
Processor threads	4	4
Processor boost frequencyKnown for one	Unknown — not stated by the source	2.7 GHz
Processor frequencyDiffers	2.1 GHz	1.6 GHz
Processor cache	3 MB	3 MB
Processor cache type	L3	L3
Bus type	DMI2	DMI2
System bus rate	5 GT/s	5 GT/s
Processor lithography	14 nm	14 nm
Processor operating modes	32-bit, 64-bit	32-bit, 64-bit
Processor seriesDiffers	Intel Core i3-5000 Mobile series	Intel® Core™ i5-5200 Mobile Series
Processor codename	Broadwell	Broadwell
Thermal Design Power (TDP)	15 W	15 W
Configurable TDP-downDiffers	10 W	9.5 W
Configurable TDP-down frequency	0.6 GHz	0.6 GHz
Tjunction	105 °C	105 °C
Maximum number of PCI Express lanes	12	12
PCI Express configurationsDiffers	2x4, 4x1	4x1, 2x4
PCI Express slots version	2.0	2.0
Number of processors installed	1	1
Processor socket	BGA 1168	BGA 1168
Stepping	F0	F0
Maximum internal memory supported by processor	16 GB	16 GB
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM	DDR3L-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s	25.6 GB/s
Memoryidentical
Internal memory	4 GB	4 GB
Maximum internal memory	16 GB	16 GB
Internal memory type	DDR3L-SDRAM	DDR3L-SDRAM
Memory clock speed	1600 MHz	1600 MHz
Memory channels	Dual-channel	Dual-channel
Storageidentical
Total storage capacity	500 GB	500 GB
Optical drive type	No	No
Storage media	HDD	HDD
Number of HDDs installed	1	1
HDD capacity	500 GB	500 GB
HDD interface	SATA II	SATA II
Graphics3 differ
Discrete graphics card	No	No
On-board graphics card	Yes	Yes
Discrete graphics card model	Not available	Not available
On-board graphics card family	Intel® HD Graphics	Intel® HD Graphics
On-board graphics card modelDiffers	Intel® HD Graphics 5500	Intel® HD Graphics 6000
Maximum on-board graphics card memory	16 GB	16 GB
Number of displays supported (on-board graphics)	3	3
On-board graphics card base frequency	300 MHz	300 MHz
On-board graphics card dynamic frequency (max)Differs	900 MHz	950 MHz
On-board graphics card IDDiffers	0x1616	0x1626
On-board graphics card OpenGL versionKnown for one	Unknown — not stated by the source	4.3
On-board graphics card DirectX versionKnown for one	11.2	Unknown — not stated by the source
Performanceidentical
Product type	Mini PC	Mini PC
Networkidentical
Ethernet LAN	Yes	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s	10,100,1000 Mbit/s
Wi-Fi	Yes	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)	Wi-Fi 5 (802.11ac)
Bluetooth	Yes	Yes
Ports & interfacesidentical
USB 2.0 ports quantity	0	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0	0
Thunderbolt 3 ports quantity	0	0
HDMI ports quantity	0	0
Ethernet LAN (RJ-45) ports	1	1
Combo headphone/mic port	Yes	Yes
Headphone outputs	0	0
Microphone in	No	No
VGA (D-Sub) ports quantity	0	0
DVI port	No	No
Mini HDMI ports quantity	1	1
Mini DisplayPorts quantity	1	1
DC-in jack	Yes	Yes
Poweridentical
Power supply	65 W	65 W
Designidentical
Product colour	Black, Grey	Black, Grey
Softwareidentical
Operating system installed	No	No
Displayidentical
Display included	No	No
Processor special features5 differ
CPU configuration (max)	1	1
Embedded options availableDiffers	Yes	No
Enhanced Intel SpeedStep Technology	Yes	Yes
Execute Disable Bit	Yes	Yes
Graphics & IMC lithography	14 nm	14 nm
Idle States	Yes	Yes
Intel 64	Yes	Yes
Intel Clear Video Technology	Yes	Yes
Intel Enhanced Halt State	Yes	Yes
Intel FDI Technology	Yes	Yes
Intel Fast Memory Access	Yes	Yes
Intel Flex Memory Access	Yes	Yes
Intel Identity Protection Technology version	1.00	1.00
Intel Secure Key Technology version	1.00	1.00
Intel Small Business Advantage (SBA) version	1.00	1.00
Intel Smart Response Technology version	1.00	1.00
Intel Stable Image Platform Program (SIPP)	No	No
Intel Stable Image Platform Program (SIPP) version	0.00	0.00
Intel TSX-NI	No	No
Intel TSX-NI version	0.00	0.00
Intel Trusted Execution Technology	No	No
Intel VT-x with Extended Page Tables (EPT)	Yes	Yes
Intel Virtualization Technology (VT-x)	Yes	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes	Yes
Intel® InTru™ 3D Technology	Yes	Yes
Intel® Insider™	Yes	Yes
Intel® OS Guard	Yes	Yes
Intel® Secure Key	Yes	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes	Yes
Intel® Smart CacheKnown for one	Unknown — not stated by the source	Yes
Intel® Wireless Display (Intel® WiDi)	Yes	Yes
Processor ARK IDDiffers	84697	84984
Processor codeDiffers	SR23Z	SR26C
Processor package sizeDiffers	40 x 24x 1.3 mm	40 x24 x 1.3 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes	Yes
Intel® Smart Response Technology	Yes	Yes
Intel® Turbo Boost TechnologyDiffers	No	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes	Yes
Intel® Quick Sync Video Technology	Yes	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes	Yes
Conflict-Free processor	Yes	Yes
Weight & dimensionsidentical
Width	111 mm	111 mm
Depth	49 mm	49 mm
Height	115 mm	115 mm
Weight	1 kg	1 kg
Packaging contentidentical
Manual	Yes	Yes

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
