Product comparison · 2 pcs/workstations

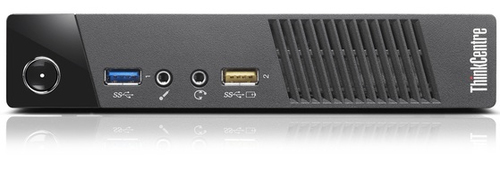

Lenovo M73 + ThinkVision Tiny-in-One 23 vs Lenovo M93p + ThinkVision Tiny-in-One 23

156specifications compared
35differ
121identical
13known for one product only

Key differences

Processor family
- M73 + ThinkVision Tiny-in-One 23:Intel® Core™ i3
- M93p + ThinkVision Tiny-in-One 23:Intel® Core™ i5
Processor generation
- M73 + ThinkVision Tiny-in-One 23:4th gen Intel® Core™ i3
- M93p + ThinkVision Tiny-in-One 23:4th gen Intel® Core™ i5
Processor model
- M73 + ThinkVision Tiny-in-One 23:i3-4150T
- M93p + ThinkVision Tiny-in-One 23:i5-4590T
Processor cores
- M73 + ThinkVision Tiny-in-One 23:2
- M93p + ThinkVision Tiny-in-One 23:4
Processor frequency
- M73 + ThinkVision Tiny-in-One 23:3 GHz
- M93p + ThinkVision Tiny-in-One 23:2 GHz
Processor cache
- M73 + ThinkVision Tiny-in-One 23:3 MB
- M93p + ThinkVision Tiny-in-One 23:6 MB
Bus type
- M73 + ThinkVision Tiny-in-One 23:DMI2
- M93p + ThinkVision Tiny-in-One 23:DMI
Tcase
- M73 + ThinkVision Tiny-in-One 23:66.4 °C
- M93p + ThinkVision Tiny-in-One 23:66.35 °C

Side by side

Differences highlightedShow differences only

Comparison of M73 + ThinkVision Tiny-in-One 23, M93p + ThinkVision Tiny-in-One 23
169 specifications	A Lenovo M73 + ThinkVision Tiny-in-One 23 View product	B Lenovo M93p + ThinkVision Tiny-in-One 23 View product
Processor11 differ
Processor manufacturer	Intel	Intel
Processor familyDiffers	Intel® Core™ i3	Intel® Core™ i5
Processor generationDiffers	4th gen Intel® Core™ i3	4th gen Intel® Core™ i5
Processor modelDiffers	i3-4150T	i5-4590T
Processor coresDiffers	2	4
Processor threads	4	4
Processor boost frequencyKnown for one	Unknown — not stated by the source	3 GHz
Processor frequencyDiffers	3 GHz	2 GHz
Processor cacheDiffers	3 MB	6 MB
Processor cache type	Smart Cache	Smart Cache
Bus typeDiffers	DMI2	DMI
FSB Parity	No	No
System bus rate	5 GT/s	5 GT/s
Processor lithography	22 nm	22 nm
Processor operating modes	32-bit, 64-bit	32-bit, 64-bit
Processor seriesDiffers	Intel Core i3-4100 Desktop series	Intel Core i5-4500 Desktop Series
Processor codename	Haswell	Haswell
Thermal Design Power (TDP)	35 W	35 W
TcaseDiffers	66.4 °C	66.35 °C
Maximum number of PCI Express lanes	16	16
PCI Express configurations	1x16, 2x8, 1x8+2x4	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0	3.0
Number of QPI links	0	0
Number of processors installed	1	1
Processor socket	LGA 1150 (Socket H3)	LGA 1150 (Socket H3)
Stepping	C0	C0
Maximum internal memory supported by processor	32 GB	32 GB
Memory types supported by processorDiffers	DDR3-SDRAM, DDR3L-SDRAM	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s	25.6 GB/s
ECC supported by processorDiffers	Yes	No
Memory voltage supported by processorKnown for one	1.5 V	Unknown — not stated by the source
Memoryidentical
Internal memory	4 GB	4 GB
Maximum internal memory	16 GB	16 GB
Internal memory type	DDR3-SDRAM	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB	1 x 4 GB
Memory slots	2x SO-DIMM	2x SO-DIMM
Memory clock speed	1600 MHz	1600 MHz
Memory channels	Dual-channel	Dual-channel
Storageidentical
Total storage capacity	500 GB	500 GB
Optical drive type	No	No
Storage media	Hybrid-HDD	Hybrid-HDD
Number of storage drives installedKnown for one	Unknown — not stated by the source	1
Hybrid-HDD cache type	Flash	Flash
Hybrid-HDD capacity	500 GB	500 GB
Hybrid-HDD cache memory	8 GB	8 GB
HDD interface	SATA III	SATA III
HDD speed	5400 RPM	5400 RPM
HDD size	2.5"	2.5"
Card reader integratedKnown for one	Unknown — not stated by the source	No
Graphics4 differ
On-board graphics card	Yes	Yes
Discrete graphics card model	Not available	Not available
On-board graphics card family	Intel® HD Graphics	Intel® HD Graphics
On-board graphics card modelDiffers	Intel® HD Graphics 4400	Intel® HD Graphics 4600
Maximum on-board graphics card memoryDiffers	1.74 GB	1.024 GB
Number of displays supported (on-board graphics)	3	3
On-board graphics card base frequencyDiffers	200 MHz	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz	1150 MHz
On-board graphics card DirectX version	11.1	11.1
On-board graphics card IDDiffers	41	0x412
On-board graphics card OpenGL versionKnown for one	4.3	Unknown — not stated by the source
Performance1 differ
Product type	Mini PC	Mini PC
Motherboard chipsetDiffers	Intel® H81	Intel® Q87
Password protection	Yes	Yes
Password protection type	HDD, Power on	HDD, Power on
Optical driveidentical
Optical drives quantity	0	0
Network2 differ
Ethernet LAN	Yes	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)	10/100/1000Base-T(X)
Wi-Fi	Yes	Yes
Top Wi-Fi standardDiffers	Wi-Fi 4 (802.11n)	Wi-Fi 5 (802.11ac)
Wi-Fi standardsDiffers	802.11b, 802.11g, Wi-Fi 4 (802.11n)	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes	Yes
Bluetooth version	4.0	4.0
Ports & interfaces3 differ
USB 2.0 ports quantityDiffers	3	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityDiffers	2	5
DisplayPorts quantityDiffers	1	2
HDMI ports quantity	0	0
Ethernet LAN (RJ-45) ports	1	1
Headphone outputs	1	1
Microphone in	Yes	Yes
VGA (D-Sub) ports quantity	1	1
DVI port	No	No
Poweridentical
Power supply	65 W	65 W
Power supply input voltage	100 - 240 V	100 - 240 V
Power supply input frequency	50 - 60 Hz	50 - 60 Hz
Designidentical
Placement supported	Horizontal/Vertical	Horizontal/Vertical
Cable lock slot	Yes	Yes
Cable lock slot type	Kensington	Kensington
Liquid cooling system	No	No
Product colour	Black	Black
Softwareidentical
Operating system installed	Windows 7 Professional	Windows 7 Professional
Operating system architecture	64-bit	64-bit
Recovery operating system	Windows 8.1 Pro	Windows 8.1 Pro
Displayidentical
Display included	Yes	Yes
Display diagonal	58.4 cm (23")	58.4 cm (23")
Display type	LED	LED
Full HD	Yes	Yes
Display resolution	1920 x 1080 pixels	1920 x 1080 pixels
Native aspect ratio	16:9	16:9
Contrast ratio (typical)	1000:1	1000:1
Display number of colours	16.78 million colours	16.78 million colours
Touchscreen	No	No
Display brightness	250 cd/m²	250 cd/m²
Viewing angle, horizontal	170°	170°
Viewing angle, vertical	160°	160°
Processor special features14 differ
CPU configuration (max)	1	1
Embedded options availableDiffers	No	Yes
Enhanced Intel SpeedStep Technology	Yes	Yes
Execute Disable Bit	Yes	Yes
Graphics & IMC lithography	22 nm	22 nm
Idle States	Yes	Yes
Intel 64	Yes	Yes
Intel Clear Video Technology	No	No
Intel Demand Based Switching	No	No
Intel Dual Display Capable Technology	No	No
Intel Enhanced Halt State	Yes	Yes
Intel FDI TechnologyDiffers	No	Yes
Intel Fast Memory Access	No	No
Intel Flex Memory Access	No	No
Intel Identity Protection Technology versionKnown for one	Unknown — not stated by the source	1.00
Intel Rapid Storage Technology	No	No
Intel Secure Key Technology versionKnown for one	Unknown — not stated by the source	1.00
Intel Small Business Advantage (SBA) version	1.00	1.00
Intel Stable Image Platform Program (SIPP)Differs	No	Yes
Intel Stable Image Platform Program (SIPP) versionDiffers	0.00	1.00
Intel TSX-NI	No	No
Intel TSX-NI version	0.00	0.00
Intel Trusted Execution TechnologyDiffers	No	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes	Yes
Intel Virtualization Technology (VT-x)	Yes	Yes
Intel Virtualization Technology for Directed I/O (VT-d)Differs	No	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No	No
Intel® InTru™ 3D Technology	Yes	Yes
Intel® Insider™Differs	No	Yes
Intel® OS GuardKnown for one	Unknown — not stated by the source	Yes
Intel® Secure KeyKnown for one	Unknown — not stated by the source	Yes
Intel® Smart Cache	Yes	Yes
Intel® Virtualization Technology (Intel® VT)Differs	VT-x	VT-d, VT-x
Intel® Wireless Display (Intel® WiDi)	Yes	Yes
Processor ARK IDDiffers	77487	78928
Processor codeDiffers	SR1PG	SR1S6
Processor package size	37.5 x 37.5 mm	37.5 x 37.5 mm
Scalability	1S	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes	Yes
Thermal solution specification	PCG 2013A	PCG 2013A
Intel® Turbo Boost TechnologyDiffers	No	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)Differs	Yes	No
Intel® Quick Sync Video Technology	Yes	Yes
Intel® My WiFi Technology (Intel® MWT)Differs	No	Yes
Intel® Identity Protection Technology (Intel® IPT)Known for one	Unknown — not stated by the source	Yes
Intel® Anti-Theft Technology (Intel® AT)Differs	No	Yes
Conflict-Free processor	Yes	Yes
Audioidentical
Audio system	HD	HD
Weight & dimensionsidentical
Width	179 mm	179 mm
Depth	182 mm	182 mm
Height	34.5 mm	34.5 mm
Weight	1.3 kg	1.3 kg
Packaging contentidentical
Mouse included	Yes	Yes
Keyboard included	Yes	Yes
Stand includedKnown for one	Yes	Unknown — not stated by the source
AC adapter includedKnown for one	Yes	Unknown — not stated by the source
Certificatesidentical
Compliance certificates	RoHS	RoHS
Sustainabilityidentical
Sustainability certificates	EPEAT Gold, ENERGY STAR	EPEAT Gold, ENERGY STAR
Other featuresidentical
Intel segment tagging	Enterprise, Professional	Enterprise, Professional
Expansion slotsidentical
Mini PCI Express slotsKnown for one	1	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
