bluechip BUSINESSline S3160 vs bluechip BUSINESSline S3160 *white*

Comparison of BUSINESSline S3160, BUSINESSline S3160 *white*

80 specifications	A bluechip BUSINESSline S3160View product	B bluechip BUSINESSline S3160 *white*View product
Processoridentical
Processor manufacturer	Intel	Intel
Processor family	Intel® Core™ i5	Intel® Core™ i5
Processor generation	Intel® Core™ i5 (14th gen)	Intel® Core™ i5 (14th gen)
Processor model	i5-14400	i5-14400
Processor cores	10	10
Processor threads	16	16
Processor boost frequency	4.7 GHz	4.7 GHz
Performance cores	6	6
Efficient cores	4	4
Performance-core Max Turbo Frequency	4.7 GHz	4.7 GHz
Efficient-core Max Turbo Frequency	3.5 GHz	3.5 GHz
Performance-core base frequency	2.5 GHz	2.5 GHz
Efficient-core base frequency	1.8 GHz	1.8 GHz
Processor cache	20 MB	20 MB
Processor cache type	Smart Cache	Smart Cache
Number of processors installed	1	1
Maximum turbo power	148 W	148 W
Processor base power	65 W	65 W
Memoryidentical
Internal memory	8 GB	8 GB
Maximum internal memory	64 GB	64 GB
Internal memory type	DDR5-SDRAM	DDR5-SDRAM
Memory layout (slots x size)	1 x 8 GB	1 x 8 GB
Memory slots	2x SO-DIMM	2x SO-DIMM
Memory clock speed	4800 MHz	4800 MHz
Storageidentical
Total storage capacity	500 GB	500 GB
Optical drive type	No	No
Storage media	SSD	SSD
Number of storage drives installed	1	1
Total SSDs capacity	500 GB	500 GB
Number of SSDs installed	1	1
SSD capacity	500 GB	500 GB
NVMe	Yes	Yes
SSD interface	PCI Express 4.0	PCI Express 4.0
Graphicsidentical
Discrete graphics card	No	No
On-board graphics card	Yes	Yes
Discrete graphics card model	Not available	Not available
On-board GPU manufacturer	Intel	Intel
On-board graphics card family	Intel® UHD Graphics	Intel® UHD Graphics
On-board graphics card model	Intel UHD Graphics 730	Intel UHD Graphics 730
Performanceidentical
Product type	Mini PC	Mini PC
Motherboard chipset	Intel H610	Intel H610
Trusted Platform Module (TPM)	Yes	Yes
Trusted Platform Module (TPM) versionKnown for one	—Unknown — not stated by the source	2.0
Networkidentical
Ethernet LAN	Yes	Yes
Ethernet LAN data rates	2500 Mbit/s	2500 Mbit/s
Wi-Fi	Yes	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)	Wi-Fi 6 (802.11ax)
WLAN controller manufacturerKnown for one	—Unknown — not stated by the source	Intel
Wi-Fi standards	Wi-Fi 6 (802.11ax)	Wi-Fi 6 (802.11ax)
WLAN controller modelKnown for one	—Unknown — not stated by the source	Intel Wi-Fi 6 AX201
Bluetooth	Yes	Yes
Bluetooth version	5.3	5.3
Antenna typeKnown for one	2x2	—Unknown — not stated by the source
Ports & interfacesidentical
USB 2.0 ports quantity	2	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2	2
Thunderbolt 3 ports quantity	0	0
DisplayPorts quantity	2	2
DisplayPort version	1.4a	1.4a
HDMI ports quantity	1	1
HDMI version	2.0b	2.0b
Ethernet LAN (RJ-45) ports	1	1
Headphone outputs	1	1
Microphone in	Yes	Yes
VGA (D-Sub) ports quantity	1	1
Poweridentical
Power supply	120 W	120 W
Design1 differ
Chassis type	Mini PC	Mini PC
VESA mounting	Yes	Yes
Cable lock slot	Yes	Yes
Cable lock slot type	Kensington	Kensington

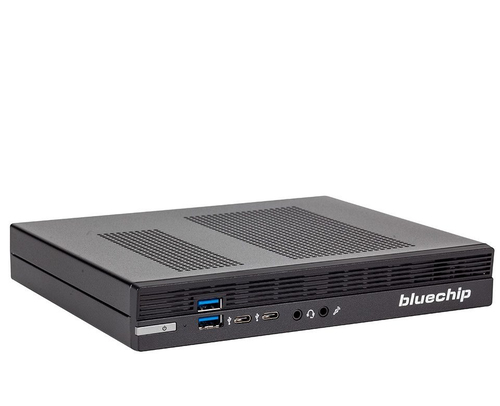

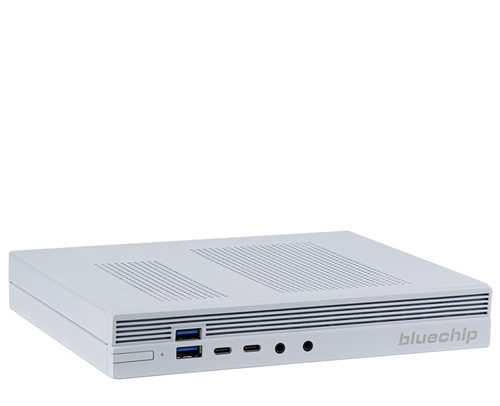

Product colourDiffers	Black	White
Softwareidentical
Operating system installed	Windows 11 Pro	Windows 11 Pro
Operating system architecture	64-bit	64-bit
Displayidentical
Display included	No	No
Weight & dimensionsidentical
Width	205 mm	205 mm
Depth	176 mm	176 mm
Height	33 mm	33 mm
Certificatesidentical
Certification	CE	CE

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
