Product comparison · 2 network transceiver modules

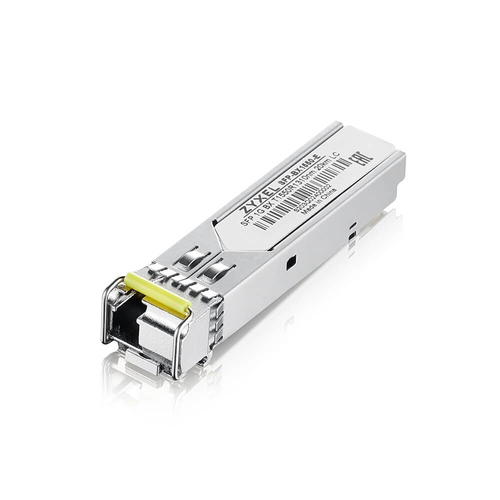

Zyxel SFP-BX1550-E network transceiver module Fiber optic 1000 Mbit/s vs Zyxel SFP-LX-10-E network transceiver module Fiber optic 1000 Mbit/s 1310 nm

Key differences

Fiber optic connector
- SFP-BX1550-E network transceiver module Fiber optic 1000 Mbit/s:LC, SC
- SFP-LX-10-E network transceiver module Fiber optic 1000 Mbit/s 1310 nm:LC
Tx wavelength (max)
- SFP-BX1550-E network transceiver module Fiber optic 1000 Mbit/s:1550 nm
- SFP-LX-10-E network transceiver module Fiber optic 1000 Mbit/s 1310 nm:1310 nm
Tx power (min)
- SFP-BX1550-E network transceiver module Fiber optic 1000 Mbit/s:0 dBmW
- SFP-LX-10-E network transceiver module Fiber optic 1000 Mbit/s 1310 nm:-3 dBmW
Rx power (max)
- SFP-BX1550-E network transceiver module Fiber optic 1000 Mbit/s:-24 dBmW
- SFP-LX-10-E network transceiver module Fiber optic 1000 Mbit/s 1310 nm:-20 dBmW

Differences highlightedShow differences only

Comparison of SFP-BX1550-E, SFP-LX-10-E
23 specifications	A Zyxel SFP-BX1550-E network transceiver module Fiber optic 1000 Mbit/s Model SFP-BX1550-E View product	B Zyxel SFP-LX-10-E network transceiver module Fiber optic 1000 Mbit/s 1310 nm Model SFP-LX-10-E View product
Performance4 differ
SFP transceiver type	Fiber optic	Fiber optic
Maximum data transfer rate	1000 Mbit/s	1000 Mbit/s
Interface type	SFP	SFP
Single-mode fiber (SMF) supported	Yes	Yes
Fiber optic connectorDiffers	LC, SC	LC
Maximum transfer distance	20000 m	20000 m
WavelengthKnown for one	Unknown — not stated by the source	1310 nm
Tx wavelength (max)Differs	1550 nm	1310 nm
Rx wavelength (max)	1310 nm	1310 nm
Tx power (min)Differs	0 dBmW	-3 dBmW
Tx power (max)	-9 dBmW	-9 dBmW
Rx power (min)	-3 dBmW	-3 dBmW
Rx power (max)Differs	-24 dBmW	-20 dBmW
Featuresidentical
Product colour	Steel	Steel
Brand compatibility	Zyxel	Zyxel
Poweridentical
Input voltage	3.1-3.5 V	3.1-3.5 V
Maximum current	0.3 A	0.3 A
Weight & dimensionsidentical
Width	13.4 mm	13.4 mm
Depth	56 mm	56 mm
Height	12.4 mm	12.4 mm
Weight	20 g	20 g
Logistics dataidentical
Harmonized System (HS) code	85369010	85369010
Country of origin	China	China

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
