Product comparison · 2 network transceiver modules

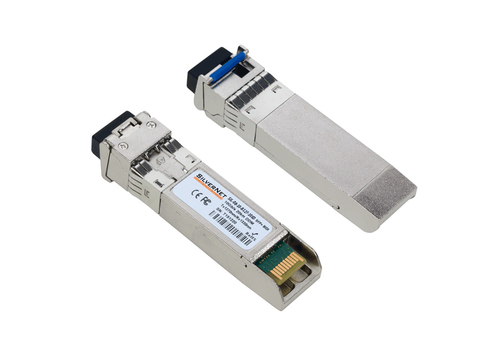

SilverNet SIL SFP-01-25-X vs SilverNet SIL-08-10-B127-10XD

32specifications compared
10differ
22identical
6known for one product only

Key differences

Maximum data transfer rate
- SIL SFP-01-25-X:1250 Mbit/s
- SIL-08-10-B127-10XD:10300 Mbit/s
Interface type
- SIL SFP-01-25-X:SFP
- SIL-08-10-B127-10XD:SFP+
Fiber cable diameters supported (core/cladding)
- SIL SFP-01-25-X:50/125 µm
- SIL-08-10-B127-10XD:9/125 µm
Maximum transfer distance
- SIL SFP-01-25-X:80000 m
- SIL-08-10-B127-10XD:10000 m
Tx wavelength (max)
- SIL SFP-01-25-X:1550 nm
- SIL-08-10-B127-10XD:1270 nm
Package width
- SIL SFP-01-25-X:55 mm
- SIL-08-10-B127-10XD:50 mm
Package depth
- SIL SFP-01-25-X:25 mm
- SIL-08-10-B127-10XD:100 mm
Package height
- SIL SFP-01-25-X:120 mm
- SIL-08-10-B127-10XD:20 mm

Side by side

Differences highlightedShow differences only

Comparison of SIL SFP-01-25-X, SIL-SFPX-08-10-B127-10XD
38 specifications	A SilverNet SIL SFP-01-25-X View product	B SilverNet SIL-08-10-B127-10XD Model SIL-SFPX-08-10-B127-10XD View product
Performance5 differ
SFP transceiver type	Fiber optic	Fiber optic
Maximum data transfer rateDiffers	1250 Mbit/s	10300 Mbit/s
Interface typeDiffers	SFP	SFP+
Single-mode fiber (SMF) supported	Yes	Yes
Multi-mode fiber (MMF) supportedKnown for one	Yes	Unknown — not stated by the source
Fiber optic connector	LC	LC
Fiber cable diameters supported (core/cladding)Differs	50/125 µm	9/125 µm
Maximum transfer distanceDiffers	80000 m	10000 m
Tx wavelength (min)Known for one	850 nm	Unknown — not stated by the source
Tx wavelength (max)Differs	1550 nm	1270 nm
Digital Diagnostics Monitoring (DDM)	Yes	Yes
Rx wavelength (max)Known for one	Unknown — not stated by the source	1330 nm
Featuresidentical
Product colour	Nickel	Nickel
Plug and Play	Yes	Yes
Hot-Plug support	Yes	Yes
Hot-swap	Yes	Yes
Easy to install	Yes	Yes
Poweridentical
Input voltage	3.3 V	3.3 V
Certificatesidentical
Compliance certificates	RoHS	RoHS
Certification	MSA, CE	MSA, CE
SafetyKnown for one	Unknown — not stated by the source	IEC60825-1
Operational conditionsidentical
Operating temperature (T-T)	0 - 70 °C	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95%	0 - 95%
Storage relative humidity (H-H)Known for one	5 - 95%	Unknown — not stated by the source
Weight & dimensionsidentical
Width	10 mm	10 mm
Depth	15 mm	15 mm
Height	60 mm	60 mm
Weight	15 g	15 g
Packaging contentidentical
Quantity per pack	1 pc(s)	1 pc(s)
Packaging data4 differ
Package widthDiffers	55 mm	50 mm
Package depthDiffers	25 mm	100 mm
Package heightDiffers	120 mm	20 mm
Package weightDiffers	35 g	30 g
Package type	Box	Box
Logistics data1 differ
Country of origin	United Kingdom	United Kingdom
UK Trade Tariff codeDiffers	85177000	85176200
Warranty periodKnown for one	Unknown — not stated by the source	1 year(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
