Product comparison · 2 network transceiver modules

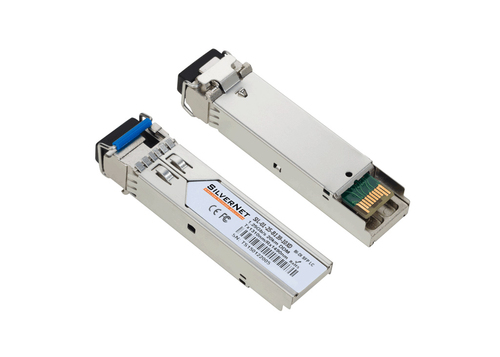

SilverNet SIL-01-25-B139-10XD vs SilverNet SIL-01-25-B155-10XD

Key differences

Differences highlightedShow differences only

Comparison of SFP0-01-25-B139-10XD, SFP0-01-25-B155-10XD
35 specifications	A SilverNet SIL-01-25-B139-10XD Model SFP0-01-25-B139-10XD View product	B SilverNet SIL-01-25-B155-10XD Model SFP0-01-25-B155-10XD View product
Performance2 differ
SFP transceiver type	Fiber optic	Fiber optic
Maximum data transfer rate	1250 Mbit/s	1250 Mbit/s
Interface type	SFP	SFP
Single-mode fiber (SMF) supported	Yes	Yes
Fiber optic connector	LC	LC
Fiber cable diameters supported (core/cladding)	9/125 µm	9/125 µm
Maximum transfer distance	10000 m	10000 m
Tx wavelength (max)Differs	1310 nm	1550 nm
Rx wavelength (max)Differs	1490 nm	1310 nm
Digital Diagnostics Monitoring (DDM)	Yes	Yes
Featuresidentical
Product colour	Nickel	Nickel
Plug and Play	Yes	Yes
Hot-Plug support	Yes	Yes
Hot-swap	Yes	Yes
Easy to install	Yes	Yes
Poweridentical
Input voltage	3.3 V	3.3 V
Certificatesidentical
Compliance certificates	RoHS	RoHS
Safety	IEC60825-1	IEC60825-1
Certification	MSA, CE	MSA, CE
Operational conditionsidentical
Operating temperature (T-T)	0 - 70 °C	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95%	0 - 95%
Weight & dimensionsidentical
Width	10 mm	10 mm
Depth	15 mm	15 mm
Height	60 mm	60 mm
Weight	15 g	15 g
Packaging contentidentical
Quantity per pack	1 pc(s)	1 pc(s)
Packaging dataidentical
Package width	50 mm	50 mm
Package depth	100 mm	100 mm
Package height	20 mm	20 mm
Package weight	30 g	30 g
Package type	Box	Box
Logistics dataidentical
Country of origin	United Kingdom	United Kingdom
UK Trade Tariff code	85176200	85176200
Warranty period	1 year(s)	1 year(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
