Product comparison · 2 network transceiver modules

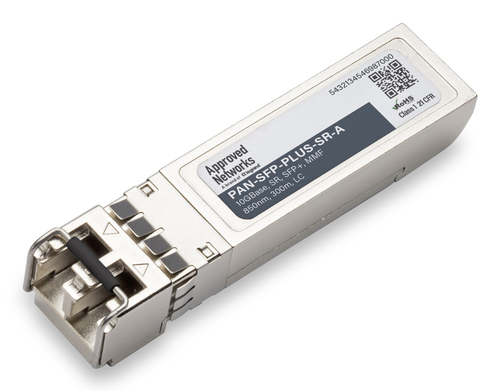

Legrand PAN-SFP-PLUS-SR-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 850 nm vs Legrand SFP-10G-LR10-I-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 1310 nm

Key differences

SFP transceiver standard
- PAN-SFP-PLUS-SR-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 850 nm:SR
- SFP-10G-LR10-I-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 1310 nm:LR
Maximum transfer distance
- PAN-SFP-PLUS-SR-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 850 nm:300 m
- SFP-10G-LR10-I-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 1310 nm:10000 m
Wavelength
- PAN-SFP-PLUS-SR-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 850 nm:850 nm
- SFP-10G-LR10-I-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 1310 nm:1310 nm
Brand compatibility
- PAN-SFP-PLUS-SR-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 850 nm:Palo Alto Networks
- SFP-10G-LR10-I-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 1310 nm:Cisco
Height
- PAN-SFP-PLUS-SR-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 850 nm:13.9 mm
- SFP-10G-LR10-I-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 1310 nm:12.6 mm

Differences highlightedShow differences only

Comparison of PAN-SFP-PLUS-SR-A, SFP-10G-LR10-I-A
25 specifications	A Legrand PAN-SFP-PLUS-SR-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 850 nm Model PAN-SFP-PLUS-SR-A View product	B Legrand SFP-10G-LR10-I-A network transceiver module Fiber optic 11100 Mbit/s SFP+ 1310 nm Model SFP-10G-LR10-I-A View product
Performance3 differ
SFP transceiver type	Fiber optic	Fiber optic
Maximum data transfer rate	11100 Mbit/s	11100 Mbit/s
Interface type	SFP+	SFP+
Multi-mode fiber (MMF) supportedKnown for one	Yes	Unknown — not stated by the source
Fiber optic connector	LC	LC
SFP transceiver standardDiffers	SR	LR
Maximum transfer distanceDiffers	300 m	10000 m
WavelengthDiffers	850 nm	1310 nm
Fiber ethernet cabling technology	10GBASE	10GBASE
Duplex system	Full	Full
Digital Diagnostics Monitoring (DDM)	Yes	Yes
Single-mode fiber (SMF) supportedKnown for one	Unknown — not stated by the source	Yes
Features1 differ
Product colour	Silver	Silver
Form factor	SFP+	SFP+
Brand compatibilityDiffers	Palo Alto Networks	Cisco
Certificatesidentical
Compliance certificates	RoHS	RoHS
Operational conditionsidentical
Minimum operating temperature	-40 °C	-40 °C
Maximum operating temperature	85 °C	85 °C
Operating temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Weight & dimensions1 differ
Width	13.9 mm	13.9 mm
Depth	58.4 mm	58.4 mm
HeightDiffers	13.9 mm	12.6 mm
Weight	11.3 g	11.3 g
Packaging contentidentical
Quantity per pack	1 pc(s)	1 pc(s)
Logistics dataidentical
Country of origin	China	China

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
