Product comparison · 2 network transceiver modules

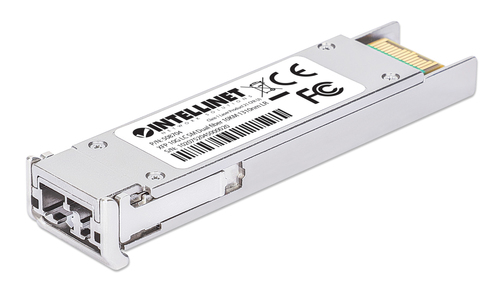

Intellinet 10 Gigabit Fiber XFP Optical Transceiver Module 10GBase-SR (LC) Multi-Mode Port, 300 m (984 ft.), MSA-compliant for Maximum Compatibility, Silver vs Intellinet 10 Gigabit Fiber XFP Optical Transceiver Module 10GBase-LR (LC) Single-Mode Port, 10 km (6.2 mi.), MSA-compliant for Maximum Compatibility, Silver

35specifications compared
3differ
32identical
2known for one product only

Key differences

SFP transceiver standard
- 10 Gigabit Fiber XFP Optical Transceiver Module 10GBase-SR (LC) Multi-Mode Port, 300 m (984 ft.), MSA-compliant for Maximum Compatibility, Silver:SR
- 10 Gigabit Fiber XFP Optical Transceiver Module 10GBase-LR (LC) Single-Mode Port, 10 km (6.2 mi.), MSA-compliant for Maximum Compatibility, Silver:LR
Maximum transfer distance
- 10 Gigabit Fiber XFP Optical Transceiver Module 10GBase-SR (LC) Multi-Mode Port, 300 m (984 ft.), MSA-compliant for Maximum Compatibility, Silver:300 m
- 10 Gigabit Fiber XFP Optical Transceiver Module 10GBase-LR (LC) Single-Mode Port, 10 km (6.2 mi.), MSA-compliant for Maximum Compatibility, Silver:10000 m
Wavelength
- 10 Gigabit Fiber XFP Optical Transceiver Module 10GBase-SR (LC) Multi-Mode Port, 300 m (984 ft.), MSA-compliant for Maximum Compatibility, Silver:850 nm
- 10 Gigabit Fiber XFP Optical Transceiver Module 10GBase-LR (LC) Single-Mode Port, 10 km (6.2 mi.), MSA-compliant for Maximum Compatibility, Silver:1310 nm

Side by side

Differences highlightedShow differences only

Comparison of 508698, 508704
37 specifications	A Intellinet 10 Gigabit Fiber XFP Optical Transceiver Module 10GBase-SR (LC) Multi-Mode Port, 300 m (984 ft.), MSA-compliant for Maximum Compatibility, Silver Model 508698 View product	B Intellinet 10 Gigabit Fiber XFP Optical Transceiver Module 10GBase-LR (LC) Single-Mode Port, 10 km (6.2 mi.), MSA-compliant for Maximum Compatibility, Silver Model 508704 View product
Performance3 differ
SFP transceiver type	Fiber optic	Fiber optic
Maximum data transfer rate	10000 Mbit/s	10000 Mbit/s
Interface type	XFP	XFP
Multi-mode fiber (MMF) supportedKnown for one	Yes	Unknown — not stated by the source
Fiber optic connector	LC	LC
SFP transceiver standardDiffers	SR	LR
Maximum transfer distanceDiffers	300 m	10000 m
WavelengthDiffers	850 nm	1310 nm
Tx power (min)	-6 dBmW	-6 dBmW
Tx power (max)	-1 dBmW	-1 dBmW
Networking standards	IEEE 802.3ae, IEEE 802.3z	IEEE 802.3ae, IEEE 802.3z
Fiber ethernet cabling technology	10GBASE	10GBASE
Duplex system	Full	Full
Single-mode fiber (SMF) supportedKnown for one	Unknown — not stated by the source	Yes
Featuresidentical
Product colour	Silver	Silver
Housing material	Metal	Metal
Hot-Plug support	Yes	Yes
Brand compatibility	MSA Compliant	MSA Compliant
Poweridentical
Maximum voltage	3.3 V	3.3 V
Power consumption (typical)	1.5 W	1.5 W
Certificatesidentical
Compliance certificates	CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS	CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS
Sustainabilityidentical
Sustainability compliance	Yes	Yes
Operational conditionsidentical
Operating temperature (T-T)	0 - 70 °C	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Operating relative humidity (H-H)	10 - 85%	10 - 85%
Weight & dimensionsidentical
Width	16 mm	16 mm
Depth	78 mm	78 mm
Height	11 mm	11 mm
Weight	30 g	30 g
Packaging contentidentical
Quantity per pack	1 pc(s)	1 pc(s)
Packaging dataidentical
Package weight	40 g	40 g
Package type	Box	Box
Logistics dataidentical
Master (outer) case width	200 mm	200 mm
Master (outer) case length	310 mm	310 mm
Master (outer) case height	250 mm	250 mm
Master (outer) case gross weight	2.6 kg	2.6 kg
Products per master (outer) case	48 pc(s)	48 pc(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
