Product comparison · 2 network transceiver modules

Intellinet 10 Gigabit Fiber SFP+ Optical Transceiver Module 10GBase-LRM (LC) Multi-Mode Port, 220 m (720 ft.), MSA-compliant for Maximum Compatibility, Silver vs Intellinet Gigabit Fiber SFP Optical Transceiver Module 1000Base-LX (LC) Single-Mode Port, 10 km (6.2 mi.), HPE-compatible, Silver

Add a product
  • 38specifications compared
  • 11differ
  • 27identical
  • 6known for one product only

Key differences

  • Maximum data transfer rate
    • 10000 Mbit/s
    • 1000 Mbit/s
  • Interface type
    • SFP+
    • SFP
  • Fiber cable diameters supported (core/cladding)
    • 50/125 µm
    • 9/125 µm
  • SFP transceiver standard
    • LRM
    • LX
  • Maximum transfer distance
    • 220 m
    • 10000 m
  • Tx power (min)
    • -6.5 dBmW
    • -9 dBmW
  • Tx power (max)
    • 0.5 dBmW
    • -3 dBmW
  • Networking standards
    • IEEE 802.3ae, IEEE 802.3z
    • IEEE 802.3z

Side by side

Differences highlightedShow differences only
44 specifications
A

Intellinet

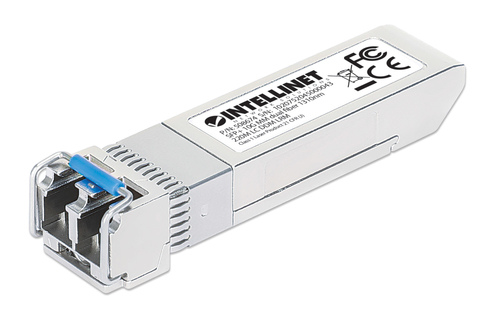

10 Gigabit Fiber SFP+ Optical Transceiver Module 10GBase-LRM (LC) Multi-Mode Port, 220 m (720 ft.), MSA-compliant for Maximum Compatibility, Silver

Model 508674

View product
B

Intellinet

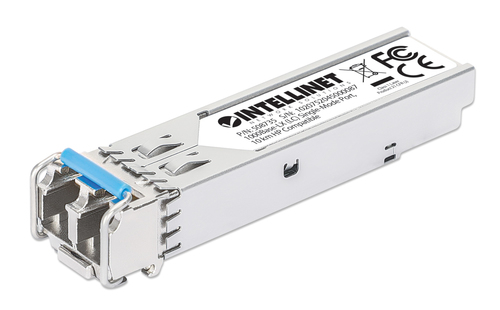

Gigabit Fiber SFP Optical Transceiver Module 1000Base-LX (LC) Single-Mode Port, 10 km (6.2 mi.), HPE-compatible, Silver

Model 508735

View product
Performance8 differ
SFP transceiver typeFiber opticFiber optic
Maximum data transfer rateDiffers10000 Mbit/s1000 Mbit/s
Interface typeDiffersSFP+SFP
Multi-mode fiber (MMF) supportedKnown for oneYes
Fiber optic connectorLCLC
Fiber cable diameters supported (core/cladding)Differs50/125 µm9/125 µm
SFP transceiver standardDiffersLRMLX
Maximum transfer distanceDiffers220 m10000 m
Wavelength1310 nm1310 nm
Tx power (min)Differs-6.5 dBmW-9 dBmW
Tx power (max)Differs0.5 dBmW-3 dBmW
Networking standardsDiffersIEEE 802.3ae, IEEE 802.3zIEEE 802.3z
Fiber ethernet cabling technologyKnown for one10GBASE
Duplex systemFullFull
Wavelength-division multiplexing (WDM)Known for oneYes
Single-mode fiber (SMF) supportedKnown for oneYes
Link budgetKnown for one11 dB
Digital Diagnostics Monitoring (DDM)Known for oneYes
Features1 differ
Product colourSilverSilver
Housing materialMetalMetal
Hot-Plug supportYesYes
Brand compatibilityDiffersMSA CompliantHPE
Poweridentical
Maximum voltage3.3 V3.3 V
Power consumption (typical)1 W1 W
Certificates1 differ
Compliance certificatesDiffersRoHS, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), UKCA, CECE, RoHS, Federal Communications Commission (FCC)
Sustainabilityidentical
Sustainability complianceYesYes
Operational conditionsidentical
Operating temperature (T-T)0 - 70 °C0 - 70 °C
Storage temperature (T-T)-40 - 85 °C-40 - 85 °C
Operating relative humidity (H-H)10 - 85%10 - 85%
Weight & dimensionsidentical
Width14 mm14 mm
Depth57 mm57 mm
Height12 mm12 mm
Weight20 g20 g
Packaging contentidentical
Quantity per pack1 pc(s)1 pc(s)
Packaging data1 differ
Package width56 mm56 mm
Package depth120 mm120 mm
Package height24 mm24 mm
Package weightDiffers30 g50 g
Package typeBoxBox
Logistics dataidentical
Master (outer) case width200 mm200 mm
Master (outer) case length310 mm310 mm
Master (outer) case height250 mm250 mm
Master (outer) case gross weight2.6 kg2.6 kg
Products per master (outer) case48 pc(s)48 pc(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
