Product comparison · 2 network transceiver modules

Intellinet Industrial 10 Gigabit Fiber SFP+ Optical Transceiver Module 10GBase-SR (LC) Multi-Mode Port, 300 m (984 ft.), MSA-compliant for Maximum Compatibility vs Intellinet Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-D (LC) Single-Mode Port, 10 km (6.2 mi.), BiDi WDM (RX1550/TX1310), HPE-c

Add a product
  • 34specifications compared
  • 10differ
  • 24identical
  • 12known for one product only

Key differences

  • Maximum data transfer rate
    • 10000 Mbit/s
    • 1000 Mbit/s
  • SFP transceiver standard
    • SR
    • BX-D
  • Maximum transfer distance
    • 300 m
    • 10000 m
  • Tx power (min)
    • -6 dBmW
    • -3 dBmW
  • Tx power (max)
    • -1 dBmW
    • -8 dBmW
  • Networking standards
    • IEEE 802.3ae, IEEE 802.3z
    • IEEE 802.3z
  • Fiber ethernet cabling technology
    • 10GBASE
    • 1000BASE
  • Brand compatibility
    • MSA Compliant
    • HPE

Side by side

Differences highlightedShow differences only
46 specifications
A

Intellinet

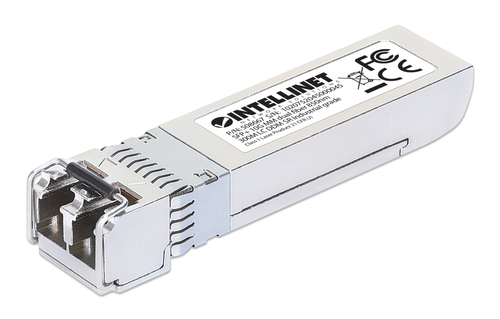

Industrial 10 Gigabit Fiber SFP+ Optical Transceiver Module 10GBase-SR (LC) Multi-Mode Port, 300 m (984 ft.), MSA-compliant for Maximum Compatibility

Model 508667

View product
B

Intellinet

Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-D (LC) Single-Mode Port, 10 km (6.2 mi.), BiDi WDM (RX1550/TX1310), HPE-c

Model 508780

View product
Performance7 differ
SFP transceiver typeFiber opticFiber optic
Maximum data transfer rateDiffers10000 Mbit/s1000 Mbit/s
Interface typemini-GBIC/SFPmini-GBIC/SFP
Multi-mode fiber (MMF) supportedKnown for oneYes
Fiber optic connectorLCLC
SFP transceiver standardDiffersSRBX-D
Maximum transfer distanceDiffers300 m10000 m
WavelengthKnown for one850 nm
Tx power (min)Differs-6 dBmW-3 dBmW
Tx power (max)Differs-1 dBmW-8 dBmW
Networking standardsDiffersIEEE 802.3ae, IEEE 802.3zIEEE 802.3z
Fiber ethernet cabling technologyDiffers10GBASE1000BASE
Duplex systemKnown for oneFull
Digital Diagnostics Monitoring (DDM)YesYes
Single-mode fiber (SMF) supportedKnown for oneYes
Fiber cable diameters supported (core/cladding)Known for one9/125 µm
Tx wavelength (max)Known for one1310 nm
Rx wavelength (max)Known for one1550 nm
Link budgetKnown for one16 dB
Wavelength-division multiplexing (WDM)Known for oneYes
Features1 differ
Product colourSilverSilver
Housing materialMetalMetal
Hot-Plug supportYesYes
Brand compatibilityDiffersMSA CompliantHPE
Poweridentical
Maximum voltage3.3 V3.3 V
Power consumption (typical)1 W1 W
Certificatesidentical
Compliance certificatesRoHS, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), UKCA, CERoHS, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), UKCA, CE
Sustainabilityidentical
Sustainability complianceYesYes
Operational conditions2 differ
Operating temperature (T-T)Differs-40 - 75 °C0 - 70 °C
Storage temperature (T-T)-40 - 85 °C-40 - 85 °C
Operating relative humidity (H-H)Differs5 - 95%10 - 85%
Weight & dimensionsidentical
Width14 mm14 mm
Depth57 mm57 mm
Height12 mm12 mm
Weight20 g20 g
Packaging contentidentical
Quantity per pack1 pc(s)1 pc(s)
Packaging dataidentical
Package widthKnown for one56 mm
Package depthKnown for one120 mm
Package heightKnown for one24 mm
Package weight30 g30 g
Package typeBoxBox
Logistics dataidentical
Master (outer) case width200 mm200 mm
Master (outer) case length310 mm310 mm
Master (outer) case height250 mm250 mm
Master (outer) case gross weight2.6 kg2.6 kg
Products per master (outer) case48 pc(s)48 pc(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
