Product comparison · 2 network transceiver modules

Intellinet Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-D (LC) Single-Mode Port, 40 km (25 mi.), BiDi WDM (RX1310/TX1550), MSA-co vs Intellinet Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, Ethernet, Fibre, HPE Compliant, Equivalen

Add a product
  • 35specifications compared
  • 10differ
  • 25identical
  • 9known for one product only

Key differences

  • Maximum data transfer rate
    • 1000 Mbit/s
    • 10000 Mbit/s
  • Interface type
    • SFP
    • SFP+
  • Fiber cable diameters supported (core/cladding)
    • 9/125 µm
    • 50/125,62.5/125 µm
  • SFP transceiver standard
    • BX-D
    • SR
  • Maximum transfer distance
    • 40000 m
    • 300 m
  • Tx power (min)
    • -5 dBmW
    • -6 dBmW
  • Tx power (max)
    • 0 dBmW
    • -1 dBmW
  • Networking standards
    • IEEE 802.3z
    • IEEE 802.3ae, IEEE 802.3z

Side by side

Differences highlightedShow differences only
44 specifications
A

Intellinet

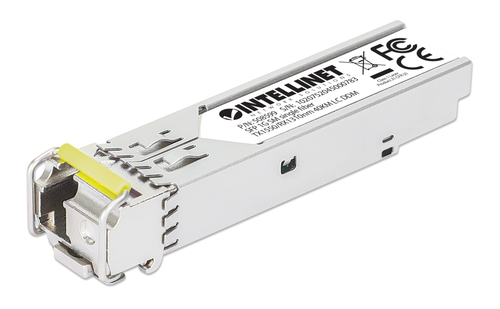

Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-D (LC) Single-Mode Port, 40 km (25 mi.), BiDi WDM (RX1310/TX1550), MSA-co

Model 508599

View product
B

Intellinet

Transceiver Module Optical, 10 Gigabit Fiber SFP+, 10GBase-SR (LC) Multi-Mode Port, 300m, Wavelength 850nm, Ethernet, Fibre, HPE Compliant, Equivalen

Model 508766

View product
Performance8 differ
SFP transceiver typeFiber opticFiber optic
Maximum data transfer rateDiffers1000 Mbit/s10000 Mbit/s
Interface typeDiffersSFPSFP+
Multi-mode fiber (MMF) supportedKnown for oneYes
Fiber optic connectorLCLC
Fiber cable diameters supported (core/cladding)Differs9/125 µm50/125,62.5/125 µm
SFP transceiver standardDiffersBX-DSR
Maximum transfer distanceDiffers40000 m300 m
WavelengthKnown for one850 nm
Tx power (min)Differs-5 dBmW-6 dBmW
Tx power (max)Differs0 dBmW-1 dBmW
Link budgetKnown for one4 dB
Networking standardsDiffersIEEE 802.3zIEEE 802.3ae, IEEE 802.3z
Copper ethernet cabling technologyKnown for one10GBASE
Digital Diagnostics Monitoring (DDM)Known for oneYes
Single-mode fiber (SMF) supportedKnown for oneYes
Tx wavelength (max)Known for one1550 nm
Rx wavelength (max)Known for one1310 nm
Wavelength-division multiplexing (WDM)Known for oneYes
Features1 differ
Product colourSilverSilver
Housing materialMetalMetal
Hot-Plug supportYesYes
Brand compatibilityDiffersMSA CompliantHPE
Poweridentical
Maximum voltage3.3 V3.3 V
Power consumption (typical)1 W1 W
Certificates1 differ
Compliance certificatesDiffersFederal Communications Commission (FCC), National Defense Authorization Act (NDAA), CE, RoHSCE, RoHS, Federal Communications Commission (FCC)
Sustainabilityidentical
Sustainability complianceYesYes
Operational conditionsidentical
Operating temperature (T-T)0 - 70 °C0 - 70 °C
Storage temperature (T-T)-40 - 85 °C-40 - 85 °C
Operating relative humidity (H-H)10 - 85%10 - 85%
Weight & dimensionsidentical
Width14 mm14 mm
Depth57 mm57 mm
Height12 mm12 mm
Weight20 g20 g
Packaging contentidentical
Quantity per pack1 pc(s)1 pc(s)
Packaging dataidentical
Package width56 mm56 mm
Package depth120 mm120 mm
Package height24 mm24 mm
Package weight50 g50 g
Logistics dataidentical
Master (outer) case width200 mm200 mm
Master (outer) case length310 mm310 mm
Master (outer) case height250 mm250 mm
Master (outer) case gross weight2.6 kg2.6 kg
Products per master (outer) case48 pc(s)48 pc(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
