Product comparison · 2 network transceiver modules

Intellinet Industrial Gigabit Fiber SFP Optical Transceiver Module 1000Base-SX (LC) Multi-Mode Port, 550 m, MSA-compliant for Maximum Compatibility, Silver vs Intellinet Industrial Gigabit Fiber SFP Optical Transceiver Module 1000Base-LX (LC) Single-Mode Port, 10 km (6.2 mi.), MSA-compliant for Maximum Compatibility,

Add a product
  • 40specifications compared
  • 7differ
  • 33identical
  • 3known for one product only

Key differences

  • Fiber cable diameters supported (core/cladding)
    • 50/125,62.5/125 µm
    • 9/125 µm
  • SFP transceiver standard
    • SX
    • LX
  • Maximum transfer distance
    • 550 m
    • 10000 m
  • Wavelength
    • 850 nm
    • 1310 nm
  • Link budget
    • 9 dB
    • 11 dB
  • Operating temperature (T-T)
    • -40 - 75 °C
    • 0 - 70 °C

Side by side

Differences highlightedShow differences only
43 specifications

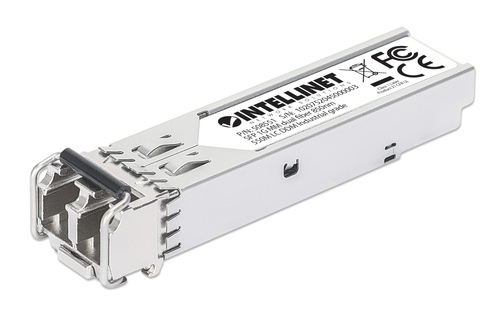

A

Intellinet

Industrial Gigabit Fiber SFP Optical Transceiver Module 1000Base-SX (LC) Multi-Mode Port, 550 m, MSA-compliant for Maximum Compatibility, Silver

Model 508551

View product

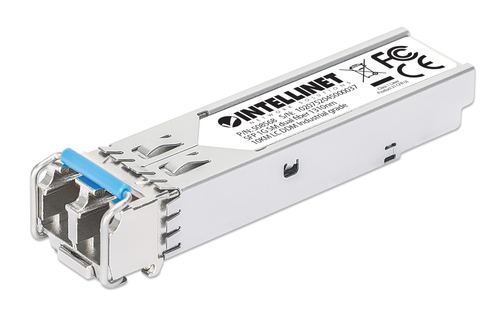

B

Intellinet

Industrial Gigabit Fiber SFP Optical Transceiver Module 1000Base-LX (LC) Single-Mode Port, 10 km (6.2 mi.), MSA-compliant for Maximum Compatibility,

Model 508568

View product
Performance5 differ
SFP transceiver typeFiber opticFiber optic
Maximum data transfer rate1000 Mbit/s1000 Mbit/s
Interface typeSFPSFP
Multi-mode fiber (MMF) supportedKnown for oneYes
Fiber optic connectorLCLC
Fiber cable diameters supported (core/cladding)Differs50/125,62.5/125 µm9/125 µm
SFP transceiver standardDiffersSXLX
Maximum transfer distanceDiffers550 m10000 m
WavelengthDiffers850 nm1310 nm
Tx power (min)-9 dBmW-9 dBmW
Tx power (max)-3 dBmW-3 dBmW
Link budgetDiffers9 dB11 dB
Networking standardsIEEE 802.3zIEEE 802.3z
Fiber ethernet cabling technology1000BASE1000BASE
Duplex systemFullFull
Digital Diagnostics Monitoring (DDM)YesYes
Single-mode fiber (SMF) supportedKnown for oneYes
Featuresidentical
Product colourSilverSilver
Housing materialMetalMetal
Hot-Plug supportYesYes
Brand compatibilityMSA CompliantMSA Compliant
Poweridentical
Maximum voltage3.3 V3.3 V
Power consumption (typical)1 W1 W
Certificates1 differ
Compliance certificatesDiffersCE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS, UKCACE, RoHS, Federal Communications Commission (FCC)
Sustainabilityidentical
Sustainability complianceYesYes
Operational conditions1 differ
Operating temperature (T-T)Differs-40 - 75 °C0 - 70 °C
Storage temperature (T-T)-40 - 85 °C-40 - 85 °C
Operating relative humidity (H-H)5 - 95%5 - 95%
Weight & dimensionsidentical
Width14 mm14 mm
Depth57 mm57 mm
Height12 mm12 mm
Weight20 g20 g
Packaging contentidentical
Quantity per pack1 pc(s)1 pc(s)
Packaging dataidentical
Package width56 mm56 mm
Package depth120 mm120 mm
Package height24 mm24 mm
Package weight50 g50 g
Package typeKnown for oneBox
Logistics dataidentical
Master (outer) case width200 mm200 mm
Master (outer) case length310 mm310 mm
Master (outer) case height250 mm250 mm
Master (outer) case gross weight2.6 kg2.6 kg
Products per master (outer) case48 pc(s)48 pc(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
