Product comparison · 2 network transceiver modules

EnGenius SFP Module 10G Multi-Mode Fiber 850nm 0.3km vs EnGenius SFP Module 10G Single-Mode Fiber 1330nm 10km

31specifications compared
2differ
29identical
2known for one product only

Key differences

Maximum transfer distance
- SFP Module 10G Multi-Mode Fiber 850nm 0.3km:300 m
- SFP Module 10G Single-Mode Fiber 1330nm 10km:10000 m
Wavelength
- SFP Module 10G Multi-Mode Fiber 850nm 0.3km:850 nm
- SFP Module 10G Single-Mode Fiber 1330nm 10km:1310 nm

Side by side

Differences highlightedShow differences only

Comparison of SFP3185-03A, SFP3213-10A

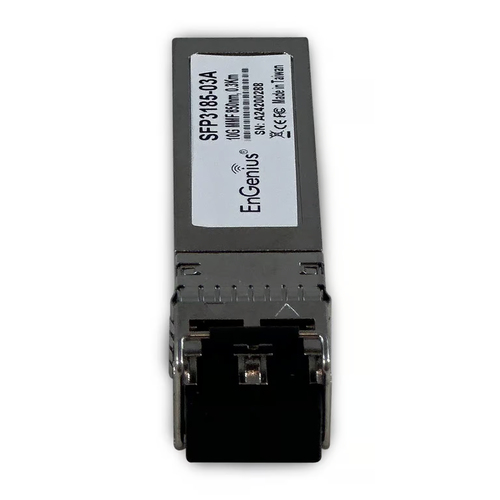

33 specifications	A EnGenius SFP Module 10G Multi-Mode Fiber 850nm 0.3km Model SFP3185-03A View product	B EnGenius SFP Module 10G Single-Mode Fiber 1330nm 10km Model SFP3213-10A View product
Performance2 differ
SFP transceiver type	Fiber optic	Fiber optic
Maximum data transfer rate	10000 Mbit/s	10000 Mbit/s
Interface type	SFP+	SFP+
Multi-mode fiber (MMF) supportedKnown for one	Yes	Unknown — not stated by the source
Fiber optic connector	LC	LC
Maximum transfer distanceDiffers	300 m	10000 m
WavelengthDiffers	850 nm	1310 nm
Ethernet LAN	Yes	Yes
Ethernet interface type	10 Gigabit Ethernet	10 Gigabit Ethernet
Networking standards	IEEE 802.3az	IEEE 802.3az
Single-mode fiber (SMF) supportedKnown for one	Unknown — not stated by the source	Yes
Featuresidentical
Product colour	Grey	Grey
Hot-swap	Yes	Yes
Poweridentical
Input voltage	3.13 - 3.46 V	3.13 - 3.46 V
Maximum voltage	3.46 V	3.46 V
Certificatesidentical
Compliance certificates	RoHS	RoHS
Operational conditionsidentical
Operating temperature (T-T)	0 - 70 °C	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Weight & dimensionsidentical
Width	13.9 mm	13.9 mm
Depth	58.4 mm	58.4 mm
Height	12.6 mm	12.6 mm
Weight	25 g	25 g
Packaging dataidentical
Package width	119 mm	119 mm
Package depth	25 mm	25 mm
Package height	72 mm	72 mm
Package weight	40 g	40 g
Logistics dataidentical
Master (outer) case net weight	4.8 kg	4.8 kg
Master (outer) case width	148 mm	148 mm
Harmonized System (HS) code	85176990	85176990
Master (outer) case length	138 mm	138 mm
Master (outer) case height	125 mm	125 mm
Master (outer) case gross weight	460 g	460 g
Products per master (outer) case	120 pc(s)	120 pc(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
