Product comparison · 2 network transceiver modules

EnGenius 1G Fiber to copper module vs EnGenius 10G Fiber to copper module

21specifications compared
13differ
8identical
11known for one product only

Key differences

SFP transceiver type
- 1G Fiber to copper module:Copper
- 10G Fiber to copper module:Fiber optic
Maximum data transfer rate
- 1G Fiber to copper module:1250 Mbit/s
- 10G Fiber to copper module:10000 Mbit/s
Interface type
- 1G Fiber to copper module:RJ-45
- 10G Fiber to copper module:SFP
Maximum transfer distance
- 1G Fiber to copper module:100 m
- 10G Fiber to copper module:30 m
Input voltage
- 1G Fiber to copper module:3.13-3.47 V
- 10G Fiber to copper module:3.13 - 3.47 V
Width
- 1G Fiber to copper module:12 mm
- 10G Fiber to copper module:13 mm
Height
- 1G Fiber to copper module:14 mm
- 10G Fiber to copper module:13.7 mm
Package width
- 1G Fiber to copper module:118 mm
- 10G Fiber to copper module:119 mm

Side by side

Differences highlightedShow differences only

Comparison of SFP2500, SFP3500

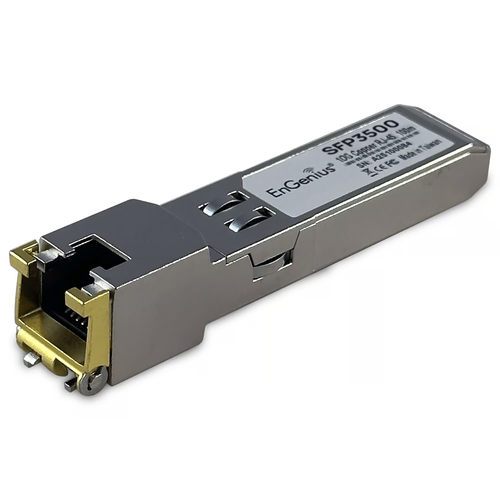

32 specifications	A EnGenius 1G Fiber to copper module Model SFP2500 View product	B EnGenius 10G Fiber to copper module Model SFP3500 View product
Performance4 differ
SFP transceiver typeDiffers	Copper	Fiber optic
Maximum data transfer rateDiffers	1250 Mbit/s	10000 Mbit/s
Interface typeDiffers	RJ-45	SFP
Fiber optic connectorKnown for one	Unknown — not stated by the source	RJ-45
Maximum transfer distanceDiffers	100 m	30 m
Ethernet LANKnown for one	Unknown — not stated by the source	Yes
Ethernet interface typeKnown for one	Unknown — not stated by the source	10 Gigabit Ethernet
Featuresidentical
Product colourKnown for one	Unknown — not stated by the source	Grey
Plug and PlayKnown for one	Unknown — not stated by the source	Yes
Hot-swapKnown for one	Yes	Unknown — not stated by the source
Power1 differ
Input voltageDiffers	3.13-3.47 V	3.13 - 3.47 V
Operational conditionsidentical
Operating temperature (T-T)Known for one	Unknown — not stated by the source	0 - 65 °C
Storage temperature (T-T)	-40 - 85 °C	-40 - 85 °C
Minimum operating temperatureKnown for one	-20 °C	Unknown — not stated by the source
Maximum operating temperatureKnown for one	75 °C	Unknown — not stated by the source
Weight & dimensions2 differ
WidthDiffers	12 mm	13 mm
Depth	68 mm	68 mm
HeightDiffers	14 mm	13.7 mm
Weight	24.5 g	24.5 g
Packaging data4 differ
Package widthDiffers	118 mm	119 mm
Package depthDiffers	70 mm	25 mm
Package heightDiffers	25 mm	72 mm
Package weightDiffers	46 g	48 g
Logistics data2 differ
Master (outer) case net weightDiffers	5.52 kg	5.76 kg
Master (outer) case width	138 mm	138 mm
Harmonized System (HS) code	85176990	85176990
Master (outer) case lengthDiffers	150 mm	151 mm
Master (outer) case height	120 mm	120 mm
Master (outer) case gross weight	500 g	500 g
Products per master (outer) case	120 pc(s)	120 pc(s)
Certificatesidentical
Compliance certificatesKnown for one	RoHS	Unknown — not stated by the source
Packaging contentidentical
Quantity per packKnown for one	1 pc(s)	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
