Product comparison · 2 network switches

StarTech.com Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots vs StarTech.com Industrial 8 Port Gigabit Ethernet Switch - Hardened Compact GbE Layer/L2 Managed Switch - Rugged Network Switch Din Rail/Wall Mountable RJ45/LAN S

Add a product
  • 47specifications compared
  • 12differ
  • 35identical
  • 24known for one product only

Key differences

  • LED indicators
    • Activity, Link
    • Activity, Link, Power
  • Power over Ethernet (PoE)
    • Yes
    • No
  • Width
    • 178 mm
    • 148 mm
  • Weight
    • 618 g
    • 490 g
  • Package width
    • 172 mm
    • 170 mm
  • Package height
    • 91 mm
    • 90 mm
  • Package weight
    • 900 g
    • 1 kg
  • Certification
    • CE, FCC, RoHS
    • CE, FCC, RoHS, TAA

Side by side

Differences highlightedShow differences only
71 specifications
A

StarTech.com

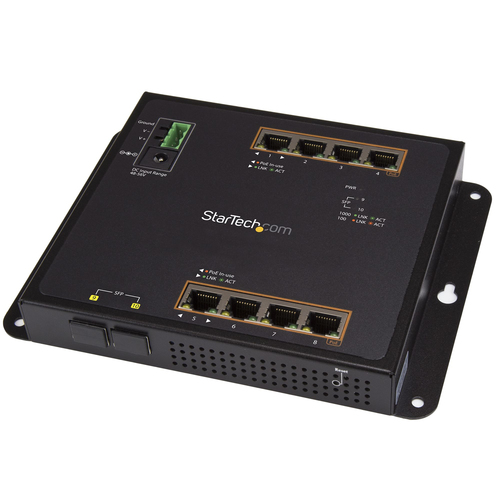

Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots

Model IES101GP2SFW

View product
B

StarTech.com

Industrial 8 Port Gigabit Ethernet Switch - Hardened Compact GbE Layer/L2 Managed Switch - Rugged Network Switch Din Rail/Wall Mountable RJ45/LAN S

Model IES81GW

View product
Management featuresidentical
Switch typeManagedManaged
Switch layerL2L2
Quality of Service (QoS) supportKnown for oneYes
Ports & interfacesidentical
Basic switching RJ-45 Ethernet ports quantity88
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity00
Installed SFP+ modules quantity00
Power connectorKnown for oneDC-in jack
SFP module slots quantityKnown for one2
Network1 differ
Networking standardsDiffersIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3zIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technologyKnown for one10BASE-T, 100BASE-TX, 1000BASE-TX
Full duplexYesYes
Auto MDI/MDI-XYesYes
Flow control supportYesYes
Link aggregationYesYes
Spanning tree protocolYesYes
Virtual LAN featuresTagged VLANTagged VLAN
10G supportKnown for oneNo
Data transmissionidentical
Store-and-forwardYesYes
Jumbo frames supportKnown for oneYes
Jumbo framesKnown for one9000
Securityidentical
Access Control List (ACL)YesYes
Protocolsidentical
Management protocolsKnown for oneIPv4, IPv6
Design1 differ
Rack mountingNoNo
Product colourBlackBlack
Housing materialSteelSteel
LED indicatorsDiffersActivity, LinkActivity, Link, Power
International Protection (IP) codeIP30IP30
Wall mountableYesYes
Performanceidentical
Buffer size512 KB512 KB
Maximum cable length100 m100 m
Maximum data transfer rate2000 Mbit/s2000 Mbit/s
Plug and PlayKnown for oneYes
Mean time between failures (MTBF)100000 h100000 h
Poweridentical
Power supply includedKnown for oneYes
DC input voltageKnown for one12 - 48 V
Output voltageKnown for one12 V
Output currentKnown for one1.5 A
Power plug typeType MType M
Input currentKnown for one1 A
Input voltageKnown for one12 - 48 V
Power over Ethernet (PoE)1 differ
Power over Ethernet (PoE)DiffersYesNo
Power over Ethernet plus (PoE+) ports quantityKnown for one8
Power over Ethernet (PoE) power per portKnown for one30 W
Total Power over Ethernet (PoE) budgetKnown for one200 W
Other featuresidentical
Terminal block portYesYes
Operational conditionsidentical
Operating temperature (T-T)-40 - 75 °C-40 - 75 °C
Storage temperature (T-T)-40 - 90 °C-40 - 90 °C
Operating relative humidity (H-H)5 - 95%5 - 95%
Weight & dimensions2 differ
WidthDiffers178 mm148 mm
Depth134 mm134 mm
Height25 mm25 mm
WeightDiffers618 g490 g
Packaging contentidentical
Quick start guideYesYes
Packaging data3 differ
AC adapter includedKnown for oneYes
DIN rail includedKnown for oneYes
Dust cap includedKnown for oneYes
Pinlock includedKnown for oneYes
Screws includedKnown for oneYes
Terminal block includedYesYes
Washers includedKnown for oneYes
Package widthDiffers172 mm170 mm
Package depth300 mm300 mm
Package heightDiffers91 mm90 mm
Package weightDiffers900 g1 kg
Certificates1 differ
CertificationDiffersCE, FCC, RoHSCE, FCC, RoHS, TAA
Logistics data3 differ
Master (outer) case widthDiffers325 mm480 mm
Master (outer) case lengthDiffers370 mm420 mm
Harmonized System (HS) code8517699085176990
Master (outer) case heightDiffers470 mm365 mm
Products per master (outer) case10 pc(s)10 pc(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
