Product comparison · 2 network switches

SilverNet SIL 716E8C4M vs SilverNet SIL 73408MP-10G

Add a product
  • 93specifications compared
  • 17differ
  • 76identical
  • 6known for one product only

Key differences

  • Basic switching RJ-45 Ethernet ports quantity
    • 24
    • 8
  • Fast Ethernet (copper) ports quantity
    • 24
    • 8
  • Gigabit Ethernet (copper) ports quantity
    • 24
    • 8
  • Installed SFP modules quantity
    • 8
    • 4
  • Rack mounting
    • Yes
    • No
  • Power consumption (max)
    • 24 W
    • 16 W
  • Heat dissipation
    • 75 BTU/h
    • 34 BTU/h
  • Width
    • 400 mm
    • 138 mm

Side by side

Differences highlightedShow differences only
99 specifications
A

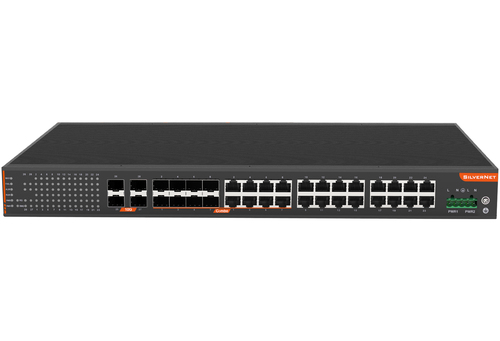

SilverNet

SIL 716E8C4MView product
B

SilverNet

SIL 73408MP-10GView product
Management features1 differ
Switch typeManagedManaged
Switch layerL3L3
Quality of Service (QoS) supportYesYes
Cloud-managedYesYes
Web-based managementYesYes
ARP inspectionYesYes
Configuring Location Settings (CLI)YesYes
Traffic classificationYesYes
Traffic shapingYesYes
System event logYesYes
MIB supportDiffersEthernet-Like, MIB-II, MIB-, Bridge MIB, Bridge MIB Extensions, RMON MIB(1,2,3&9 Groups), RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIBEthernet-like MIB, MIB-II, MIB-I, Bridge MIB, Bridge MIB extensions, RMON MIB(1,2,3 & 9 groups, RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB
Ports & interfaces4 differ
Basic switching RJ-45 Ethernet ports quantityDiffers248
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantityDiffers248
Gigabit Ethernet (copper) ports quantityDiffers248
Installed SFP modules quantityDiffers84
Installed SFP+ modules quantity44
Combo SFP ports quantityKnown for one8
Power connectorTerminal block (2-pin)Terminal block (2-pin)
Console portKnown for oneRJ-45
Network1 differ
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3zIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYesYes
Copper ethernet cabling technology10BASE-TX, 100BASE-TX, 1000BASE-TX10BASE-TX, 100BASE-TX, 1000BASE-TX
Port mirroringYesYes
Full duplexYesYes
Half duplexYesYes
IP routingYesYes
Policy-based routingYesYes
Active link detectionYesYes
Auto MDI/MDI-XYesYes
Auto-negotiationYesYes
Broadcast storm controlYesYes
Flow control supportYesYes
Link aggregationYesYes
Rate limitingYesYes
Spanning tree protocolYesYes
VLAN supportYesYes
Virtual LAN featuresDiffersMulticast VLAN, Multiple VXLAN (MUX VLAN), Stacked VLAN, Tagged VLAN, Voice VLANMulticast VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Stacked VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Number of VLANs256256
MAC address auto-learning supportedKnown for oneYes
Data transmissionidentical
MAC address table16000 entries16000 entries
Switching capacity128 Gbit/s128 Gbit/s
Latency (10-100 Mbps)7 µs7 µs
Latency (1 Gbps)7 µs7 µs
Latency (10 Gbps)7 µs7 µs
Static routeYesYes
Jumbo frames supportYesYes
Jumbo frames1000010000
Packet buffer memory12 MB12 MB
Store-and-forwardKnown for oneYes
Security1 differ
DHCP featuresDHCP client, DHCP server, DHCP snoopingDHCP client, DHCP server, DHCP snooping
Access Control List (ACL)YesYes
IGMP entries40964096
IGMP snoopingYesYes
Authentication typeIEEE 802.1x, RADIUS, TACACS+IEEE 802.1x, RADIUS, TACACS+
BPDU filtering/protectionYesYes
Loop protectionYesYes
MAC address filteringYesYes
Password protectionYesYes
Queue scheduling algorithmsPriority queuing (PQ), Strict Priority Queue (SPQ), WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR)Priority queuing (PQ), Strict Priority Queue (SPQ), WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR)
SSH/SSL supportYesYes
Security algorithmsDiffers802.1x RADIUS, HTTPS, SNMPv3, SSL/TLS802.1x RADIUS, HTTPS, SSL/TLS
Multicast featuresidentical
Multicast supportYesYes
Protocolsidentical
Management protocolsARP, Flow Control, DDM, DHCP Server/Client, IPv4/IPv6, LLDP, LLDP-MED, UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, TelnetARP, Flow Control, DDM, DHCP Server/Client, IPv4/IPv6, LLDP, LLDP-MED, UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet
GARP VLAN Registration Protocol (GVRP)YesYes
Routing protocolsOSPFv2, RIP-1, RIP-2, VRRPOSPFv2, RIP-1, RIP-2, VRRP
Design1 differ
Rack mountingDiffersYesNo
StackableYesYes
Housing materialAluminiumAluminium
LED indicatorsAlarm, Link, Power, Ring, SpeedAlarm, Link, Power, Ring, Speed
International Protection (IP) codeIP40IP40
Electromagnetic compatibilityFCC Part15 Class A, CE-EMC/LVD, RoHS, EN61000-4-2 (ESD):LEVEL 4, IEC 6100-4-2 (EFT):LEVEL 4, IEC 6100-4-2 (Surge): LEVEL 4, IEC 6100-4-2 (CS)：LEVEL 3, IEC 61000-4-2(PFMP) : LEVEL 5, EN61000-4-3 (RS):LEVEL 4FCC Part15 Class A, CE-EMC/LVD, RoHS, EN61000-4-2 (ESD):LEVEL 4, IEC 6100-4-2 (EFT):LEVEL 4, IEC 6100-4-2 (Surge): LEVEL 4, IEC 6100-4-2 (CS)：LEVEL 3, IEC 61000-4-2(PFMP) : LEVEL 5, EN61000-4-3 (RS):LEVEL 4
Performanceidentical
Mean time between failures (MTBF)250000 h250000 h
Power1 differ
Power sourceAC/DCAC/DC
Power supply includedYesYes
Redundant power supply (RPS) supportYesYes
Number of power supply units11
AC input voltage110 - 240 V110 - 240 V
DC input voltage9 - 56 V9 - 56 V
Power consumption (max)Differs24 W16 W
Power protection featuresOver current, Reverse polarityOver current, Reverse polarity
Power over Ethernet (PoE)identical
Power over Ethernet (PoE)NoNo
Other featuresidentical
Warranty periodKnown for one5 year(s)
Operational conditions1 differ
Operating temperature (T-T)-40 - 75 °C-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C-40 - 85 °C
Operating relative humidity (H-H)5 - 90%5 - 90%
Heat dissipationDiffers75 BTU/h34 BTU/h
Weight & dimensions4 differ
WidthDiffers400 mm138 mm
DepthDiffers300 mm108 mm
HeightDiffers45 mm49 mm
WeightDiffers2.8 kg680 g
Packaging contentidentical
Rack mount kitKnown for oneYes
Packaging data3 differ
Package typeBoxBox
Package widthDiffers393 mm170 mm
Package depthDiffers495 mm230 mm
Package height80 mm80 mm
Package weightDiffers3.3 kg945 g
Certificatesidentical
CertificationIEC60068-2-27 IEC60068-2-6 IEC60068-2-31 EN 60950-1 UL 60950-1 CSA C22.2 No.60950-1 UL 508IEC60068-2-27 IEC60068-2-6 IEC60068-2-31 EN 60950-1 UL 60950-1 CSA C22.2 No.60950-1 UL 508
Logistics dataidentical
UK Trade Tariff code8517620085176200

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
