Product comparison · 2 network switches

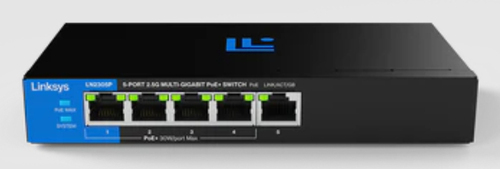

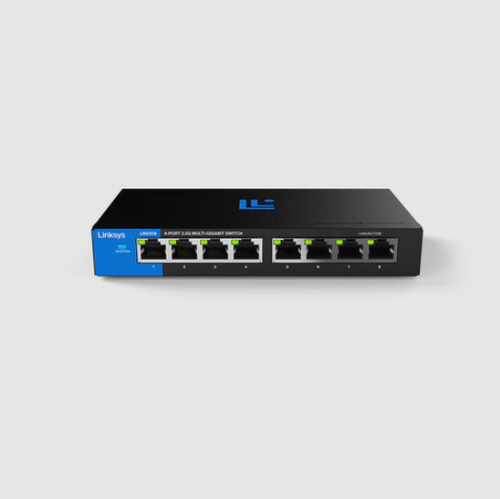

Linksys LN2305P-KE network switch Unmanaged L2 vs Linksys LN2308-KE network switch Unmanaged L2

Key differences

Basic switching RJ-45 Ethernet ports quantity
- LN2305P-KE network switch Unmanaged L2:5
- LN2308-KE network switch Unmanaged L2:8
Power over Ethernet (PoE)
- LN2305P-KE network switch Unmanaged L2:Yes
- LN2308-KE network switch Unmanaged L2:No

Differences highlightedShow differences only

Comparison of LN2305P-KE, LN2308-KE
32 specifications	A Linksys LN2305P-KE network switch Unmanaged L2 Model LN2305P-KE View product	B Linksys LN2308-KE network switch Unmanaged L2 Model LN2308-KE View product
Management featuresidentical
Switch type	Unmanaged	Unmanaged
Switch layer	L2	L2
Quality of Service (QoS) support	Yes	Yes
Ports & interfaces1 differ
Basic switching RJ-45 Ethernet ports quantityDiffers	5	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)	2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity	0	0
Installed SFP+ modules quantity	0	0
Network1 differ
Networking standardsDiffers	IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3at	IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz
10G support	No	No
Cable types supported	Cat5e	Cat5e
Full duplex	Yes	Yes
Data transmissionidentical
MAC address table	4000 entries	4000 entries
Switching capacity	25 Gbit/s	25 Gbit/s
Jumbo frames support	Yes	Yes
Jumbo frames	12	12
Designidentical
Rack mounting	Yes	Yes
Stackable	No	No
Form factor	Desktop	Desktop
Product colour	Black, Blue	Black, Blue
LED indicators	Yes	Yes
Performanceidentical
Fanless	Yes	Yes
Poweridentical
Power source	DC	DC
Power supply included	Yes	Yes
DC input voltage	5 V	5 V
Input current	2 A	2 A
Power over Ethernet (PoE)1 differ
Power over Ethernet (PoE)Differs	Yes	No
Weight & dimensionsidentical
Width	90 mm	90 mm
Depth	168 mm	168 mm
Height	26 mm	26 mm
Weight	358 g	358 g
Packaging contentidentical
Quick start guide	Yes	Yes
Certificatesidentical
Certification	FCC/ICC	FCC/ICC

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
