Product comparison · 2 network switches

LG ES-2026 network switch Managed L2 Black vs LG ES-2026P network switch Managed L2 Power over Ethernet (PoE) Black

Add a product
  • 57specifications compared
  • 5differ
  • 52identical
  • 0known for one product only

Key differences

  • Power consumption (typical)
    • 17 W
    • 245 W
  • Power over Ethernet (PoE)
    • No
    • Yes
  • Dimensions (WxDxH)
    • 440 x 210 x 44 mm
    • 440 x 280 x 44 mm
  • Weight
    • 1.7 kg
    • 3.2 kg

Side by side

Differences highlightedShow differences only
57 specifications
A

LG

ES-2026 network switch Managed L2 Black

Model ES-2026

View product
B

LG

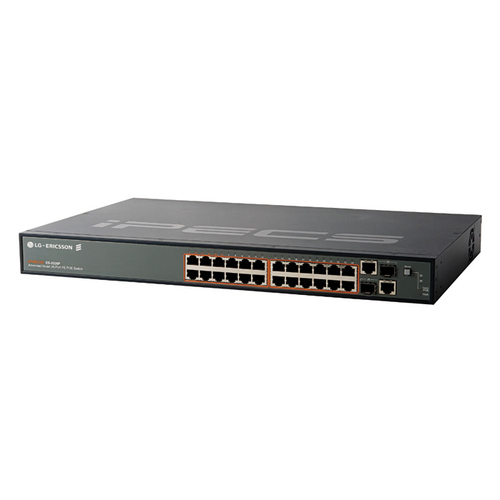

ES-2026P network switch Managed L2 Power over Ethernet (PoE) Black

Model ES-2026P

View product
Management featuresidentical
Switch typeManagedManaged
Switch layerL2L2
Quality of Service (QoS) supportYesYes
Web-based managementYesYes
System event logYesYes
MIB supportLLDPLLDP
Ports & interfacesidentical
Basic switching RJ-45 Ethernet ports quantity2424
Combo SFP ports quantity22
SFP/SFP+ slots quantity22
Network1 differ
Networking standardsDiffersIEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3adIEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at
10G supportNoNo
Copper ethernet cabling technology1000BASE-T, 100BASE-TX1000BASE-T, 100BASE-TX
Port mirroringYesYes
Full duplexYesYes
Auto MDI/MDI-XYesYes
Broadcast storm controlYesYes
Link aggregationYesYes
Rate limitingYesYes
Spanning tree protocolYesYes
Number of VLANs40964096
Optical fiberidentical
Fiber ethernet cabling technology1000BASE‑LH, 1000BASE‑LX, 1000BASE‑SX, 100BASE-FX1000BASE‑LH, 1000BASE‑LX, 1000BASE‑SX, 100BASE-FX
Data transmissionidentical
MAC address table8000 entries8000 entries
Supported data transfer rates10/100/1000 Mbps10/100/1000 Mbps
Switching capacity8.8 Gbit/s8.8 Gbit/s
Throughput6.6 Mpps6.6 Mpps
Number of queues44
Maximum data transfer rate1 Gbit/s1 Gbit/s
Jumbo frames supportYesYes
Securityidentical
DHCP featuresDHCP clientDHCP client
Access Control List (ACL)YesYes
IGMP snoopingYesYes
Security algorithms802.1x RADIUS802.1x RADIUS
Multicast featuresidentical
Multicast supportYesYes
Protocolsidentical
Management protocolsSNMP, RMONv1, SNTP, HTTP, HTTPSSNMP, RMONv1, SNTP, HTTP, HTTPS
Supported network protocolsRSTP, STP, MSTP, IPv4, DHCP, TCP/IPRSTP, STP, MSTP, IPv4, DHCP, TCP/IP
Designidentical
Rack mountingYesYes
Product colourBlackBlack
LED indicatorsLANLAN
Performanceidentical
Internal memory128 MB128 MB
Flash memory16 MB16 MB
Firmware upgradeableYesYes
Power1 differ
Input voltage100 - 240 V100 - 240 V
Power consumption (typical)Differs17 W245 W
Power over Ethernet (PoE)1 differ
Power over Ethernet (PoE)DiffersNoYes
Other features1 differ
Dimensions (WxDxH)Differs440 x 210 x 44 mm440 x 280 x 44 mm
Authentication methodTACACS+, RADIUS, IPTACACS+, RADIUS, IP
Input frequency50/60 Hz50/60 Hz
Networking featuresFast Ethernet, Gigabit EthernetFast Ethernet, Gigabit Ethernet
Power LEDYesYes
Connectivity LEDsYesYes
Operational conditionsidentical
Operating temperature (T-T)0 - 50 °C0 - 50 °C
Storage temperature (T-T)-40 - 70 °C-40 - 70 °C
Operating relative humidity (H-H)10 - 90%10 - 90%
Storage relative humidity (H-H)10 - 90%10 - 90%
Operating altitude0 - 4000 m0 - 4000 m
Weight & dimensions1 differ
WeightDiffers1.7 kg3.2 kg
Certificatesidentical
CertificationFCC A, CE, UL, CB WEEE, RoHS, PFOSFCC A, CE, UL, CB WEEE, RoHS, PFOS

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
