Product comparison · 2 network switches

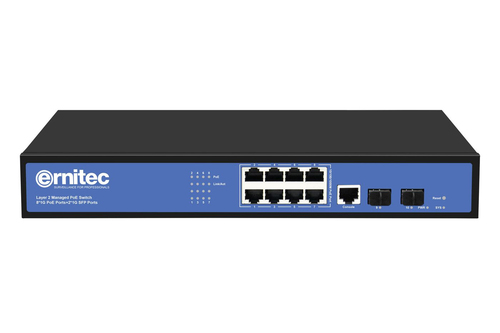

Ernitec ELECTRA-M08-1GB-150W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) vs Ernitec ELECTRA-M16-1GB-285W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

51specifications compared
14differ
37identical
1known for one product only

Key differences

Basic switching RJ-45 Ethernet ports quantity
- ELECTRA-M08-1GB-150W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):8
- ELECTRA-M16-1GB-285W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):16
Number of management ports
- ELECTRA-M08-1GB-150W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):10 pc(s)
- ELECTRA-M16-1GB-285W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):20 pc(s)
Switching capacity
- ELECTRA-M08-1GB-150W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):20 Gbit/s
- ELECTRA-M16-1GB-285W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):40 Gbit/s
Forwarding rate
- ELECTRA-M08-1GB-150W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):14.88 Mpps
- ELECTRA-M16-1GB-285W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):29.76 Mpps
Power over Ethernet (PoE) ports quantity
- ELECTRA-M08-1GB-150W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):8
- ELECTRA-M16-1GB-285W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):16
Total Power over Ethernet (PoE) budget
- ELECTRA-M08-1GB-150W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):150 W
- ELECTRA-M16-1GB-285W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):285 W
Width
- ELECTRA-M08-1GB-150W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):366 mm
- ELECTRA-M16-1GB-285W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):500 mm
Depth
- ELECTRA-M08-1GB-150W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):312 mm
- ELECTRA-M16-1GB-285W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE):290 mm

Side by side

Differences highlightedShow differences only

Comparison of ELECTRA-M08-1GB-150W, ELECTRA-M16-1GB-285W
52 specifications	A Ernitec ELECTRA-M08-1GB-150W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Model ELECTRA-M08-1GB-150W View product	B Ernitec ELECTRA-M16-1GB-285W network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Model ELECTRA-M16-1GB-285W View product
Management featuresidentical
Switch type	Managed	Managed
Switch layer	L2/L2+	L2/L2+
Web-based management	Yes	Yes
Ports & interfaces2 differ
Basic switching RJ-45 Ethernet ports quantityDiffers	8	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2	2
Fiber uplink ports quantity	2	2
Number of management portsDiffers	10 pc(s)	20 pc(s)
Console port	RJ-45	RJ-45
Power connector	AC/DC	AC/DC
Networkidentical
Networking standards	IEEE 802.3u	IEEE 802.3u
Port mirroring	Yes	Yes
IP routing	Yes	Yes
VLAN support	Yes	Yes
Number of VLANs	256	256
Data transmission2 differ
MAC address table	8000 entries	8000 entries
Switching capacityDiffers	20 Gbit/s	40 Gbit/s
Forwarding rateDiffers	14.88 Mpps	29.76 Mpps
Store-and-forward	Yes	Yes
Static route	Yes	Yes
Jumbo frames support	Yes	Yes
Designidentical
Rack mounting	Yes	Yes
Housing material	Metal	Metal
Reset button	Yes	Yes
LED indicators	PoE	PoE
On/off switch	Yes	Yes
Performanceidentical
Firmware upgradeable	Yes	Yes
Telnet	Yes	Yes
Fanless	Yes	Yes
Poweridentical
Surge protection	Yes	Yes
Surge protection voltage	6 kV	6 kV
Power over Ethernet (PoE)2 differ
Power over Ethernet (PoE)	Yes	Yes
Power over Ethernet (PoE) type supported	PoE+	PoE+
Power over Ethernet (PoE) ports quantityDiffers	8	16
Power over Ethernet (PoE) power per port	15.4 W	15.4 W
Total Power over Ethernet (PoE) budgetDiffers	150 W	285 W
Other featuresidentical
Ethernet LAN (RJ-45) portsKnown for one	Unknown — not stated by the source	2
Material	Metal	Metal
Warranty period	5 year(s)	5 year(s)
Operational conditionsidentical
Operating temperature (T-T)	0 - 40 °C	0 - 40 °C
Weight & dimensions4 differ
WidthDiffers	366 mm	500 mm
DepthDiffers	312 mm	290 mm
HeightDiffers	71 mm	85 mm
WeightDiffers	1.65 kg	2.78 kg
Packaging contentidentical
Manual	Yes	Yes
Rack mount kit	Yes	Yes
Packaging data4 differ
Mounting brackets included	Yes	Yes
Screws included	Yes	Yes
Package widthDiffers	366 mm	500 mm
Package depthDiffers	312 mm	290 mm
Package heightDiffers	71 mm	85 mm
Package weightDiffers	2.24 kg	3.44 kg

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
