Product comparison · 2 network switches

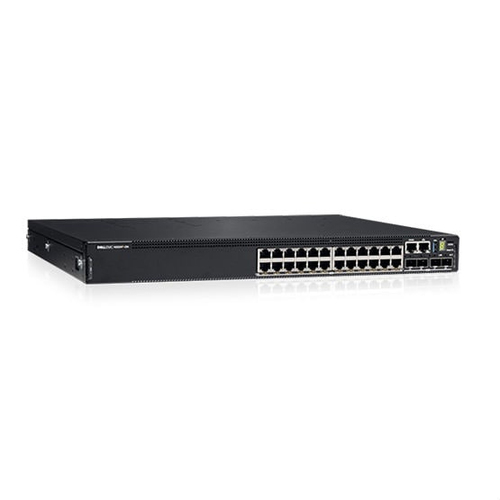

Dell N-Series N3224P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black vs Dell N-Series N3248T Managed L2 Gigabit Ethernet (10/100/1000) Black

39specifications compared
2differ
37identical
9known for one product only

Key differences

Basic switching RJ-45 Ethernet ports quantity
- N-Series N3224P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black:24
- N-Series N3248T Managed L2 Gigabit Ethernet (10/100/1000) Black:48
Power over Ethernet (PoE)
- N-Series N3224P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black:Yes
- N-Series N3248T Managed L2 Gigabit Ethernet (10/100/1000) Black:No

Side by side

Differences highlightedShow differences only

Comparison of N3224P, N3248T
48 specifications	A Dell N-Series N3224P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black Model N3224P View product	B Dell N-Series N3248T Managed L2 Gigabit Ethernet (10/100/1000) Black Model N3248T View product
Management featuresidentical
Switch type	Managed	Managed
Switch layer	L2	L2
Quality of Service (QoS) support	Yes	Yes
Ports & interfaces1 differ
Basic switching RJ-45 Ethernet ports quantityDiffers	24	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4	4
Fiber optic connector	SFP+	SFP+
Console port	Micro-USB	Micro-USB
Power connectorKnown for one	Unknown — not stated by the source	AC-in jack
QSFP28 ports quantityKnown for one	2	Unknown — not stated by the source
Networkidentical
10G support	Yes	Yes
Port mirroring	Yes	Yes
Full duplex	Yes	Yes
Policy-based routing	Yes	Yes
Auto MDI/MDI-X	Yes	Yes
Auto-negotiation	Yes	Yes
Auto-sensing	Yes	Yes
Flow control support	Yes	Yes
Link aggregation	Yes	Yes
Spanning tree protocol	Yes	Yes
Networking standardsKnown for one	IEEE 802.3at	Unknown — not stated by the source
Designidentical
Rack mounting	Yes	Yes
Stackable	Yes	Yes
Product colour	Black	Black
Number of fansKnown for one	Unknown — not stated by the source	3 fan(s)
Form factorKnown for one	1U	Unknown — not stated by the source
Poweridentical
Power source	AC	AC
Power supply included	Yes	Yes
AC input voltage	100 - 240 V	100 - 240 V
AC input frequency	50 - 60 Hz	50 - 60 Hz
Input currentKnown for one	Unknown — not stated by the source	2.22 A
Output voltage	125 V	125 V
Output current	15 A	15 A
Power consumption (typical)Known for one	Unknown — not stated by the source	550 W
Power cable length	3 m	3 m
Power cable connector 1	NEMA 5-15P	NEMA 5-15P
Power cable connector 2	C13 coupler	C13 coupler
Power over Ethernet (PoE)1 differ
Power over Ethernet (PoE)Differs	Yes	No
Operational conditionsidentical
Operating temperature (T-T)	0 - 45 °C	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%	5 - 95%
Storage relative humidity (H-H)	5 - 95%	5 - 95%
Heat dissipationKnown for one	Unknown — not stated by the source	349.06 BTU/h
Weight & dimensionsidentical
Width	434 mm	434 mm
Depth	400 mm	400 mm
Height	43.5 mm	43.5 mm
WeightKnown for one	Unknown — not stated by the source	6.99 kg
Packaging contentidentical
Cables included	AC	AC

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
